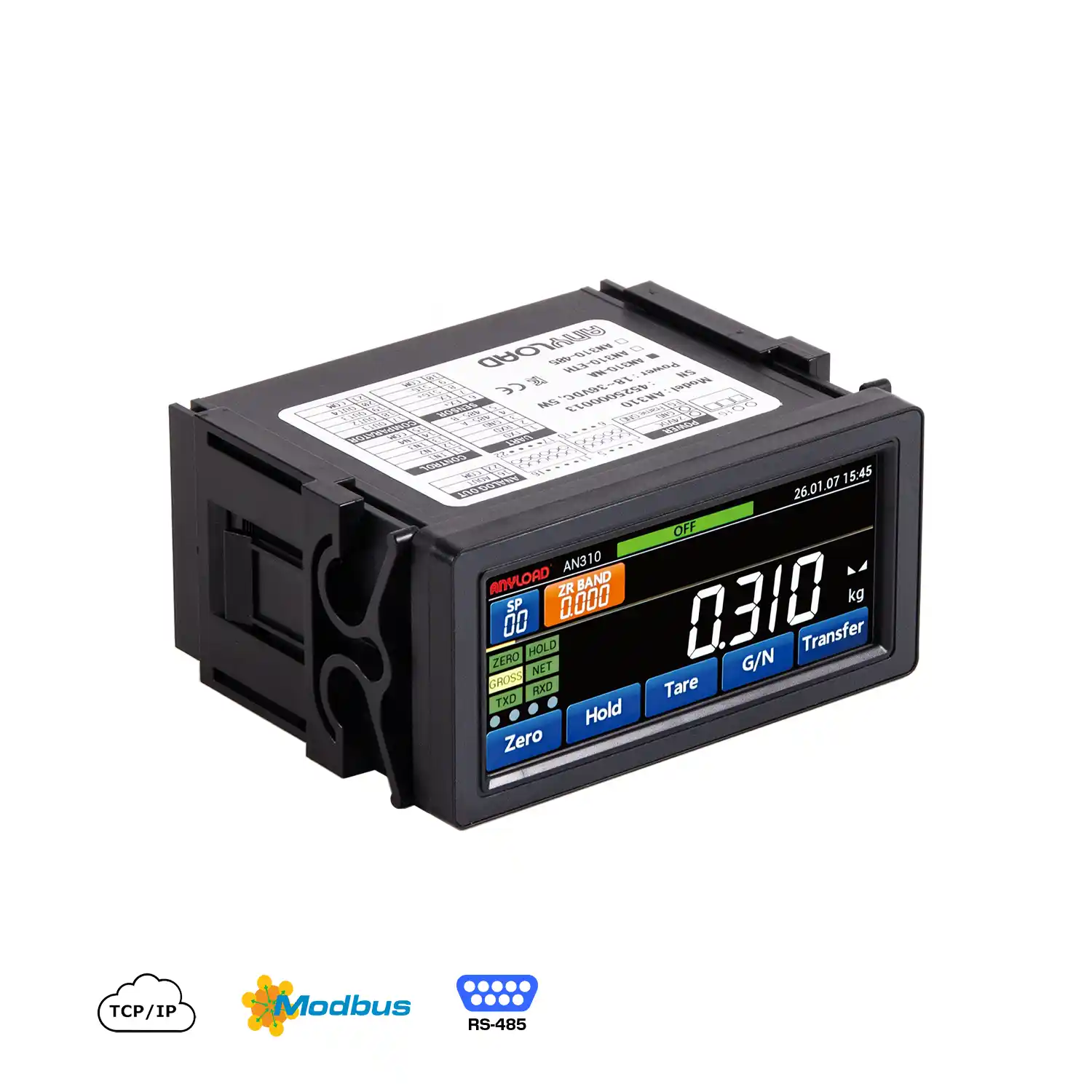

AN310 Panel Mount Indicator
The ANYLOAD AN310 is a panel mount weighing indicator featuring a 3.46″ color IPS touch screen display, designed to deliver precise, real-time weight data with a modern, ergonomic interface. Its ultra-high-speed 5kHz A/D sample rate and internal resolution of 16,000,000 counts provide fast, accurate weight capture even in dynamic weighing scenarios, while a display resolution of up to 99,999,999 ensures clear readability across a wide range of measurement units including kg, lb, N, and kg*m.
Built with an ABS enclosure and rated IP40, the AN310 is engineered for reliable performance in industrial environments, with an operating temperature range of -4°F to 140°F (-20°C to 60°C). It supports an analog signal input range of 0-39 mV and accepts up to 8 load cells at 350 Ω excitation, making it adaptable to a variety of scale platform configurations. Communication flexibility is a core strength of this indicator, with RS-232 as standard and optional RS-485 (Modbus-RTU) or Ethernet (TCP/IP & Modbus-TCP) connectivity, plus an optional analog output (voltage or 4-20mA) for seamless integration into PLCs and automation systems.
The AN310 also includes 4 digital inputs (photocoupler) and 4 digital outputs (PhotoMOS relay) for flexible external control, along with password-protected calibration access and 10-point calibration capability supporting both real-load and digital calibration methods. These features make it well suited for industrial weighing systems, process control and automation, force measurement and material testing, robotics and motion feedback systems, batching and filling lines, and machine monitoring applications.
If your operation requires a panel mount indicator with advanced connectivity and touch screen control, ANYLOAD can assist with system selection and integration. Our team works with system integrators and industrial facilities to develop weighing and process control solutions tailored to specific communication protocols, control requirements, and application needs.
Características
- Brilliant 3.46” color IPS touch display delivers vivide visuals and responsive control for industrial environments
- Ultra-high-speed 5kHz ADC enables fast, accurate weight capture, ideal for dynamic weighing scenarios
- Internal resolution of 16 million counts ensures exceptional precision and stability in measurement
- Simultaneous multi-output support allows seamless integration with multiple systems and protocols
- Digital communication options include RS-232, RS-485 (Modbus), Ethernet TCP/IP, and Ethernet Modbus TCP
- Analog output is also available for voltage or current-based integration
- 4 digital inputs (photocoupler) and 4 digital outputs (PhotoMOS relay) provide flexible external control and system interaction
- Password-protected calibration access safeguards sensitive setup parameters and ensures compliance
- 10-point calibration capability provides precise linearity across the full measuring range
- Dual calibration modes support both real-load an digital methods for flexible installation and maintenance
- Intuitive navigation menu reduces setup time and enhances usability with a modern, ergonomic interface
Aplicaciones
- Industrial weighing systems
- Process control and automation
- Force measurement and material testing
- Robotics and motion feedback systems
- Batching, filling, and packaging lines
- Machine monitoring and diagnostics via PLC integration
Especificaciones
| Excitation Voltage | 5 VDC, up to 8 x 350 Ω |
|---|---|
| Power Supply & Consumption | 18 – 36 VDC; 5 W |
| No linealidad | 0.01 % FS |
| A/D Sample Rate | up to 5000Hz |
| Clasificación IP | IP40 |
| Material del recinto | ABS |
| Temperatura de funcionamiento | -4°F to 140°F / -20°C to 60°C |
| Humedad | 85 % (non-condensing) |
| Analog Signal Input Range | 0 – 39 mV (-19.5 – 19.5 mV) |
| Unit Of Measurement | g, kg, ton, lb, N, kN, kg*m, N*m, lb*in, lb*ft |
| Analogue Output (Optional) | 0 – 10 VDC; 0 – 5 VDC; -5 – 5 VDC; -10 – 10 VDC; 4 – 20 mA |
| Tipo de pantalla | 3.46” color IPS LCD with touch screen | Resolución | Internal: 16,000,000 counts; Display: 99,999,999 |
| Communication Port | RS-232 (default); RS-485 (Modbus-RTU); Ethernet (TCP/IP&Modbus-TCP) |
