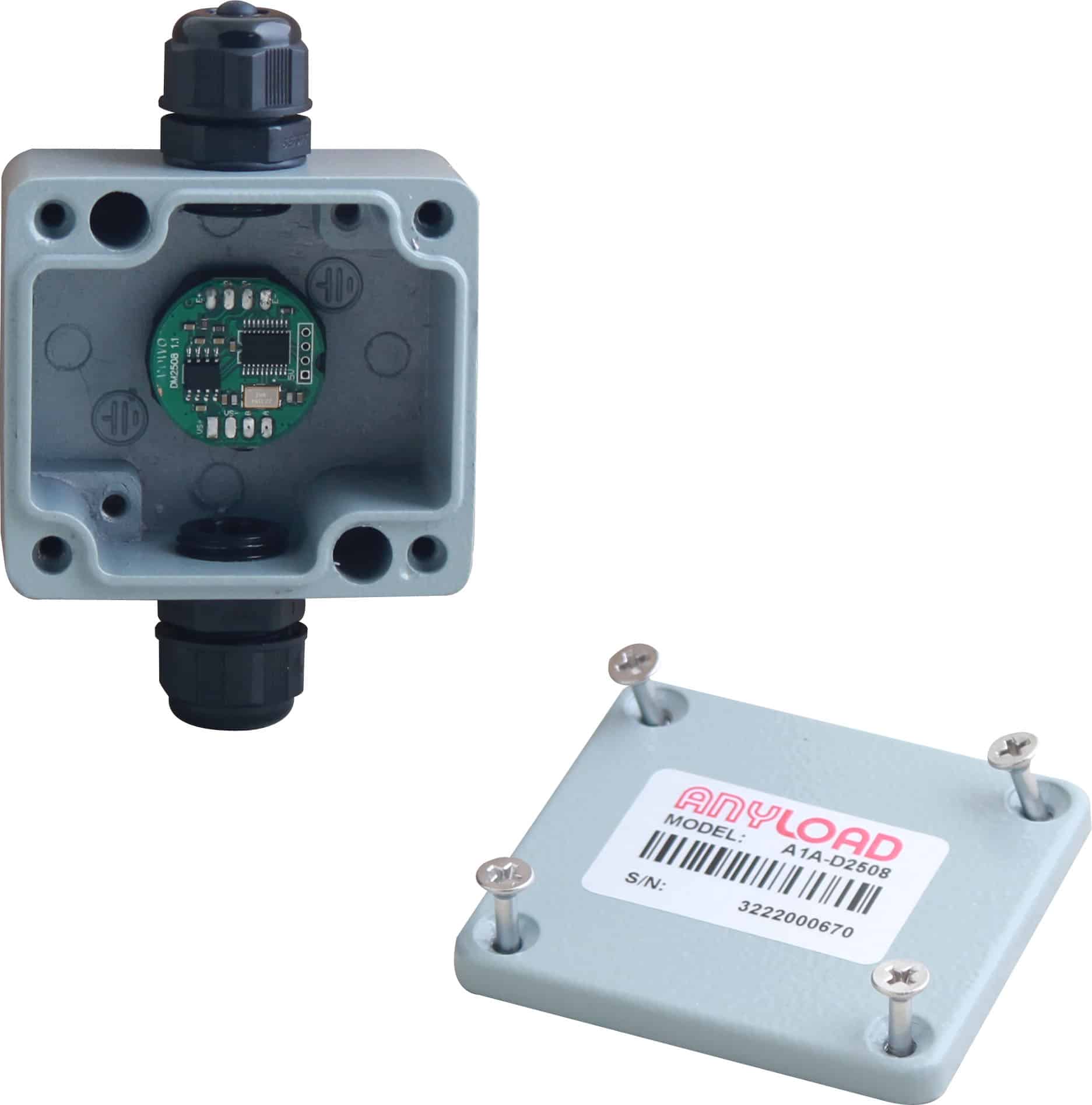

A1A-D2508

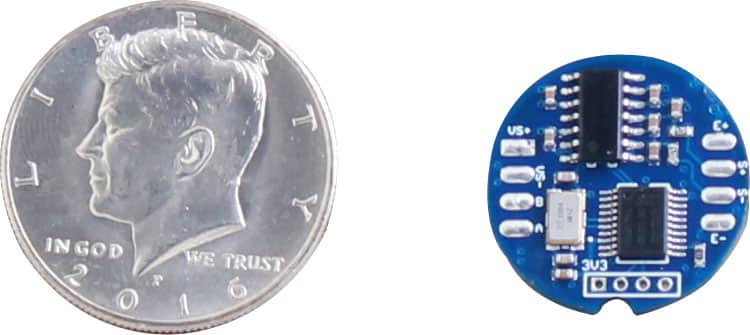

DGB-DM2507

A1A D25 Load Cell Amplifier

ANYLOAD A1A D25 strain gage amplifiers provide load cell and transducer signal conditioning.  The A1A series strain gage amplifiers are DC-powered amplifiers that can drive 1 load cell connected directly. They can also drive several load cells up to 4 x 350Ω load cells or 8 X 700Ω load cells through a junction box. Housed in an aluminum casting enclosure, the A1A amplifiers have 2 through holes for easy installation and a wide output signal of 0V-10V or 4mA-20mA. The A1A-22B amplifier is equipped with compatibility in most models of I/O Link of Balluff.

  • Small volume and enable to mount inside of load cell
  • One input port, can connect directly to 1 x 350 Ω load cell, or max 4 x 350 Ω (or higher resistance) load cells through a junction box
  • 24 digit high accuracy converter & high-speed microprocessor
  • Internal digital filter and strong anti-interference ability
  • Support 9 points multi-section nonlinear calibration
  • Applied to all kinds of strain gauge bridge-type load cell, such as, tension, compression, torque and so on.
Clear
Product Enquiry
Specifications A1A-D25
Load Cell Type All strain gage types
Power Supply 6~24 V DC
Input Range 0.8~3.9 mV/V
Output Signal RS232/RS485
Communication protocol MODBUS
Resolution >1000000
Temperature Coefficient better than 100ppm
Operating temperature range -30 to 80°C/ -22 to 176°F
Excitation voltage to load cell 5V

pdf- Download data sheet for A1A-D25

pdf- Download manual

pdf- A1A
