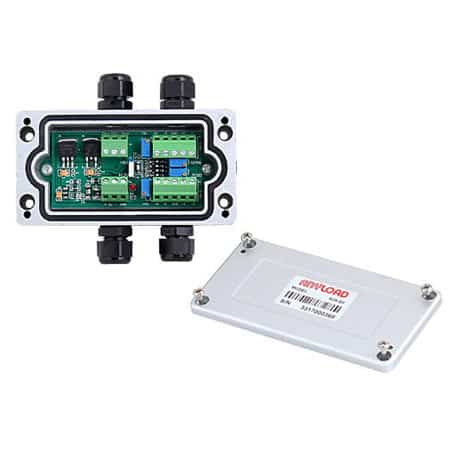

ANYLOAD | A2A-D2 Load Cell Amplifier, Aluminum Casting, IP66

A2A & A2A-D2 Load Cell Amplifiers

ANYLOAD A2A series strain gage amplifiers provide load cell and transducer signal conditioning.  The A2A strain gage amplifiers are DC powered amplifiers that can drive up to 2 x 350Ω load cells connected directly. It can also drive several load cells up to 4 x 350Ω load cells or 8 x 700Ω load cells through a junction box. Equipped with individual adjustable resistors, the A2A strain gage amplifiers are watertight with an aluminum casting enclosure and has a wide input signal from 0±36mV and output signal of 0±10V or 4-20mA. The A2A-D2 amplifier is now equipped with two options of excitation voltages (5VDC or 12VDC) to comply the desired requirements in various applications.

Clear
Product Enquiry
Specifications A2A A2A-D2
Load Cell Type All strain gage types
Capacity up to 2x350Ω directly connected or 4x350Ω or 8x700Ω through a junction box up to 2x350Ω directly connected or 4x350Ω or 8x700Ω or 8x350Ω through a junction box
Power Supply 24VDC or 95-250VAC 24VDC
Input Range 0-30mV 0±36mV
Output Signal (Voltage) 0-10V 0±10V
Output Signal (Current) 4-20mA
Excitation Voltage to load cell 12V 5V or 12V
Enclosure Material / installation Aluminum casting / Single Point fixing/clamp fixing Aluminum casting / Preinstalled GORE breather vent with capacitive stainless steel screws
Operating Temperature Range -10 to 50°C or 14 to 122°F
IP Rating IP66

pdf- Download data sheet for A2A

pdf- Download data sheet for A2A-D2

pdf- Download manual for A2A

pdf- Download manual for A2A-D2
