ANYLOAD | 363HSAN Compression Load Cell

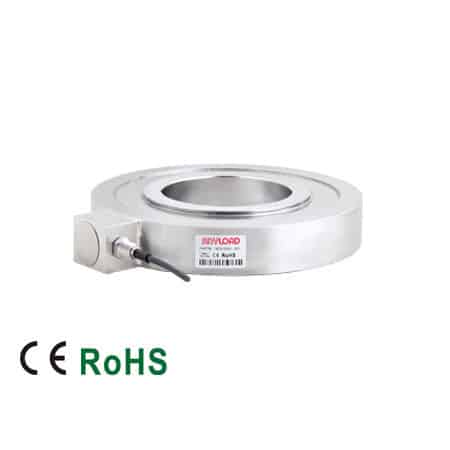

363HSAN Compression Load Cell

Description:

363HSAN Compression Load Cell is custom-designed for use in landslide mitigation for the civil engineering and construction sectors. The design allows the load cell to be integrated easily into bolt structures, especially in ground anchor/anchored retaining walls, soil nailing, helical tiebacks, and other related geotechnical applications. It provides reliable monitoring by constantly measuring compression forces exerted on a holding plate. The heavy-duty stainless steel construction is IP68 water-resistant, corrosion-resistant, and performs reliably and accurately even under challenging conditions.

Anyload is committed to equipping companies for growth in the force measurement industry, click here to see more force measurement products.

Features:

  • Material: Stainless steel
  • Rated Capacity: 60t
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • Seal Type/IP Rating: Welded Seal/IP68
  • CE and RoHS certified
Clear
Product Enquiry
Rated Capacity 60t
Full Scale Output 2.0mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ±0.8%
Repeatability < ±0.03%
Hysteresis Error < ±0.9%
Creep in 30 minutes < ±0.1%
Input Resistance 770Ω ± 30Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
