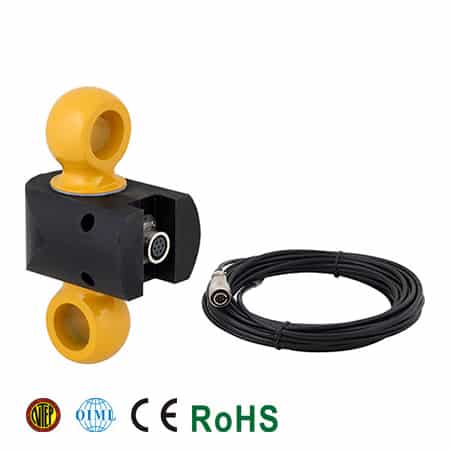

110RH Dynamometer and Tension Link Load Cell, Alloy Steel with Nylon Protection, Environmentally Sealed, IP65

110RH, 110RH-ST Tension Link or Dynamometer

  • Material: Alloy steel with PVC Protection
  • Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 200% of full scale
  • Breaking Overload: 500% of full scale
  • IP Rating: IP67
  • NTEP 1:3000 Class III, Single Cell certified from 500kg-3t
  • NTEP 1:5000 Class III, Multiple Cell certified from 500kg-3t
  • NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
  • OIML MAA C3, Y=15 000 certified from 1t-10t
  • OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
  • CE and RoHS certified
Clear
Product Enquiry
Rated Capacity 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.03%
Repeatability < ± 0.03%
Hysteresis Error < ± 0.03%
Creep in 30 minutes < ± 0.03%
Input Resistance 1100Ω ±50Ω
Output Resistance 1000Ω ± 10Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.004% of Cn/k
Temperature Effect on Zero Balance < ± 0.005% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-22°F to 158°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 200% of full scale
Breaking Overload 500% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- NTEP Certificate of Conformance
pdf- OIML Certificate of Conformity
pdf- CE Certificate of Conformity
pdf- RoHS Certificate of Conformity

 pdf- Download manual ( Software Version 2.06 )

 pdf- Download manual ( Software Version 2.18 )

pdf-Calibration Tutorial Video

pdf-User Settings Video
