110RH, 110RH-ST TENSLINK Eslabón de tensión o dinamómetro

Name: 110RH, 110RH-ST TENSLINK Eslabón de tensión o dinamómetro
SKU: 6059
Availability: InStock

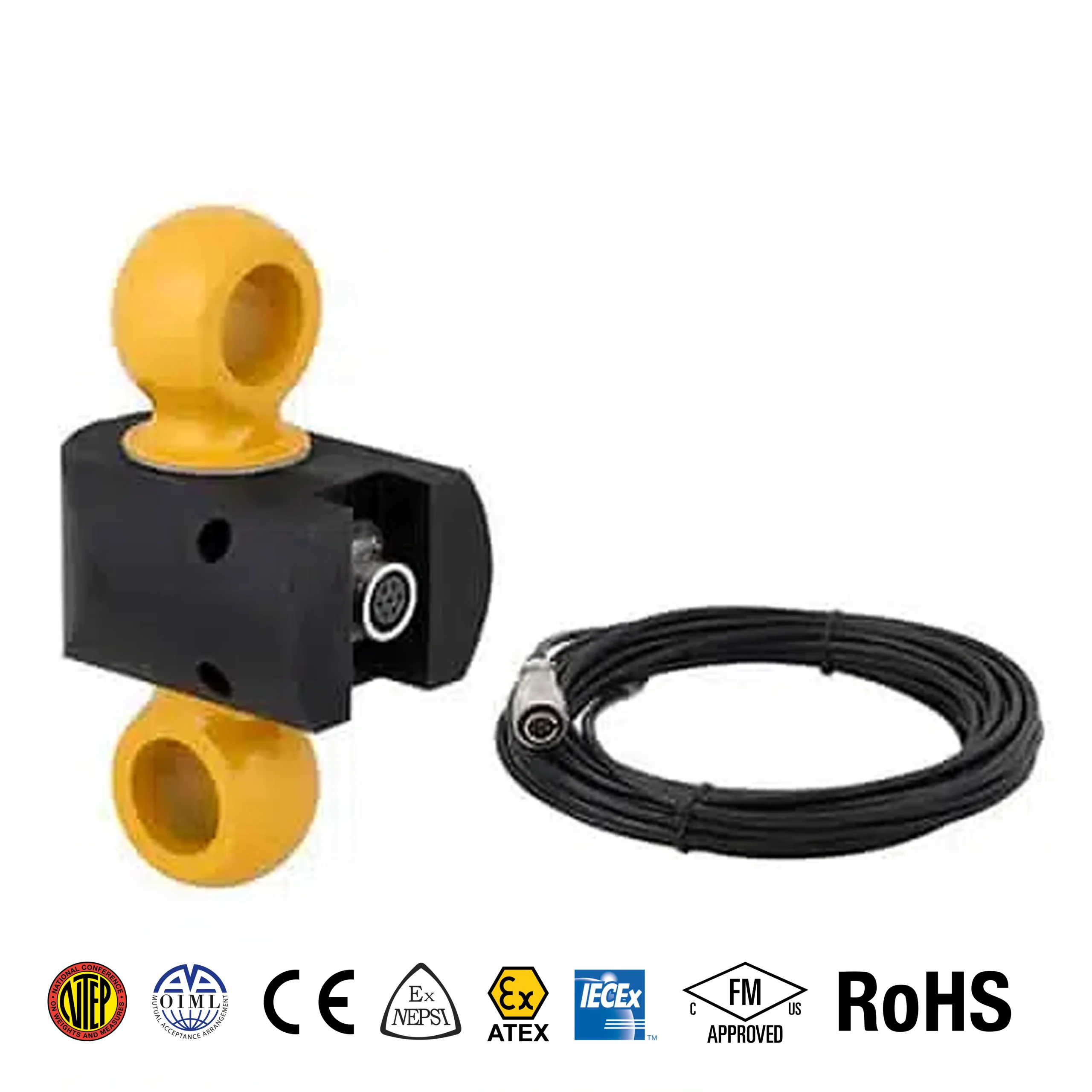

The ANYLOAD 110RH and 110RH-ST are alloy steel tension link load cells featuring a patented design for overhead weighing, lifting, and force measurement applications. Available in capacities ranging from 500kg – 100t (110RH) and 500kg – 20t (110RH-ST), these tension links deliver a full scale output of 2.0 mV/V with a recommended excitation of 10V and a safe overload rating of 200% of full scale. The IP67-sealed 110RH and its companion IP65 options are approved under NTEP, OIML, ATEX, FM, and IECEx standards, making them suitable for use in hazardous and legally-for-trade environments.

The 110RH-ST variant is dimensioned to match standard Crosby shackles directly, simplifying integration into existing rigging and lifting systems without the need for adapters. Both models ship with a 7-pin connector and 6.1×10m cable and are available in multiple electrical configurations, including standard 1100Ω/1000Ω and optional 400Ω/350Ω input/output resistance versions. With nonlinearity, repeatability, and hysteresis all below ±0.03%, these tension links are engineered for precise, repeatable measurement in demanding industrial environments.

The 110RH series is well suited for overhead crane weighing, material handling, rigging tension monitoring, and industrial force measurement across sectors such as marine, construction, mining, oil and gas, and heavy manufacturing. Suggested Crosby G-2130, G-2140, SBX, and TBX shackles are specified per capacity range, ensuring a complete and verified lifting assembly. ANYLOAD’s team can assist with system configuration, ATEX/FM hazardous area requirements, and NTEP or OIML legal-for-trade certification needs — contact us to discuss your application.

Más información

Ficha de datos

Número de pieza

Limpiar

- +

Características

Rated capacities: 500kg – 100t
Alloy steel construction with powder coating
Environmentally sealed to IP67 for harsh environments
Sobrecarga segura: 200% del fondo de escala
Sobrecarga de rotura: 500% del fondo de escala
NTEP and OIML approved
Certificación FM/ ATEX/ IECEx opcional

Especificaciones

Capacidades nominales	500kg – 100t
Salida a fondo de escala	2.0 ±0.25% mV/V
Saldo cero	±0.02mV/V
No linealidad	<±0.03%
Repetibilidad	<±0.03%
Error de histéresis	<±0.03%
Creep en 30 minutos	<±0.03%
Resistencia de entrada	1100Ω ±50
Resistencia de salida	1000Ω ±10
Elemento Material	Acero aleado, revestimiento en polvo
Excitación recomendada	10 V (15 V máximo)
Resistencia del aislamiento	>2[50V DC] GΩ
Rango de temperatura compensado	-10°C – 50°C / 14°F – 122°F
Sobrecarga segura	200% del fondo de escala
Romper la sobrecarga	500% del fondo de escala
Tipo de junta / grado IP	Environmentally Sealed / IP67
