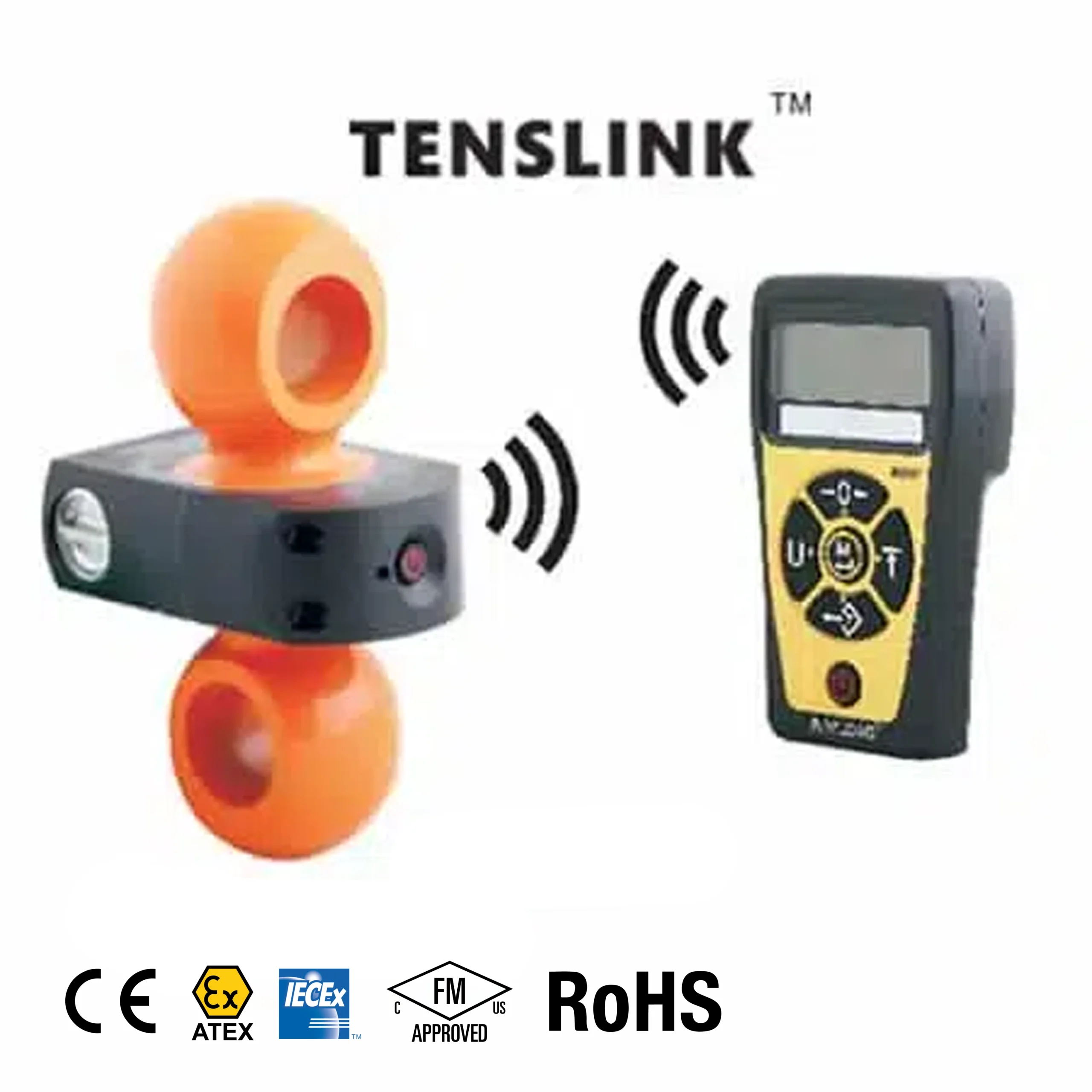

110RH-WL, 805HP-WL Tensiómetro o dinamómetro inalámbrico TENSLINK
The ANYLOAD 110RH-WL TENSLINK is a patented wireless alloy steel tension link load cell engineered for dynamic and static tension force measurement in lifting, rigging, and overhead load monitoring applications. Available in rated capacities ranging from 500kg – 100t, the 110RH-WL transmits live load data wirelessly via 433 MHz or 915 MHz radio frequency, eliminating the need for cable connections between the sensor and indicator in field and industrial environments.
The TENSLINK wireless system operates on 3×AA alkaline batteries with up to 100 hours of continuous runtime at the lowest power setting, and transmits load readings up to 75 metres in unobstructed conditions at the highest power setting. With a combined error of just 0.03% and an IP67-rated powder-coated alloy steel enclosure, the 110RH-WL is built for reliable performance in outdoor, marine, and demanding industrial environments where wired solutions are impractical.
The 110RH-WL is designed to integrate directly into standard shackle-based rigging setups, with suggested Crosby G-2130 and G-2140 shackles specified per capacity range. The sensor pairs with a separately ordered ANYLOAD wireless indicator, forming a complete portable tension measurement system suited for crane operators, riggers, lift supervisors, and load testing professionals.
If your operation requires wireless tension measurement for load monitoring, proof load testing, crane safety, or rigging force verification, ANYLOAD can assist with system configuration and indicator pairing. Our team supports integrators, OEMs, and end users in selecting the right capacity and frequency band for their operating environment. Contact us to discuss your application or customization requirements.
Características
- Rated capacities: 1Klb – 200Klb / 500kg – 100t
- Alloy steel construction with powder coating
- TENSLINK™ patent design
- IP67 rated for harsh environments
- Wireless transmission range up to 75m (unobstructed)
- Up to 100 hours battery operation
- Max. Safety Load: 200% of full scale
- Ultimate Load: 500% of full scale
- CE / RoHS certified
Especificaciones
| Capacidades nominales | 1Klb – 200Klb / 500kg – 100t |
|---|---|
| División |
500kg / 0.1kg 1t / 0.2kg 2t / 0.5kg 3t, 5t / 1kg 10t / 2kg 20t / 5kg 30t, 50t / 10kg 100t / 20kg |
| Combined Error | 0.03% |
| Max. Safety Load | 200% del fondo de escala |
| Ultimate Load | 500% del fondo de escala |
| Alcance de la transmisión | Up to 30m at lowest power setting; up to 75m at highest power setting, unobstructed |
| Rechargeable Battery Type | 3 × AA Alkaline batteries |
| Tiempo de funcionamiento | Up to 100 hours at 20°C at the lowest power setting |
| Humedad de funcionamiento | <85% RH under 20°C [68°F] |
| Temperatura de funcionamiento | -10°C a 50°C / 14°F a 122°F |
| Clasificación IP | IP67 |
| Recinto | Acero aleado, revestimiento en polvo |
