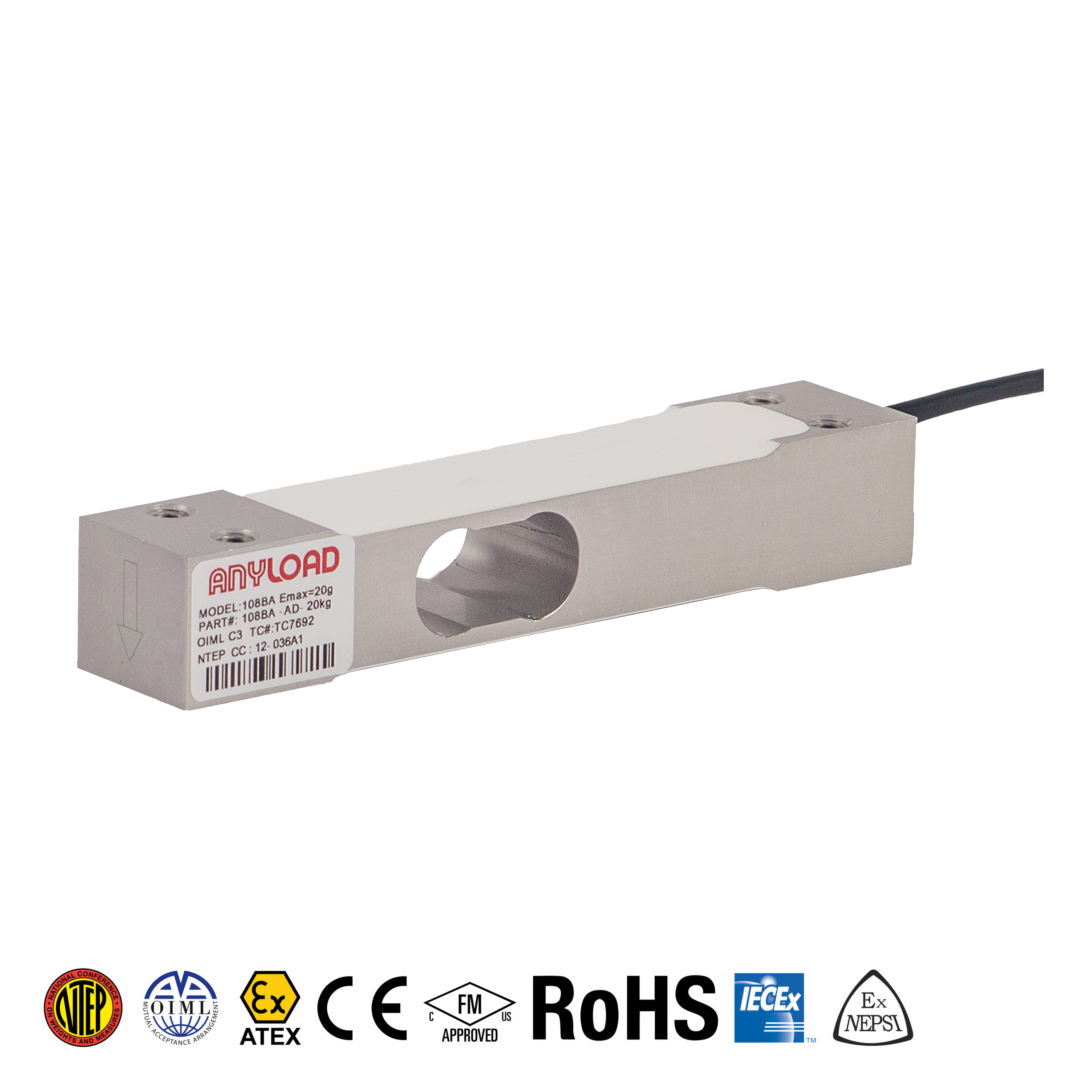

108BA-AD Single Point Load Cell
The ANYLOAD 108BA-AD is a high-performance aluminum single-point load cell engineered for fast dynamic weighing. Its lightweight aluminum construction provides excellent natural frequency and rigidity, ensuring rapid response in high-speed applications such as checkweighers, multi-head combination scales, and dynamic packaging systems. Rated capacities from 10 kg to 40 kg make it suitable for a wide range of industrial and commercial processes. The 108BA-AD offers reliable accuracy with off-center loading, IP66 environmental protection, and is an ideal cost-effective alternative to the stainless steel 108BS.
Features
- Lightweight aluminum, IP66 protection
- High natural frequency for fast response
- Accurate off-center load performance
- Cost-effective for high-speed weighing systems
- Suited for checkweighing and dynamic weighing
- Material: Aluminum, Clear Anodized
- Rated Capacities: 10kg, 15kg, 20kg, 30kg, 40kg
- Full Scale Output: 1.5mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1 :5 000 Class Ill, Single Cell
- 6kg-40kg: up to OIML MAA Cl.5, Y=20 000;
- CE and RoHS certified
Specifications
| Rated Capacities | 10kg, 15kg, 20kg, 30kg, 40kg |
|---|---|
| Full Scale Output | 1.5mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | ± 0.017% |
| Repeatability | ± 0.017% |
| Hysteresis Error | ± 0.017% |
| Creep in 30 minutes | ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Effect on Sensitivity | –10°C to -40°C/14°F to -104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
