108DA Single Point Load Cell, Aluminum, Environmentally Sealed, IP66

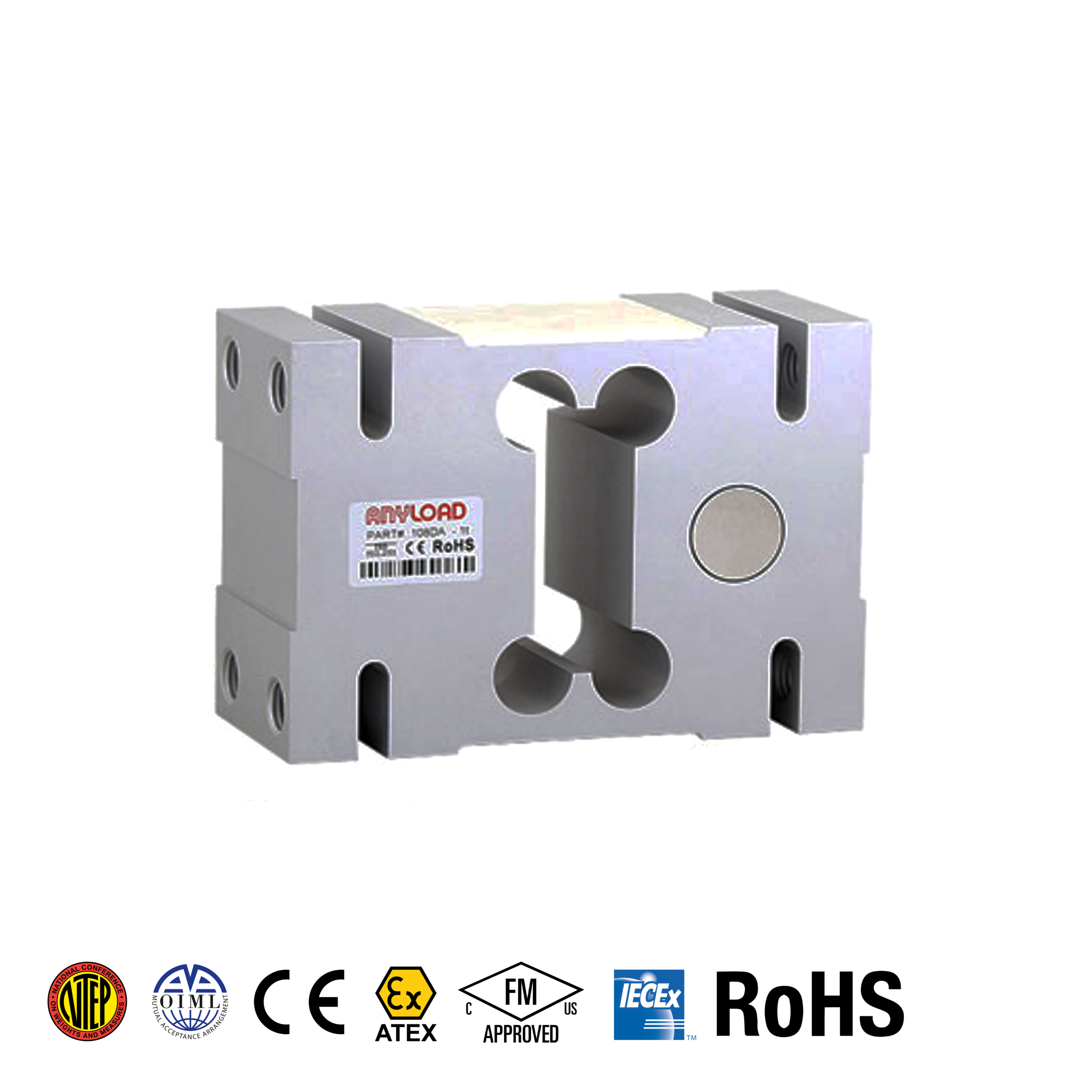

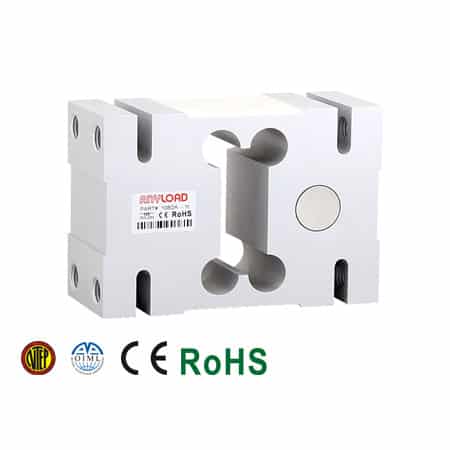

108DA Single Point Load Cell

Description:

The 108DA is a heavy-duty single point delivering reliable performance for medium and high-capacity applications. Each load cell is individually adjusted to protect against corner errors. This model is a simple and easy-to-install solution and common applications include platform scales, floor scales, bench scales, check weighing, process weighing, hanging scales, and more. The 108DA is interchangeable with Vishay Tedea-Huntleigh 1320 and Celtron HOC.

Features:

  • Material: Aluminum
  • Rated Capacities: 500kg, 800kg, 1t, 1.5t, 2t
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified
Clear
Product Enquiry
SKU: N/A Categories: , Tag:
Rated Capacities 500kg, 800kg, 1t, 1.5t, 2t
Reference Max. Platform Size 1200mm X 1200mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 108DA-(500-2000)kg

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Vishay Celtron HOC
Vishay Tedea-Huntleigh 1320
