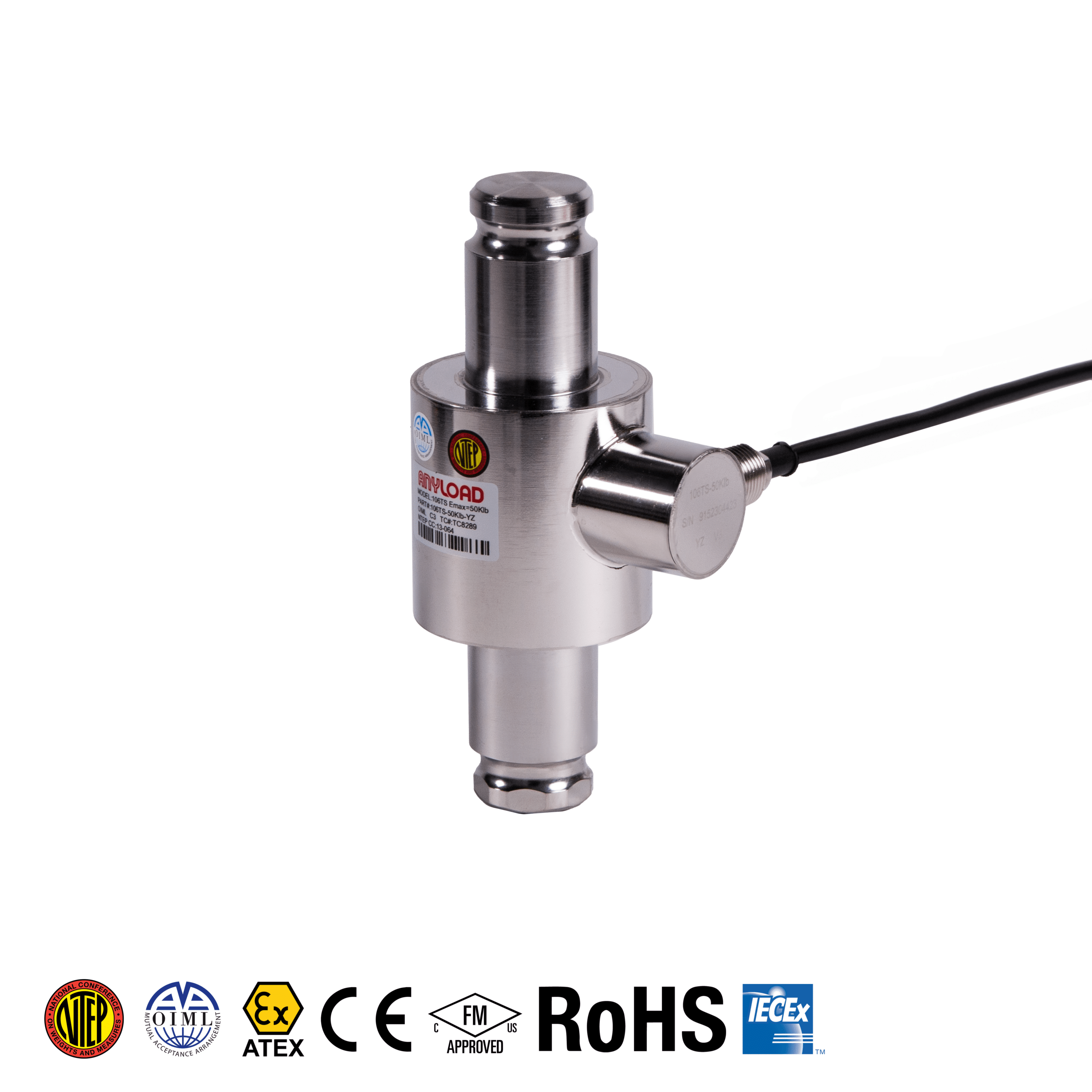

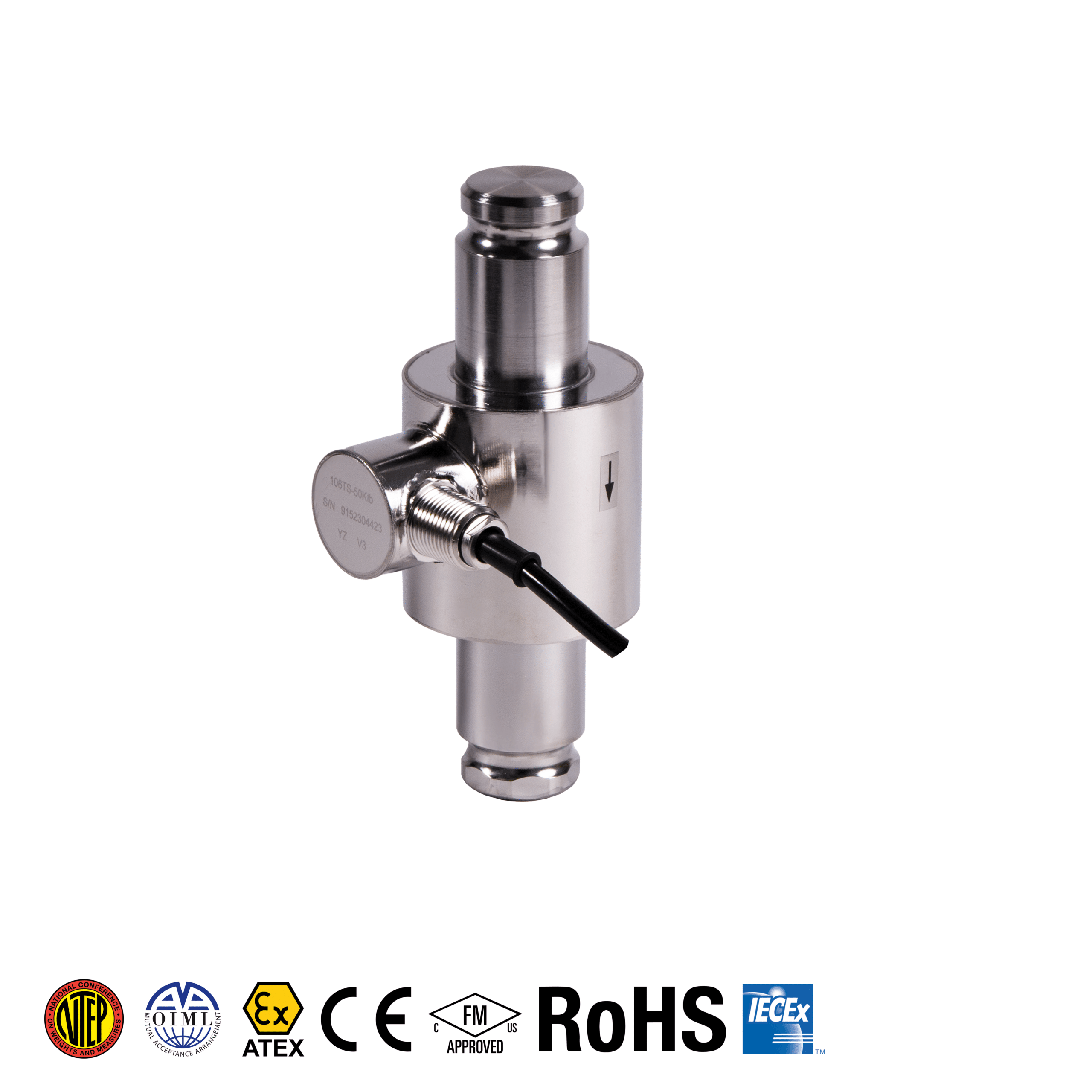

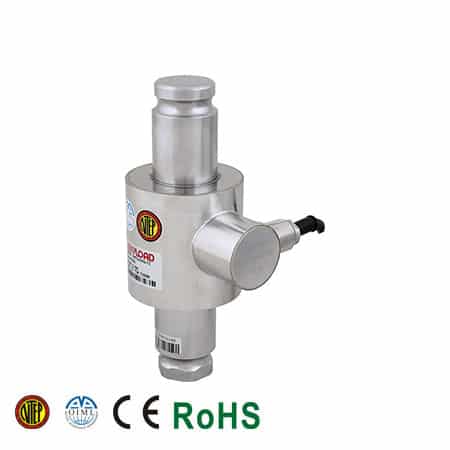

106TS Canister Load Cell

The 106TS is an OIML and NTEP-certified stainless steel IP68 canister load cell. The heavy-duty construction of the load cell offers excellent performance even under harsh conditions. Common applications include truck scales, rail scales, hopper & silo weighing, and other high-capacity/industrial needs. The 106TS is interchangeable with Coti-Global CG-26S7 and Mettler-Toledo 0782, PowerCell 760, MTX, and PDX.

  • Material: Stainless steel
  • Rated Capacities: 50Klb, 100Klb, 30t, SE30t, SE50t.
  • Full Scale Output: 2mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
  • OIML MAA C3, Y=16 000 certified from 10t-50t
  • CE and RoHS certified

See more

Datasheet
Brochure

- +

Features

  • Material: Stainless steel
  • Rated Capacities: 50Klb, 100Klb, 30t, SE30t, SE50t.
  • Full Scale Output: 2mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
  • OIML MAA C3, Y=16 000 certified from 10t-50t
  • CE and RoHS certified

Specifications

Rated Capacities 50Klb, 100Klb, 30t, SE30t, SE50t
Full Scale Output 2mV/V ± 0.1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.020%
Input Resistance 1150Ω ± 50Ω
Output Resistance 1000Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0016% of Cn/k
Temperature Effect on Zero Balance < ± 0.0028% of Cn/k
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Service Temperature Range –30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

Technical Files


Datasheet

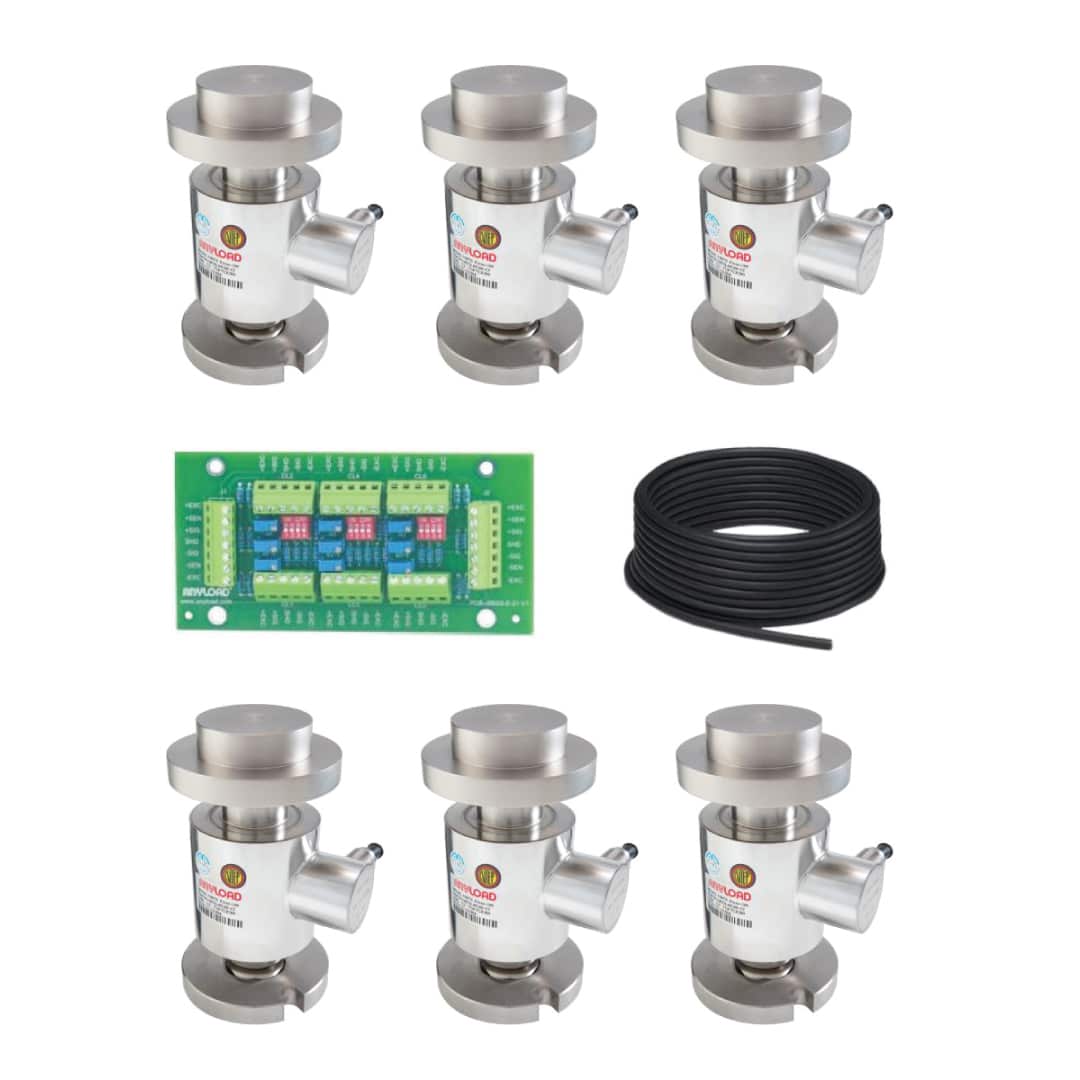

MK6 Kit Retrofit Manual

Sales


Brochure

3D Drawings


106TS-30tb


106TS,(50-100)klb

Approvals


CE Certificate of Conformity


RoHS Certificate of Conformity


NTEP Certificate of Conformance


OIML Certificate of Conformity

Interchangeable

Coti Global CG-26S7-30t-797 (30t)
Coti Global CG-26S7-30t (SE30t)
Coti Global CG-26S7-50t (SE50t)
Mettler Toledo Powercell 760/MTX* (30t)
Mettler Toledo 0782, 30t/PDX* (With A or B Cups) (SE30t)
Mettler Toledo 0782, 50t/PDX* (With A or B Cups) (SE50t)

* Mettler-Toledo Powercell 760, MTX and PDX are digital load cells
