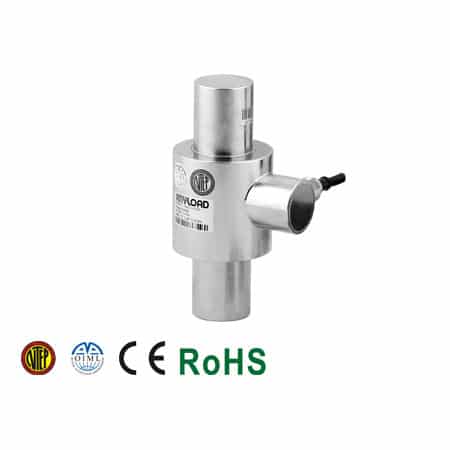

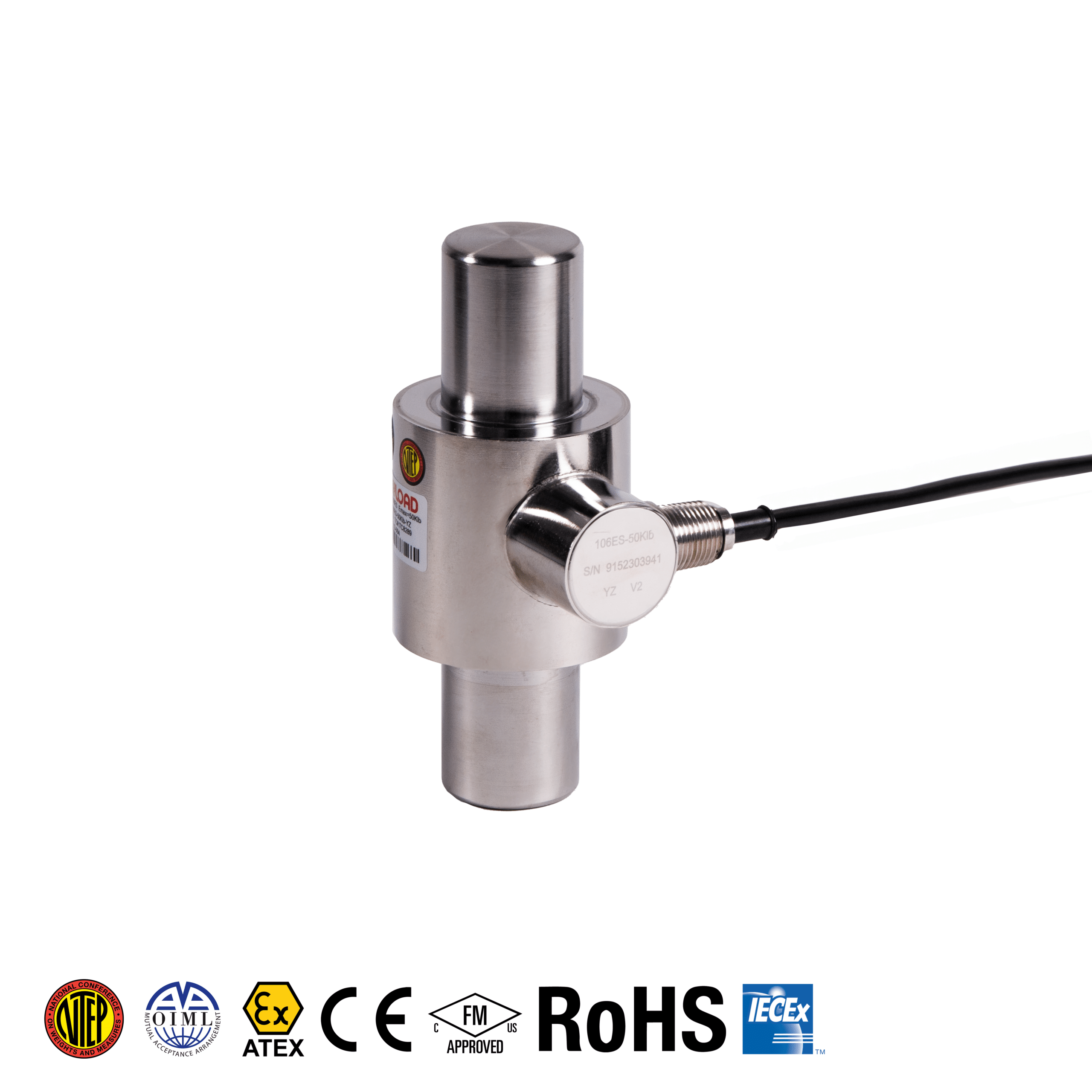

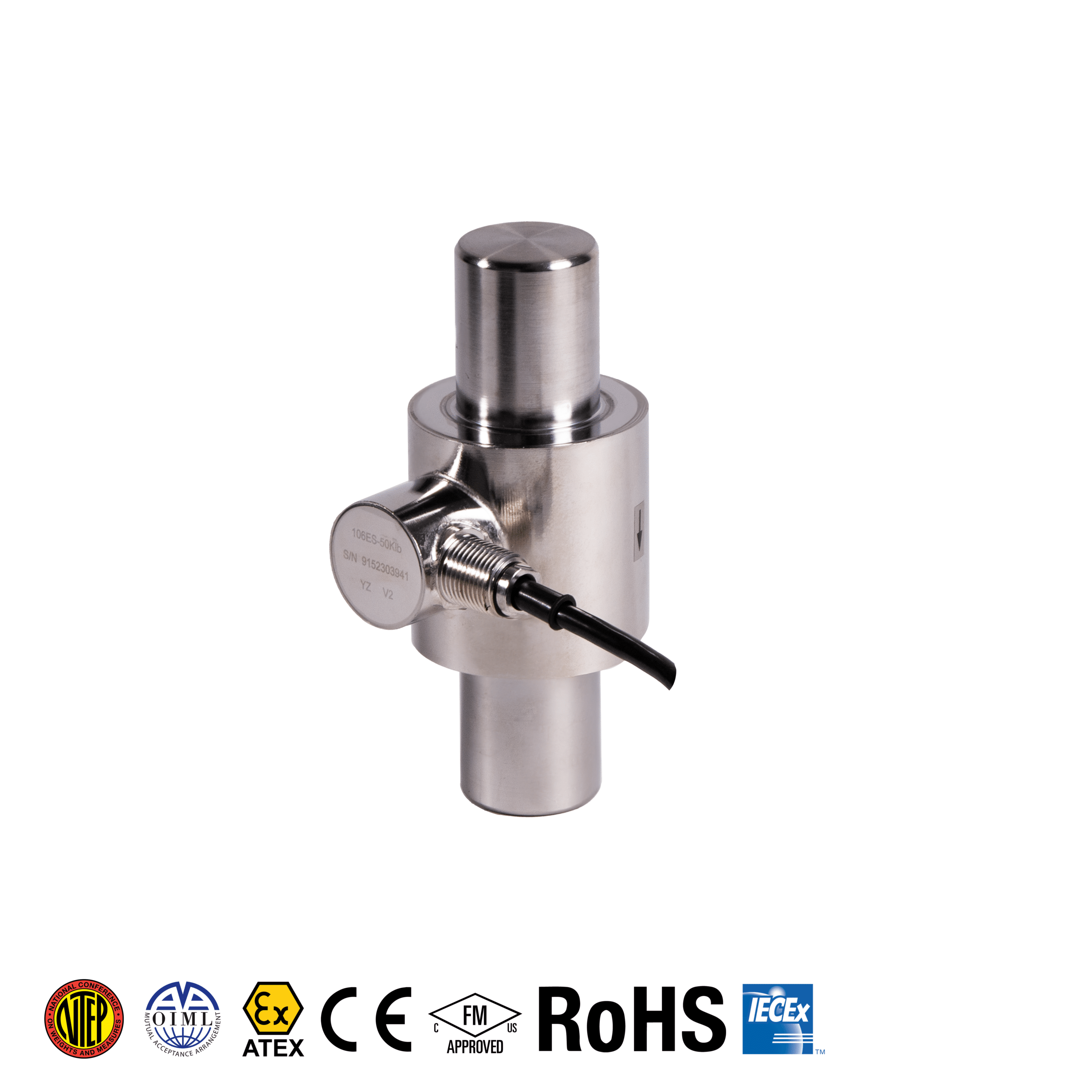

106ES Canister Load Cell

Description:

The 106ES is an NTEP and OIML-approved canister load cell. The IP68 weld sealed stainless steel water and corrosion-resistant construction is built for the toughest high-capacity weighing needs. Common applications include truck scales, rail scales, silo weighing, and many more heavy-duty systems. The 106ES is also interchangeable with the Cardinal SCA series canister load cells.

Features:

  • Material: Stainless steel
  • Rated Capacities: 50Klb, 100Klb
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
  • OIML MAA C3, Y=16 000 certified from 10t-50t
  • CE and RoHS certified
Rated Capacity 50Klb, 100Klb
Full Scale Output 2mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.030%
Input Resistance 1100Ω ± 50Ω
Output Resistance 1000Ω ± 10Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 106ES,(50-100)klb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Cardinal SCA
Coti Global CG-26S
