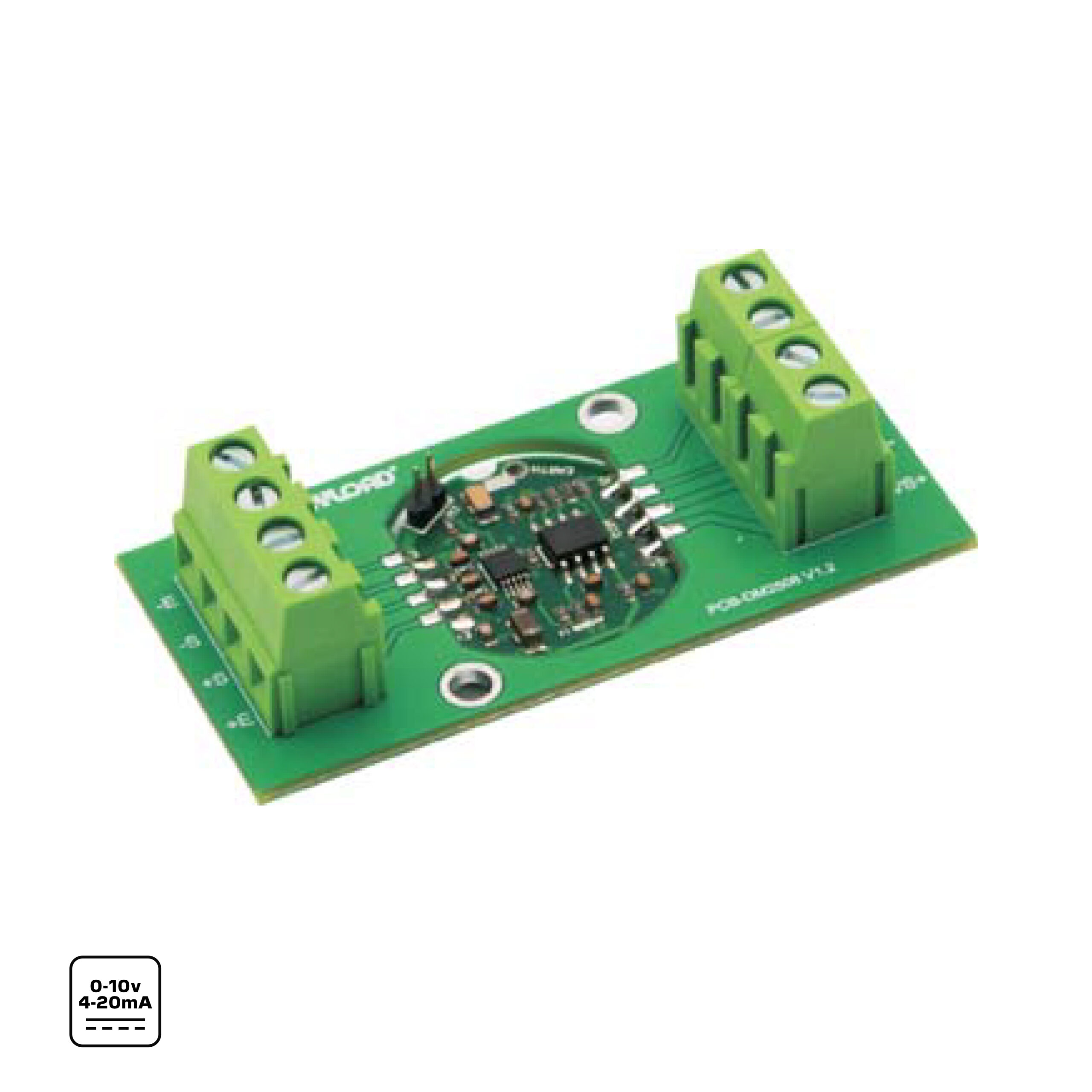

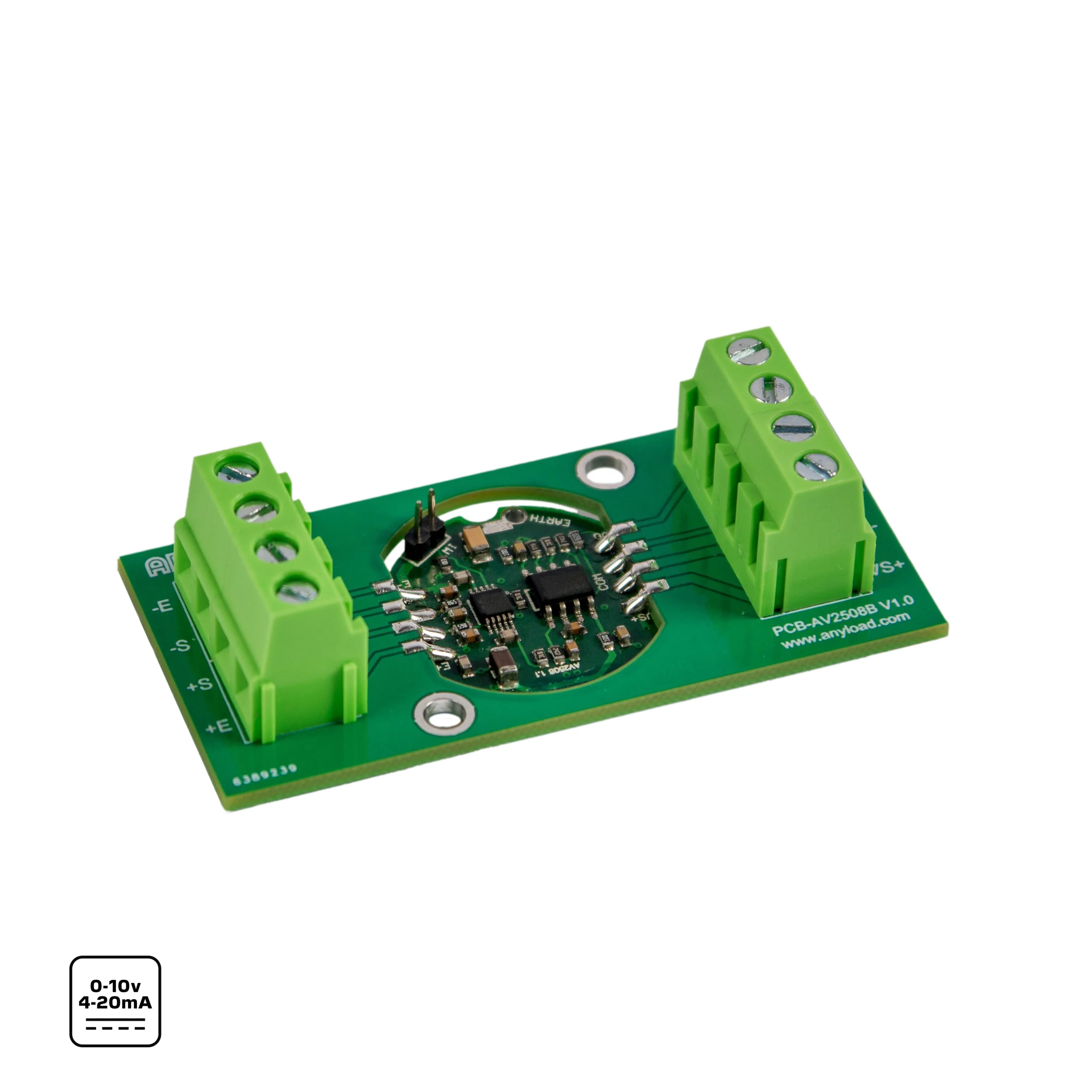

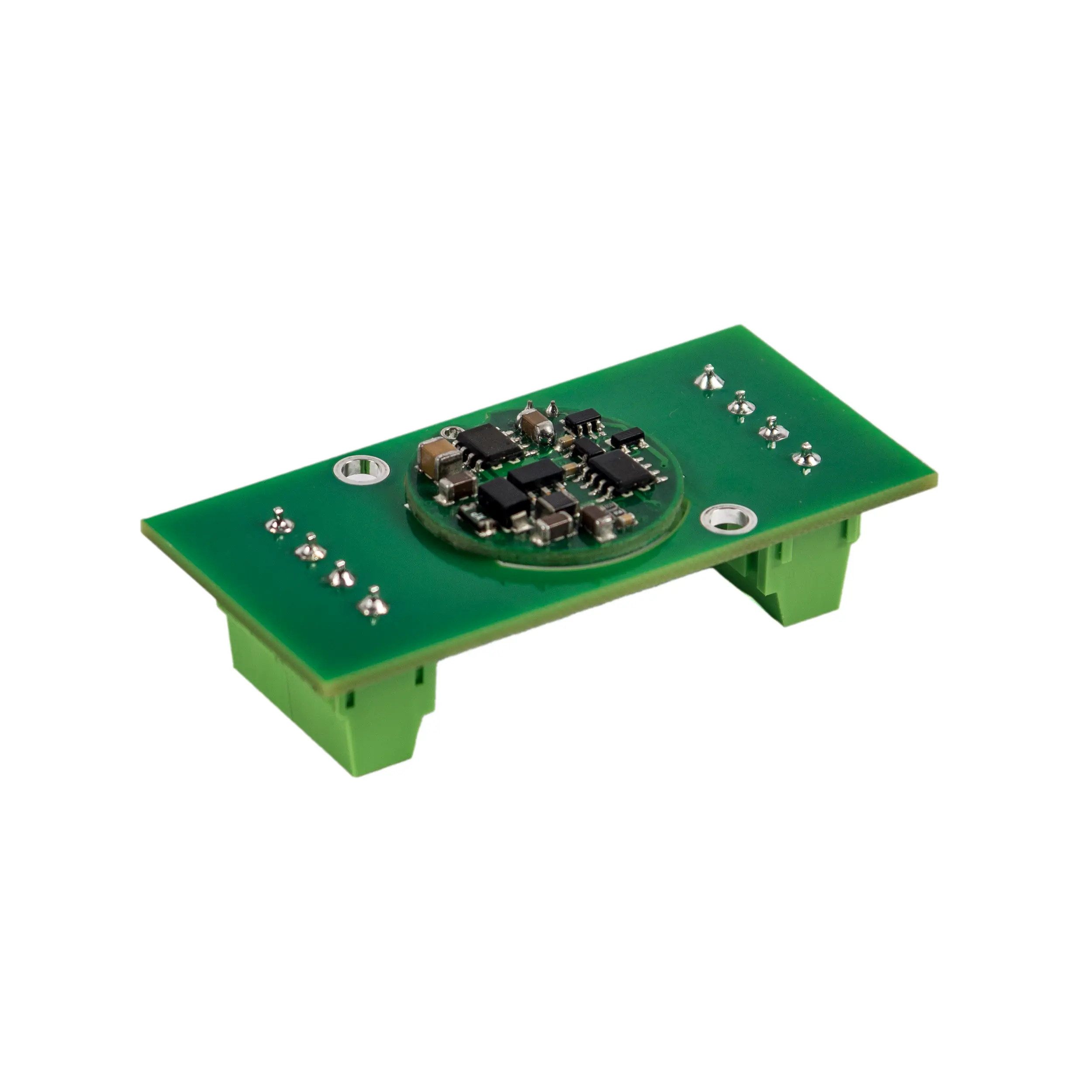

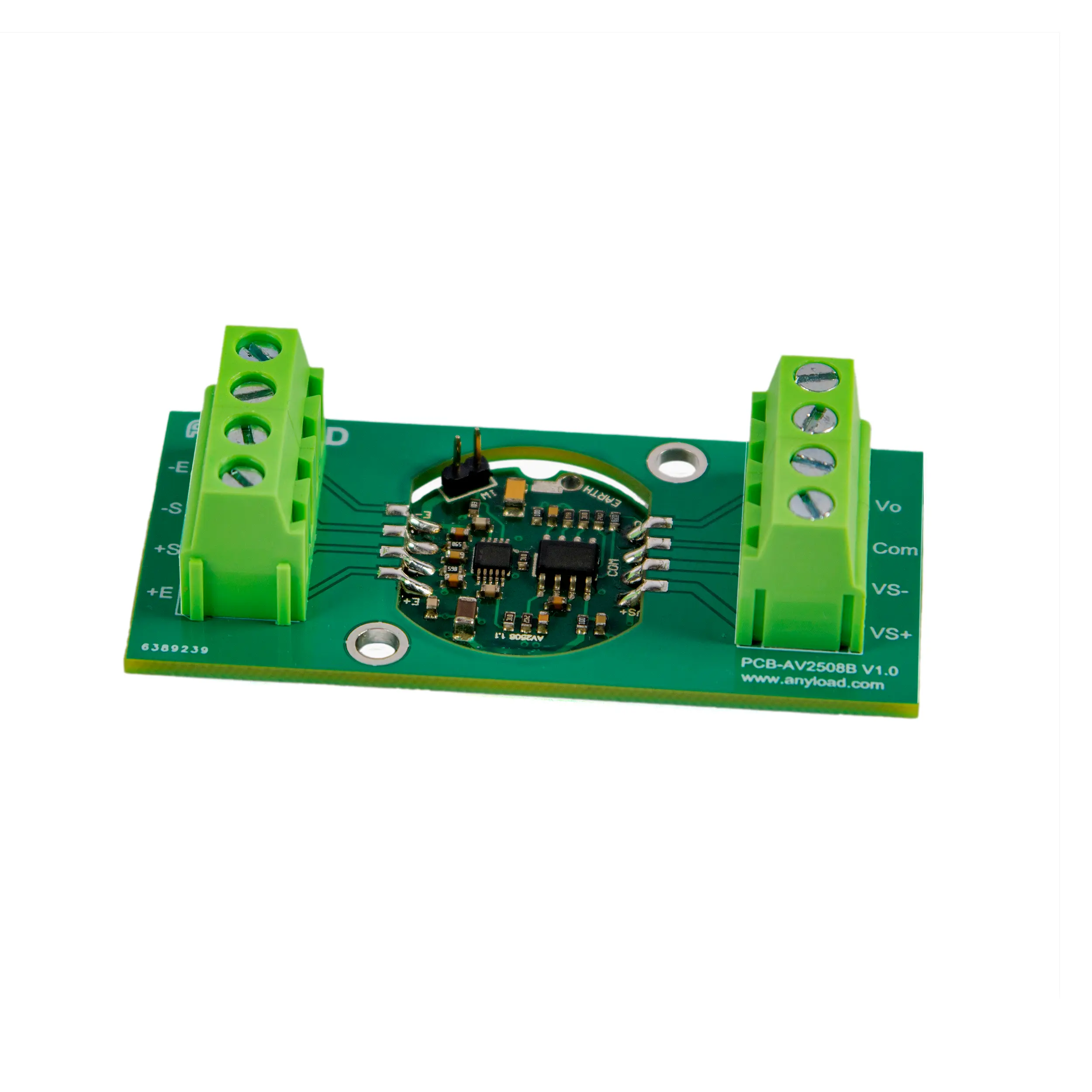

DGB-A Digiboard, Analogue Amplifier

The DGB-A DigiBoard Analogue Amplifier is a reliable signal amplifier designed to enhance analogue load cell signals for industrial weighing systems. It improves signal strength and stability, helping ensure accurate weight readings and consistent performance across scales and measurement applications.

One input port, can connect directly to 1×350Ω load cell @ 12 V DC power, or 2×350Ω load cells @ 24 V DC power
Input range: 0.2 – 10.0 mV/V
Reverse polarity protection
The chip is 24.6mm in diameter and can be embedded within load cells, making the load cells have built-in analog signal amplification
Software is used for calibration
DGB-A Chips can be embedded into load cells for built-in analog signal amplification (special order required)
Designed for all strain gauge sensors including tension, compression, torque, and pressure load cells.

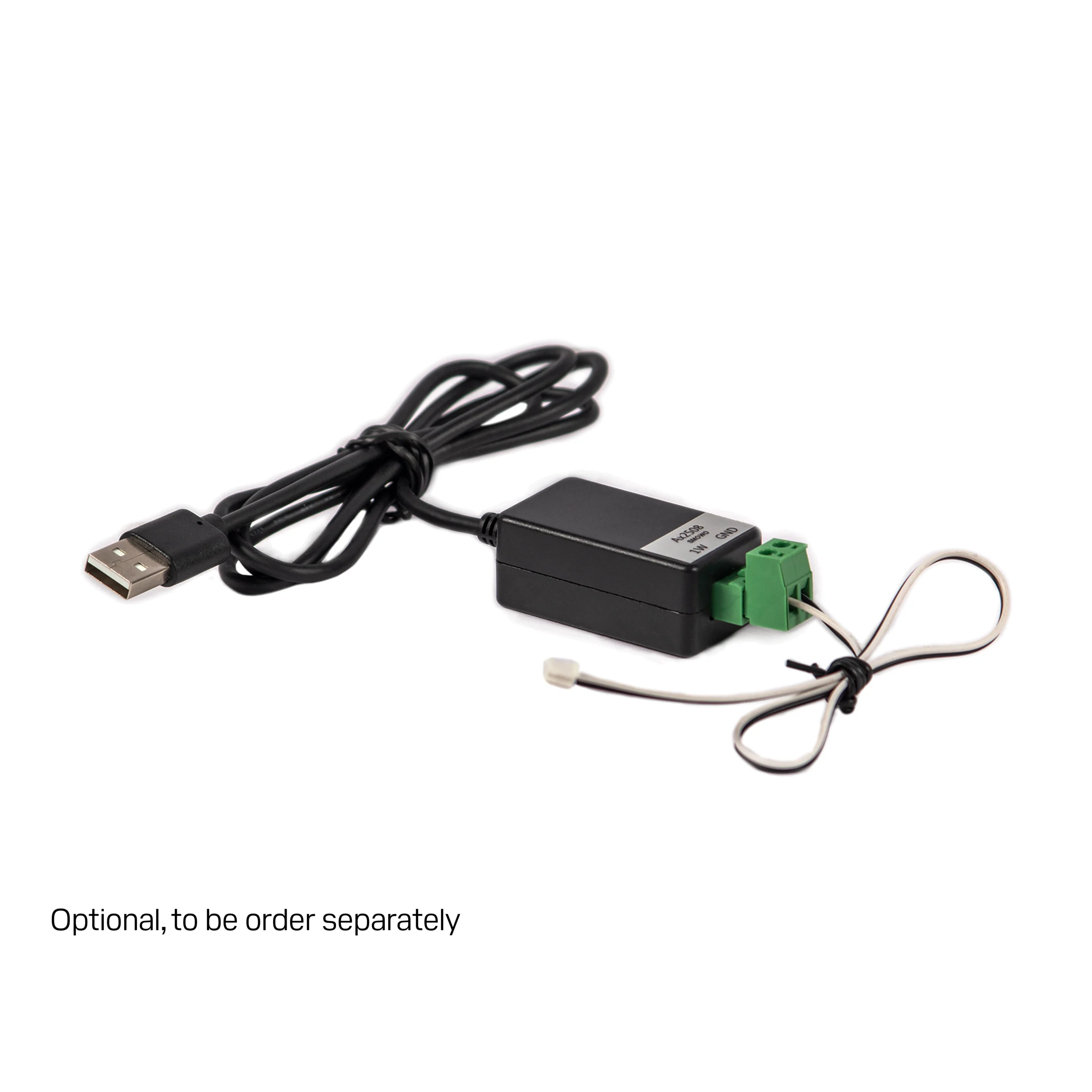

PC Software available for calibration, operations, and data acquisition.

Part Number

Clear

Features

One input port, can connect directly to 1×350Ω load cell @ 12 V DC power, or 2×350Ω load cells @ 24 V DC power
Input range: 0.2 – 10.0 mV/V
Reverse polarity protection
The chip is 24.6mm in diameter and can be embedded within load cells, making the load cells have built-in analog signal amplification
Software is used for calibration
DGB-A Chips can be embedded into load cells for built-in analog signal amplification (special order required)
Designed for all strain gauge sensors including tension, compression, torque, and pressure load cells.
PC Software available for calibration, operations, and data acquisition.

Specifications

Load Cell Type	All strain gage type
Power Supply and Consumption	12-24 V DC
Input Range	0.2-10.0 mV/V
Working Temperature	-22°F – 122°F / -30°C – 50°C
Excitation Voltage to Load Cell	5 V DC
Non-linearity	≤0.02%
Temperature Coefficient	≤100ppm/ °C
Output Resistance	0 – 20 mA; 4 – 20 mA (DGB-AI2508); 0 – 5 V DC; 0 – 10 V DC; -5 – 5 V DC (DGB-AV2508)
