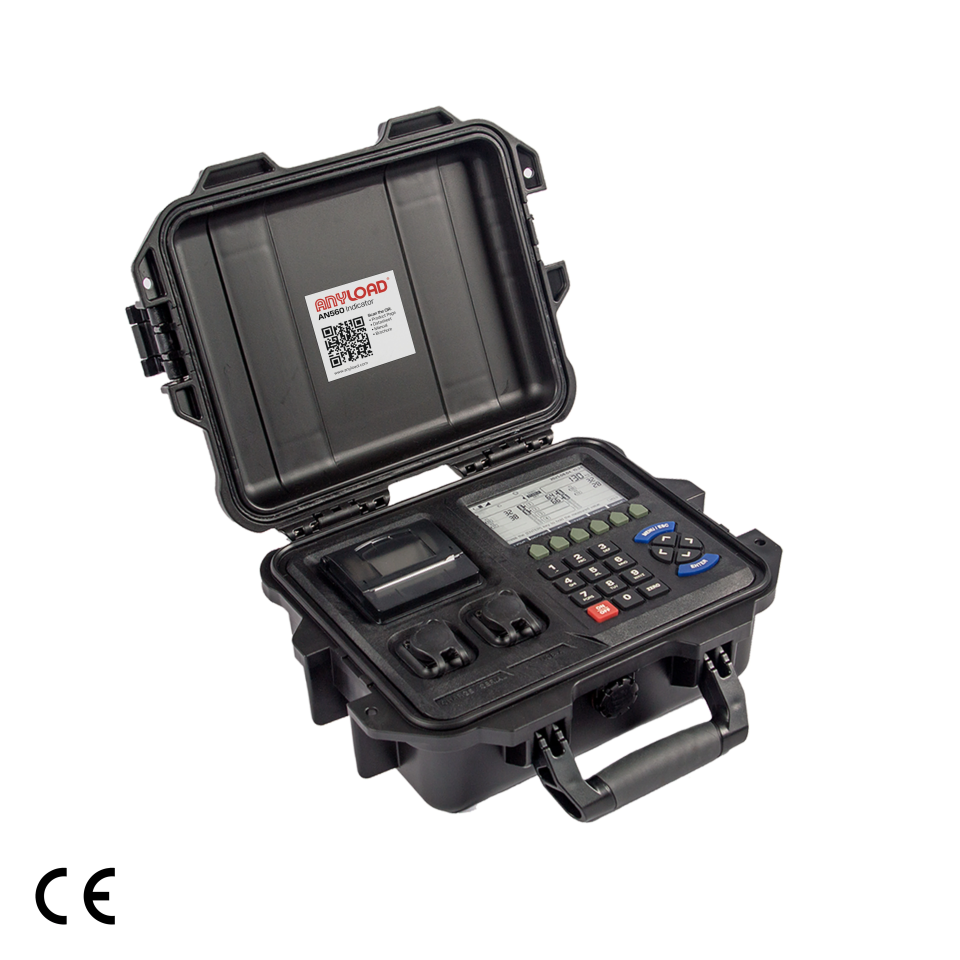

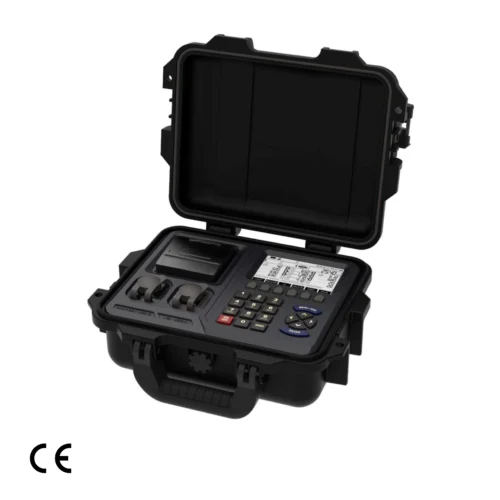

AN560 Axle Weighing Indicator

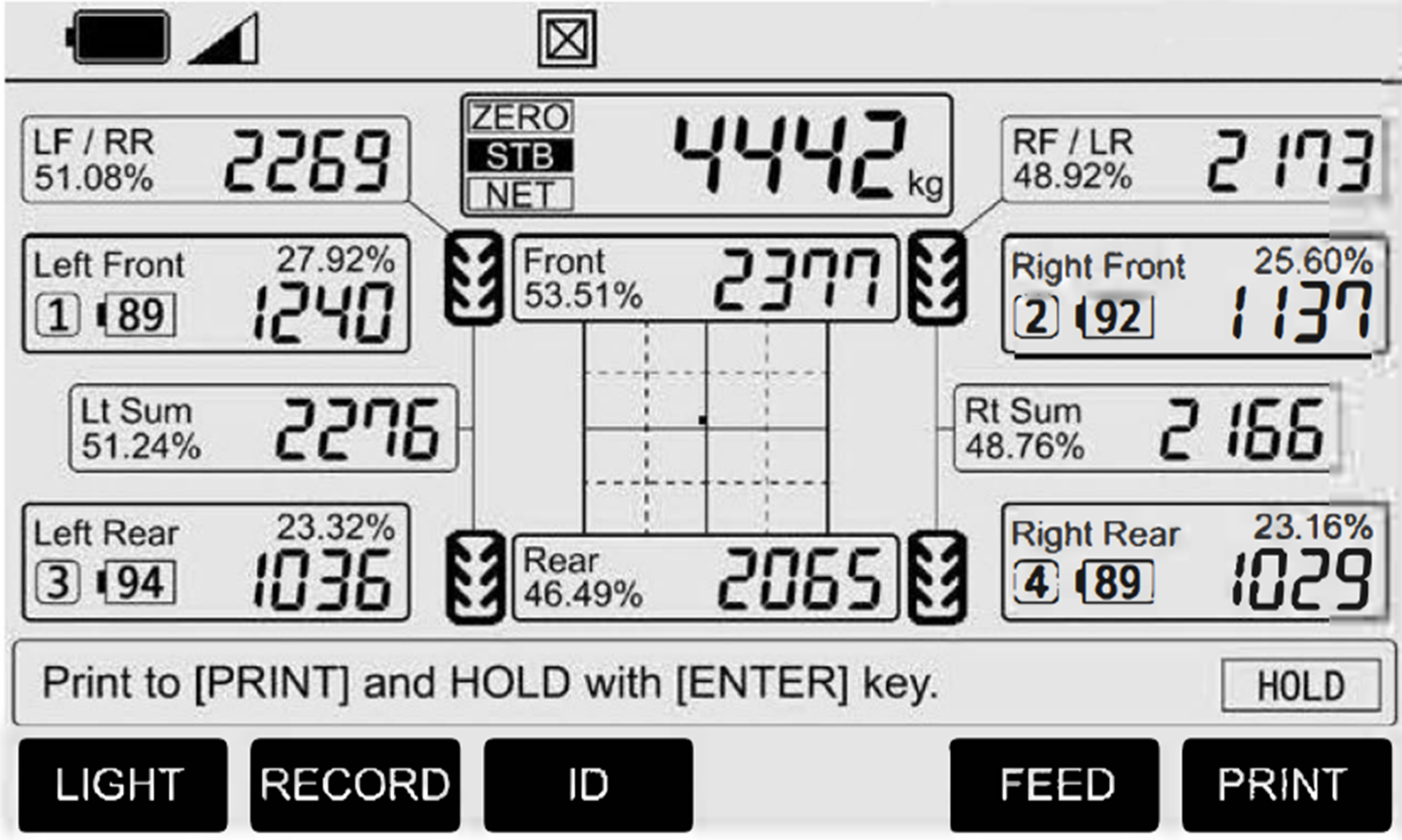

The ANYLOAD AN560 is a rugged, portable wireless indicator designed for axle weighing applications. Featuring a 4.2″ E-ink display, integrated thermal printer, and wireless connectivity to up to 8 scales, it’s ideal for field use in demanding environments. Built-in weigh-in-motion and balancing functions (when paired with corresponding scales). Pairs wirelessly with ANYLOAD AXA Axle Weigh Pads, compact digital weigh pads designed for vehicle weighing applications.
Features:
- Long-lasting rechargeable battery (~600 hours continuous operation per charge)
- High-contrast E-ink 4.2″ display with LED front light for excellent visibility in all lighting conditions
- Supports wireless connection to up to 8 axle pads or scales simultaneously
- Durable silicon keypad for extended field use and tactile feedback
- USB-A port for data backup to USB flash drives
- USB-C port for both charging and virtual COM communication
- Integrated ticket printer w/ configurable formatting
- IP-67 rated housing for harsh conditions
- Compact and portable design (only 6Ib / 2.7kg)
| Display | E-ink 4.2″ with LED front light |
| Internal Memory | Up to 1000 vehicle records |
| Maximum Connections | Supports up to 8 scales |
| Protocol | Proprietary 802.15.4 |
| Indoor/Outdoor Range | 30 / 300 meters |
| USB-A Port | For USB memory stick |
| USB-C Port | USB VCP interface & charging |
| Printer | Integrated direct line thermal printer |
| Battery | Built-in 21700 Li-ion with PCM |
| Charger | 12VDC, 2A SMPS adapter ( Quick Charge 2.0 / 3.0 compatible) |
| Operating Time | Approx. 600 hours |
| Operating Temperature | -20°C to 60°C |
| Operating Humidity | 85% R.H. ( No Condensation) |
