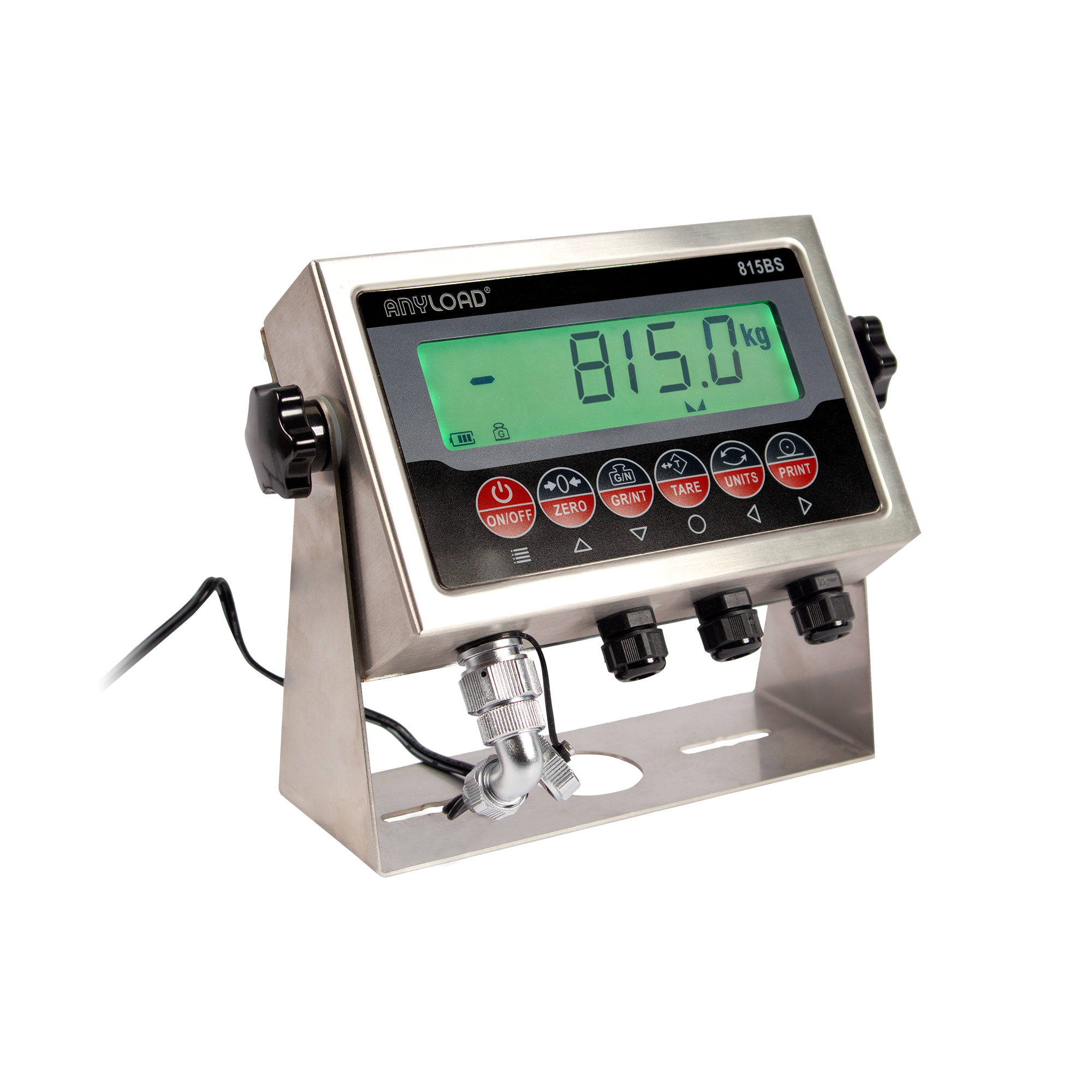

815BS-B2-21E Industrial Weight Indicator
The ANYLOAD 815BS-B2-21E LCD weight indicator is an industrial weighing indicator that provides high accuracy and reliability with multiple functions. The 815BS-B2-21E features the password-protected calibration menu and electronic sealing via the audit trail function. It has also advanced analog, digital and average filtering and can drive up to four 350Ω (4×350Ω) or eight 700Ω (8×700Ω) load cells. With an SS304 stainless steel enclosure, the 815BS-B2-21E is ideal for the food industry, agricultural industry, and industrial applications.
- 1.0”, 6 digits, 7 segments, LCD display
- Tri-color backlight: green, red, and amber
- Indication of up to four units of measurements: kg, lb, oz and g
- Indication of gross, net, and tare
- Indication of stability and center of zero
- Easy wiring screw terminals
- Weight, peak, set point, and piece counting
- Password-protected setup and calibration menu
- Physical and electronic sealing with audit trail function
- Advanced analog, average, and digital filtering
- Two independent RS-232 communication ports
- UL-approved external wall adapter
- Built-in lithium battery with internal charger
- Weatherproof stainless steel enclosure, NEMA4X / IP66
- Breather vent to avoid condensation inside
- NTEP: Class III/IIIL 10,000d
- Measurement Canada: Class III / IIIHD 10,000d / 20,000d
Features
- 1.0”, 6 digits, 7 segments, LCD display
- Tri-color backlight: green, red, and amber
- Indication of up to four units of measurements: kg, lb, oz and g
- Indication of gross, net, and tare
- Indication of stability and center of zero
- Easy wiring screw terminals
- Weight, peak, set point, and piece counting
- Password-protected setup and calibration menu
- Physical and electronic sealing with audit trail function
- Advanced analog, average, and digital filtering
- Two independent RS-232 communication ports
- UL-approved external wall adapter
- Built-in lithium battery with internal charger
- Weatherproof stainless steel enclosure, NEMA4X / IP66
- Breather vent to avoid condensation inside
- NTEP: Class III/IIIL 10,000d
- Measurement Canada: Class III / IIIHD 10,000d / 20,000d
Specifications
| Power Supply | AC adaptor, 100VAC to 240VAC, 50-60Hz; Built-in 10,000mAH internal rechargeable lithium battery |
|---|---|
| Power Consumption | 120VAC @ 0.1A / 12VDC @ 0.5A (10W AC / 5W DC) typical |
| Excitation Voltage | 5V DC±5% |
| Number of load cells | Up to 4×350Ω; 8×700Ω |
| Input Range | Up to 19mV/4mV/V |
| Sample Rate | 80 samples/second |
| Resolution | 1,000,000 internal count, with 24bits resolution |
| Division | Legal for Trade 10,000d/20,000d |
| Tare range | 100% Full Scale NTEP/MC/OIML |
| Communicate Interface | 2 x RS-232C |
| Working Humidity | 20% RH to 90% RH | Working Temperature | -10°C to 50°C / 15°F to 120°F |
| Dimensions (W x H x D) | 9.1”×7.4”×3.0”(231×196×76mm) base included |
