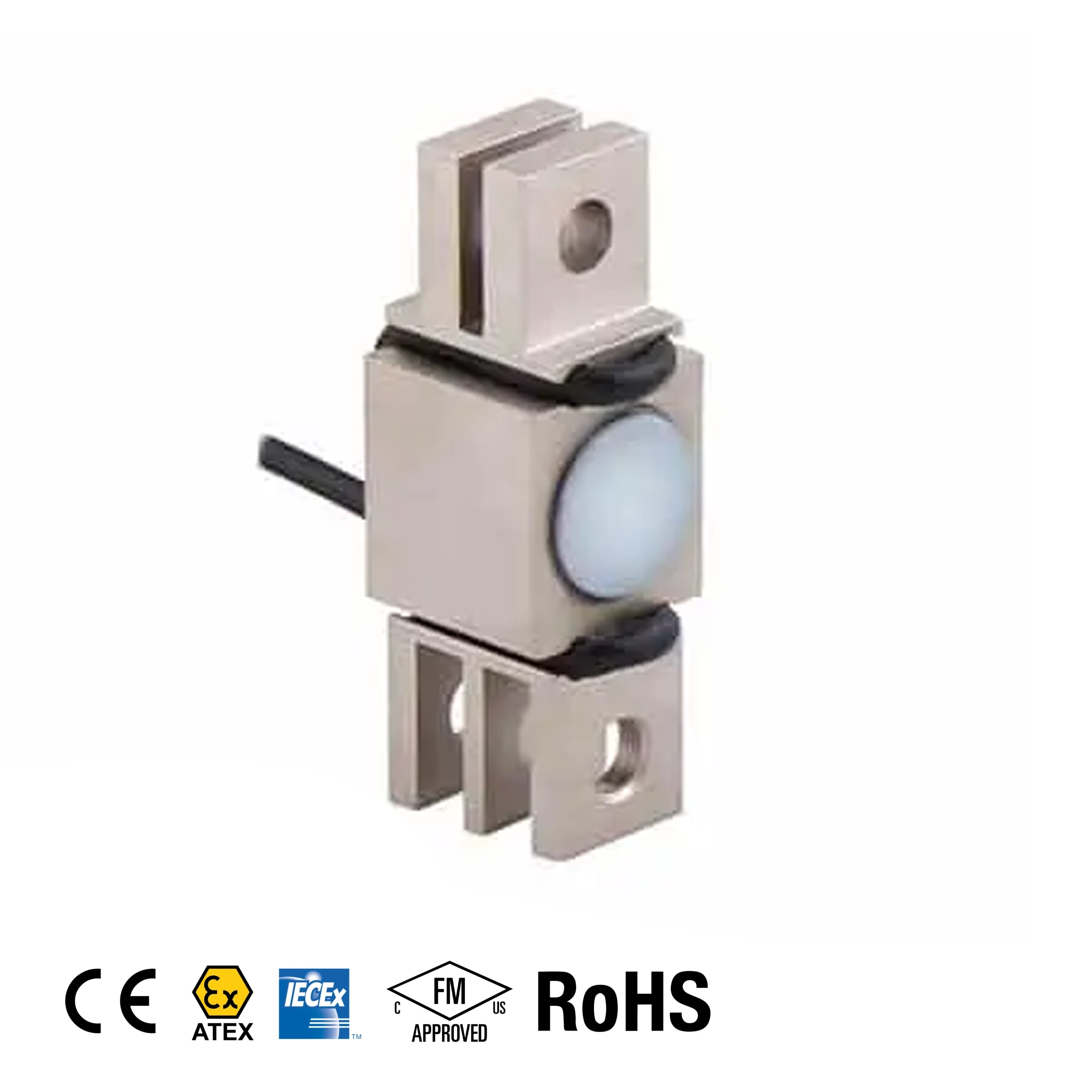

110ZHBL Tension Link Load Cell

Description:

The 110ZHBL is a robust and cost-effective IP67 tension link suited to performing even under rugged conditions against irregular loading. This model replaces a chain link to measure the pulling force of the chain. A common application is in forklift weighing.

Features:

  • Material: Alloy steel
  • Rated Capacities: 1.5t, 2.5t, 2.5Klb
  • Full Scale Output: 1.5mV/V ± 0.25%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 400% of full scale
  • IP Rating: IP67
  • CE and RoHS certified
  • To go with leaf chain BL534 or BL634 for forklift truck weighing
Rated Capacity 1.5t, 2.5t, 2.5Klb
Full Scale Output 1.5mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.4%
Repeatability < ± 0.05%
Hysteresis Error < ± 0.1%
Creep in 30 minutes < ± 0.05%
Input Resistance 1200Ω ±60Ω
Output Resistance 1000Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.02% of Cn/k
Temperature Effect on Zero Balance < ± 0.01% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Nominal Temperature Range (°C) 10°C to 40°C
Nominal Temperature Range (°F) 14°F to 104°F
Safe Overload 150% of full scale
Breaking Overload 400% of full scale
Seal Type Environmentally sealed
IP Rating IP67
