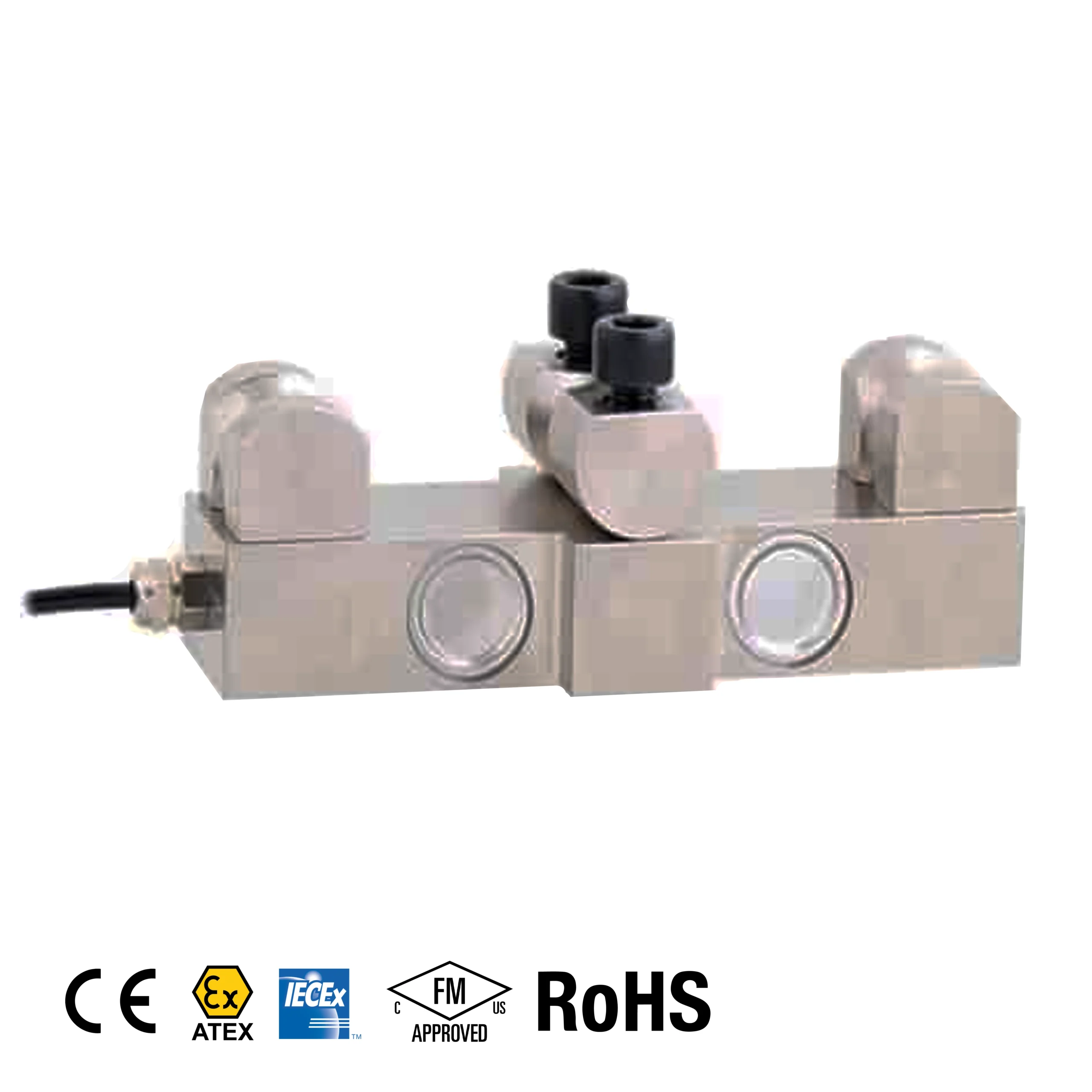

107CH Wire Rope Load Cell
Designed to measure tension force in crane and hoist applications, our IP67 alloy steel wire rope load cell is an accurate and effective force measurement solution, even in harsh conditions. It is available in rated capacities of 10kN, 20kN, 50kN, 100kN, 140kN, and 200kN, with a full scale output of 1.0–1.5mV/V and a safe overload of 150% of full scale. The load cell is constructed from nickel plated alloy steel and features environmentally sealed IP67 protection.
Features
- Material: Alloy steel, Nickel Plated
- Rated Capacities: 10kN, 20kN, 50kN, 100kN, 140kN, 200kN
- Full Scale Output: 1.0 – 1.5mV/V
- Safe Overload: 150% of full scale
- Environmentally Sealed/IP67
Specifications
| Rated Capacities | 10kN – 200kN |
|---|---|
| Full Scale Output | 1.0 – 1.5 mV/V |
| Zero Balance | < ± 1% |
| Non-linearity | < ± 0.3% |
| Repeatability | < ± 0.3% |
| Hysteresis Error | < ± 0.3% |
| Creep in 30 min. | < ± 0.05% |
| Input Resistance | 800Ω ± 50 |
| Output Resistance | 700Ω ± 10 |
| Element Material | Alloy Steel, Nickel Plated |
| Recommended Excitation | 10V |
| Insulation Resistance | > 5 [50V DC] GΩ |
| Compensated Temperature Range | –20°C to 65°C / –4°F to 149°F |
| Safe Overload | 150% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
