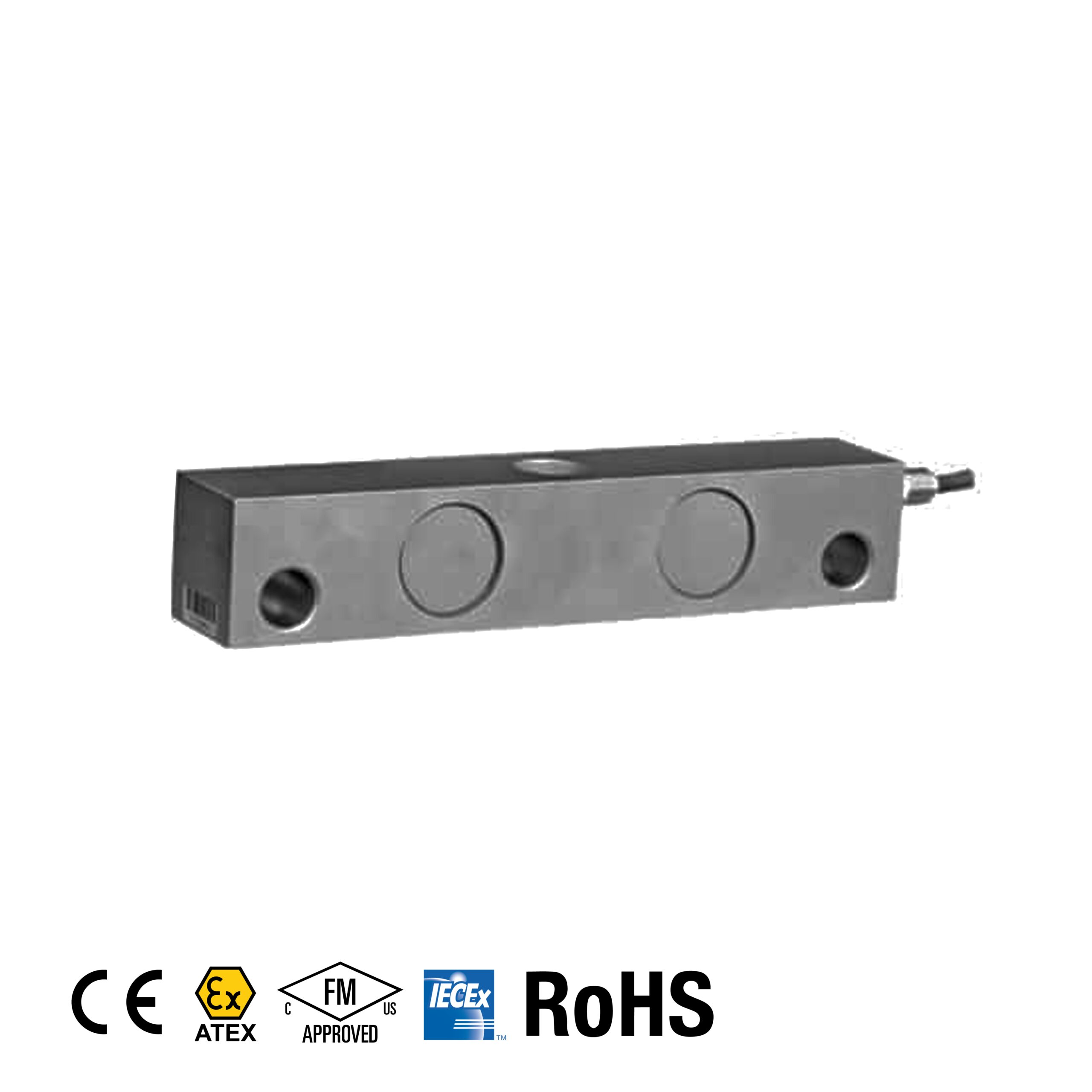

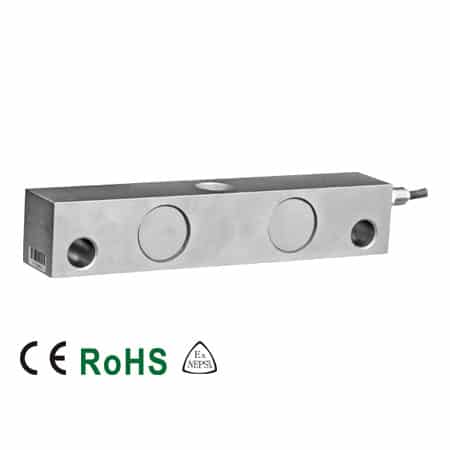

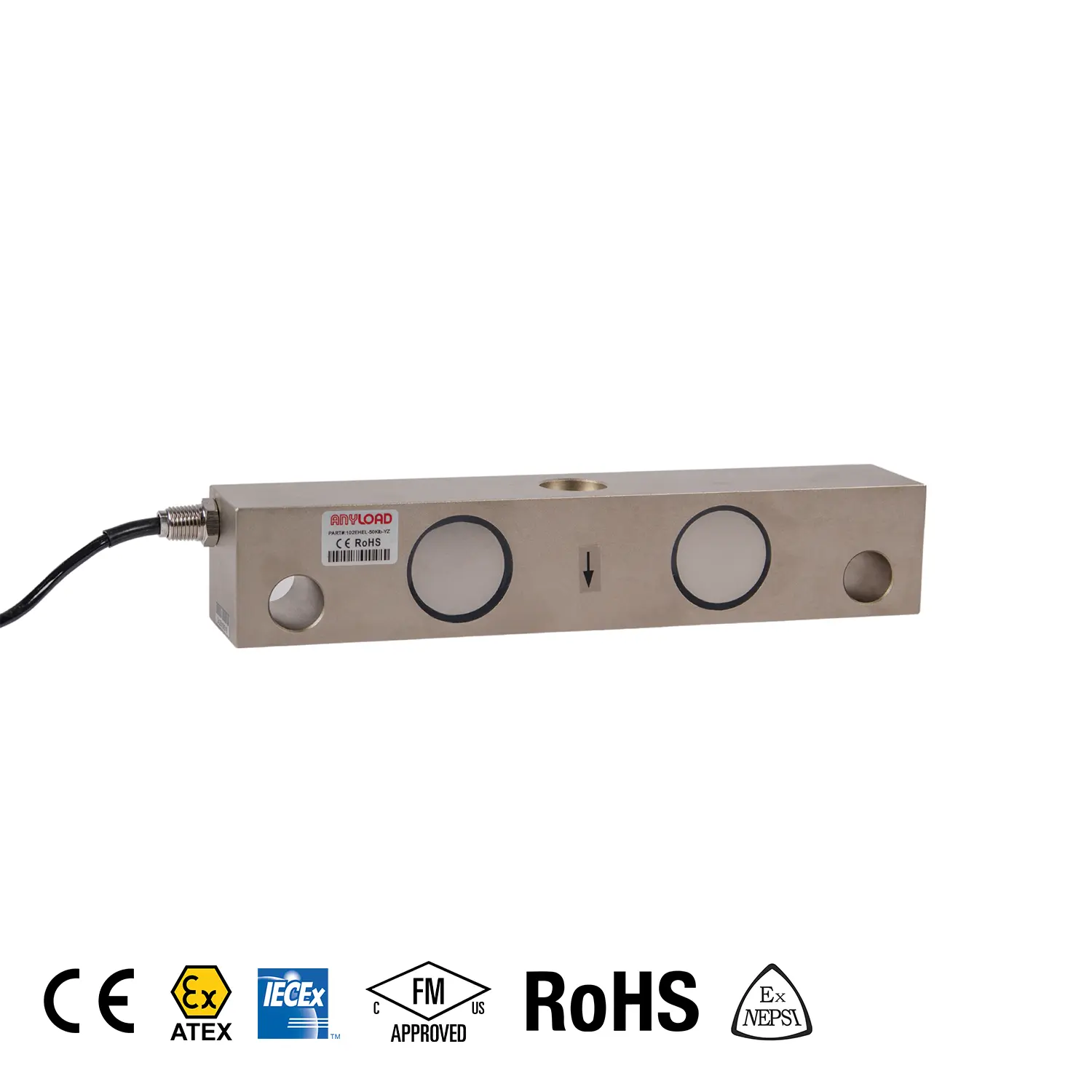

102EHEL Double Ended Beam Load Cell

The ANYLOAD 102EHEL is a nickel-plated alloy steel double ended beam load cell designed for high-capacity force and weight measurement. Offered in 40Klb and 50Klb capacities, it delivers a rated output of 3.0 mV/V with a zero balance within ±0.02 mV/V. Nonlinearity, repeatability, hysteresis, and 30-minute creep are all held to within a few hundredths of a percent of full scale, giving engineers and OEM designers the accuracy and stability needed to build dependable weighing and force-measurement systems. The load cell is environmentally sealed to IP67 and rated for a safe overload of 150% and a breaking overload of 300% of full scale.

Mounting hardware is ordered separately, and the 102EHEL-(40-50)Klb-PARTS mounting kit includes two PIN-101 pins, one PIN-102 pin, and four RING-101 rings. The datasheet provides a dimensional drawing with metric and imperial tables, including the 1/4-18 NPT thread, along with a clear cable color code: red for Exc+, black for Exc-, green for Sig+, white for Sig-, and bare for shield. It also documents the electrical and environmental specifications: 700 ohm input and output resistance, recommended excitation of 10V (15V maximum), and a compensated temperature range of -10°C to 50°C (14°F to 122°F). With everything needed to specify, wire, and mount the load cell in one document, integration can proceed without guesswork.

The 102EHEL is RoHS compliant, and ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix. The datasheet also includes an interchangeable reference that cross-references Coti Global (CG-STR) and Epelsa (STR) models, helping dealers, service technicians, and procurement teams quickly find a direct ANYLOAD replacement.

See more

- +

Features

  • Rated Capacities: 40Klb, 50Klb
  • Material: Alloy steel
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request

Specifications

Rated Capacities 40Klb, 50Klb
Full Scale Output 3.0mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.015%
Hysteresis Error < ± 0.020%
Creep in 30 minutes < ± 0.020%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally Sealed
IP Rating IP67

Interchangeable

Coti Global CG-STR
Epelsa STR
