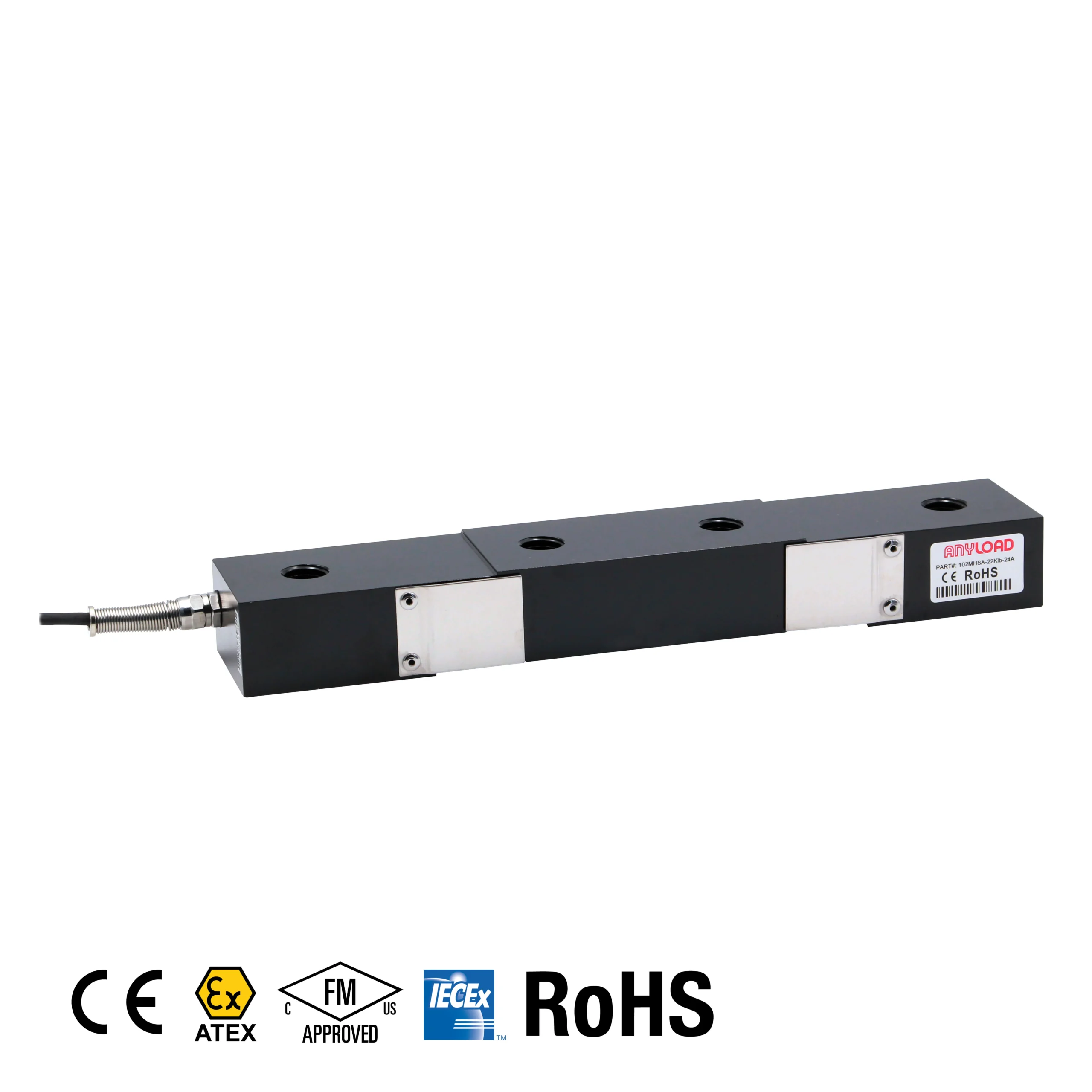

102MH-AA Double Ended Beam Load Cell
The 102MH-AA is a high safety factor load cell for onboard weighing applications. The EPD coating is field tested to resist fertilizer corrosion. It is low-profile and designed to easily integrate into mobile weighing systems, especially in agricultural equipment. Can be customized to meet specific dimensional and performance requirements.
- Designed for On-Board Weighing applications
- Side force and uplift protection
- Highly corrosion resistant
- Element Material: Alloy steel, Nickel Plated, Black Electrophoretic Plating
- Rated Capacity: 22Klb
- Full Scale Output: 2.0mV/V ± 0.5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Features
- Designed for On-Board Weighing applications
- Side force and uplift protection
- Highly corrosion resistant
- Element Material: Alloy steel, Nickel Plated, Black Electrophoretic Plating
- Rated Capacity: 22Klb
- Full Scale Output: 2.0mV/V ± 0.5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 22Klb |
|---|---|
| Full Scale Output | 2.0 mV/V ± 0.5% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.1% |
| Repeatability | < ± 0.1% |
| Hysteresis Error | < ± 0.1% |
| Creep in 30 minutes | < ± 0.1% |
| Input Resistance | 770Ω ± 50Ω |
| Output Resistance | 700Ω ± 5 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -15°C to 60°C/5°F to 140°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
