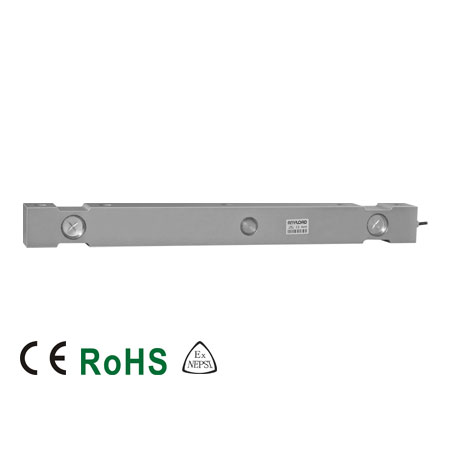

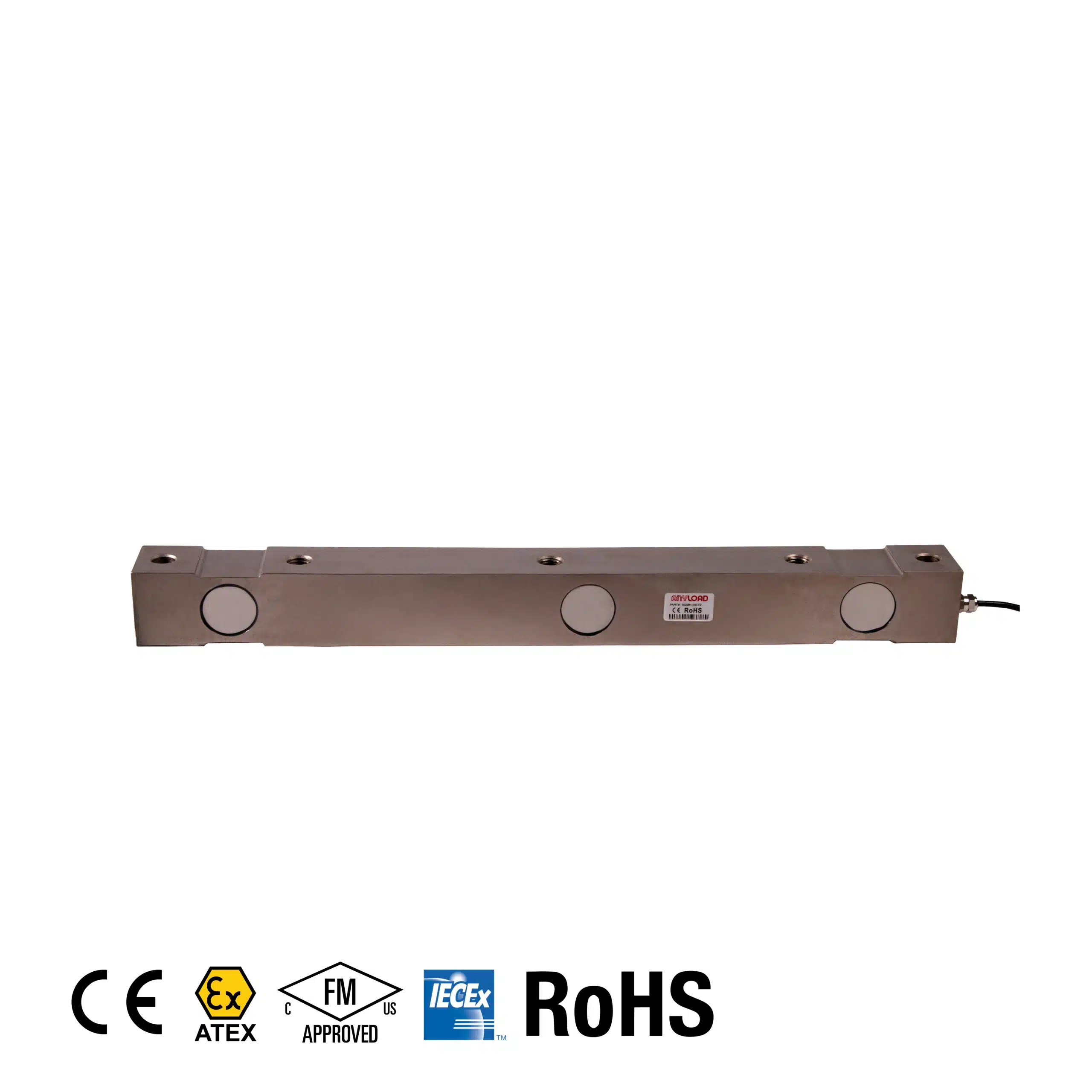

102MH Double Ended Beam Load Cell

Description:

The 102MH is a heavy-duty medium-capacity double-ended beam load cell with IP67 water resistance. This model is particularly well-suited to onboard weighing and weighing-in-motion applications.

Features:

  • Material: Alloy steel
  • Rated Capacity: 25t
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE, RoHS and Ex certified
Rated Capacity 25t
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range 30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded sealed
IP Rating IP67
