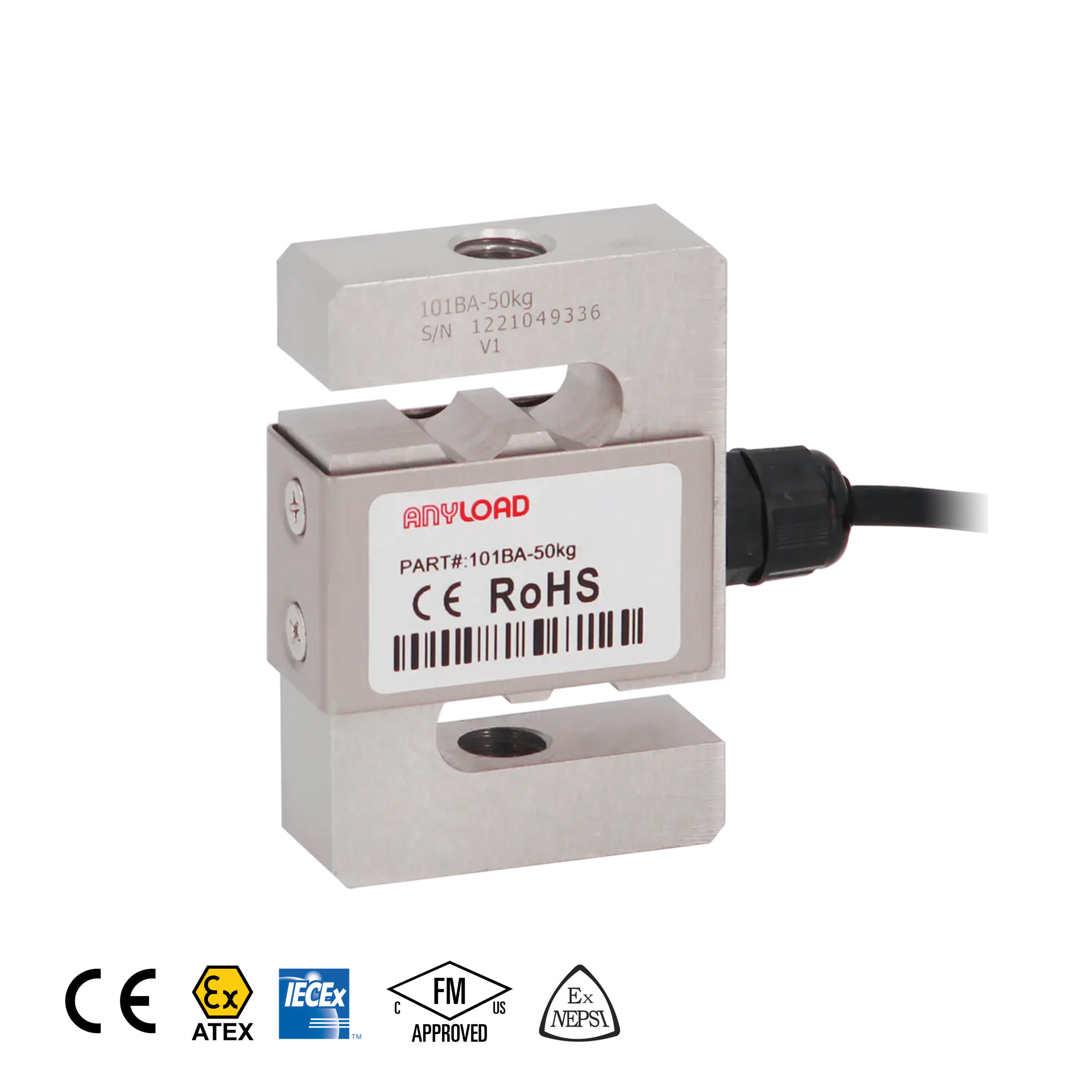

101BA S-Beam Load Cell
The ANYLOAD 101BA is a high-precision S-beam load cell designed for tension and compression applications. Made from Aluminum, it offers excellent stability, reliability, and a wide range of capacities, making it ideal for industrial weighing systems, batching, and force measurement setups.
- Material: Aluminium
- Rated Capacities: 10kg, 20kg, 50kg, 100kg, 200kg
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Features
- Material: Aluminium
- Rated Capacities: 10kg, 20kg, 50kg, 100kg, 200kg
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS, Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 10kg, 20kg, 50kg, 100kg, 200kg |
|---|---|
| Full Scale Output | 2.0 mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 400Ω ± 25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
