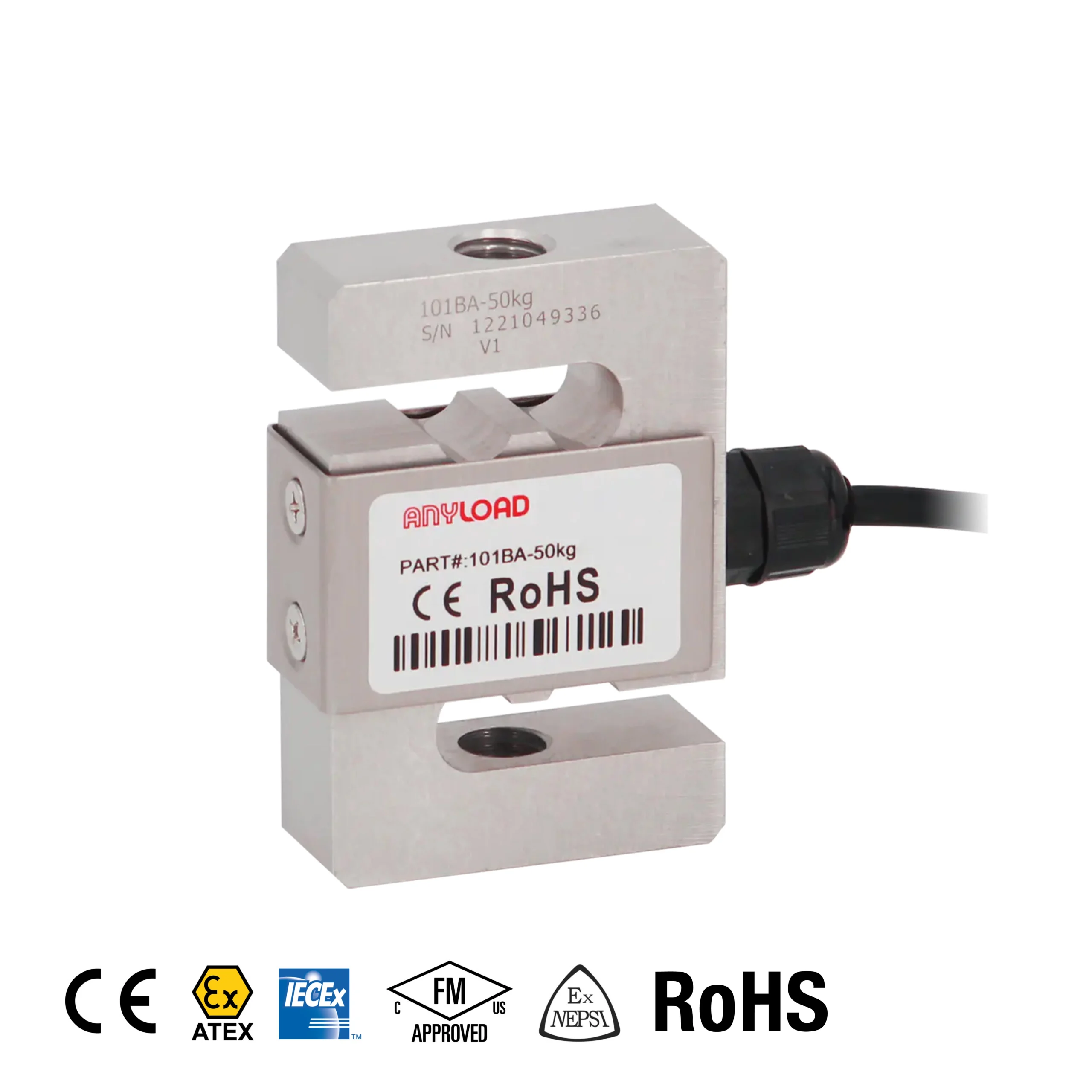

The ANYLOAD 101BA is a clear anodized aluminum S-beam load cell designed for accurate, repeatable load measurement. It is offered in five rated capacities, from 10 kg to 200 kg, with a full scale output of 2.0 mV/V. Nonlinearity, repeatability, and hysteresis error are each held to within 0.017% of full scale, and creep over 30 minutes is within 0.023%, giving engineers and OEM designers dependable performance. The environmentally sealed construction carries an IP67 rating, and the cell is protected by a safe overload of 150% and a breaking overload of 300% of full scale.
Installation is straightforward, with M12 x 1.75 threads for mounting and compact dimensions of 76.2 mm (3.00 in) in height, 50.8 mm (2.00 in) in length, and 22.6 mm (0.89 in) in width. A 3 m cable with a 5.1 mm diameter is standard, and the color code is clearly defined: red for excitation positive, black for excitation negative, green for signal positive, white for signal negative, and a bare shield wire. The datasheet documents input resistance of 400 ohms and output resistance of 350 ohms, recommended excitation of 10 V (15 V maximum), and a compensated temperature range of -10°C to 50°C (14°F to 122°F). Every rated capacity weighs approximately 0.6 kg, so you can specify, wire, and mount the 101BA without guesswork.
The 101BA is RoHS compliant, and ATEX, FM, and IECEx approved versions are available using the “-Ex” part number suffix. Part numbers follow a simple capacity-based format, from 101BA-10kg through 101BA-200kg, which helps dealers, service technicians, and procurement teams identify and order the correct rating quickly.
