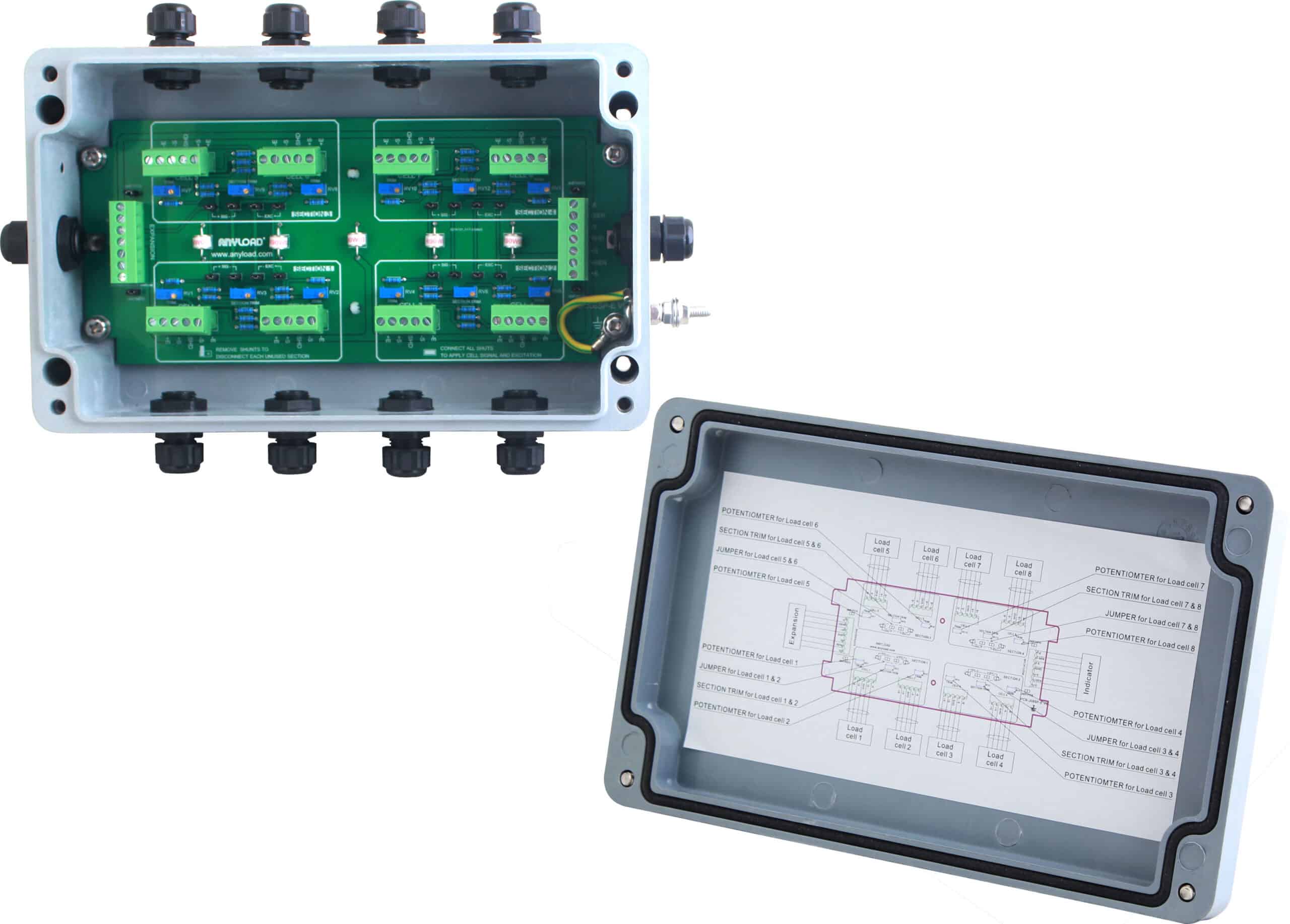

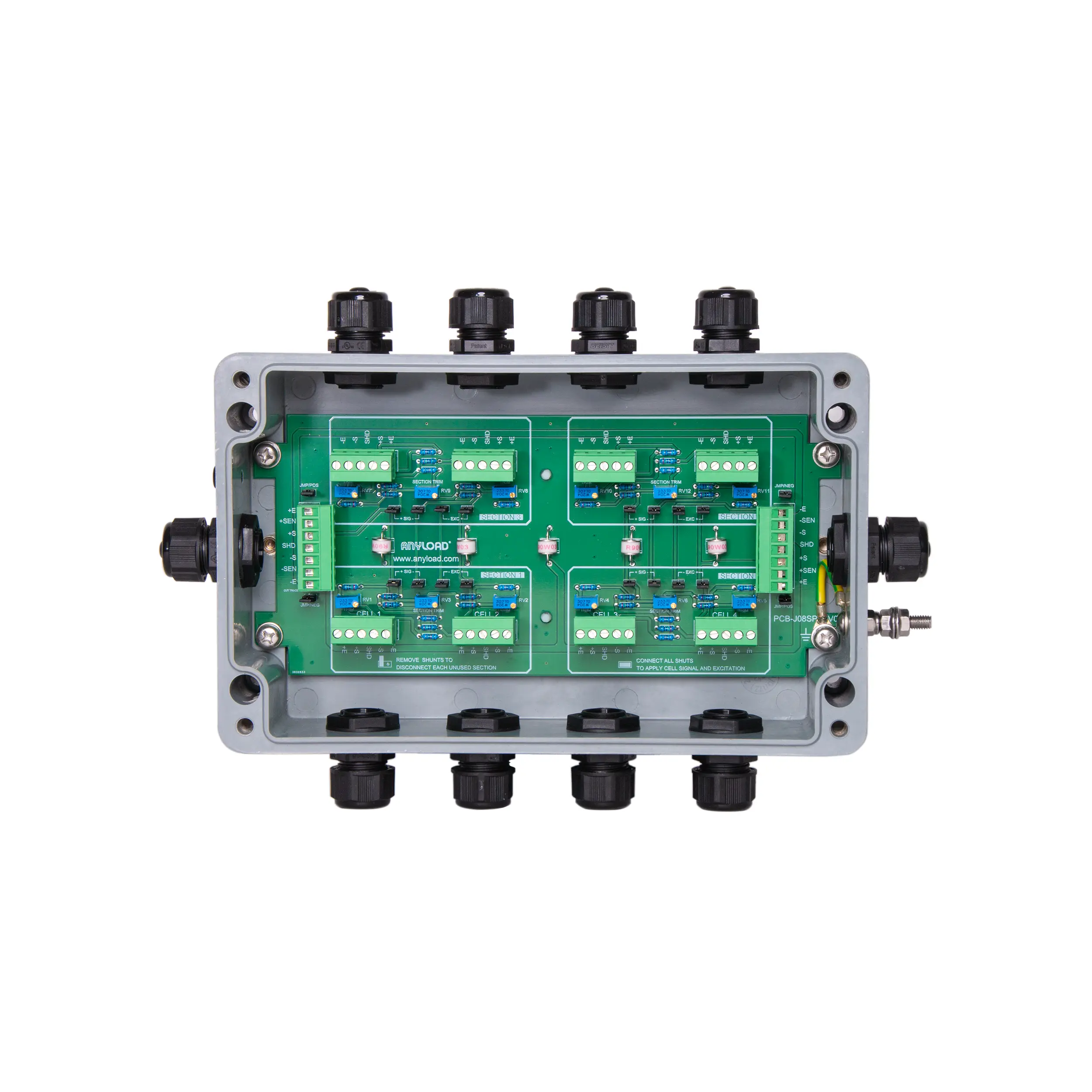

ANYLOAD J08EP-E, J08SP-E junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J08EP-E, J08SP-E is housed in a fiberglass reinforced polyester enclosure purpose-built to prevent condensation and saltwater damage. It is designed to accommodate two to eight parallel load cell connections with an expansion port for wiring additional junction boxes. The J08EP-E, J08SP-E load cell junction box is easy to install with quick removable load cell connectors and with our captive screw design securing the cover. This model equips with lightning/over voltage protection.
Number of cells: 2-8 single cells, only an even number of load cells ( eg. 2, 4, 6, 8)
Section or individual cell with signal and excitation trim
Lightning/Overvoltage Protection
Quick removable load cell connectors
Switchable On/Off power per channel
Equipped with independent potentiometers
Preinstalled GORE breather vent
Conformal coated circuit board
Expansion port to/for additional J-Box
“No-loss” captive screw design
IP Rating: IP67
Junction Box Grounding: Connect the external Grounding Stud directly to earth ground for proper surge protection
Cable Shielding: Run load cell shield uninterrupted through the junction box. Ground only at the indicator (instrument power ground) to prevent ground loops
