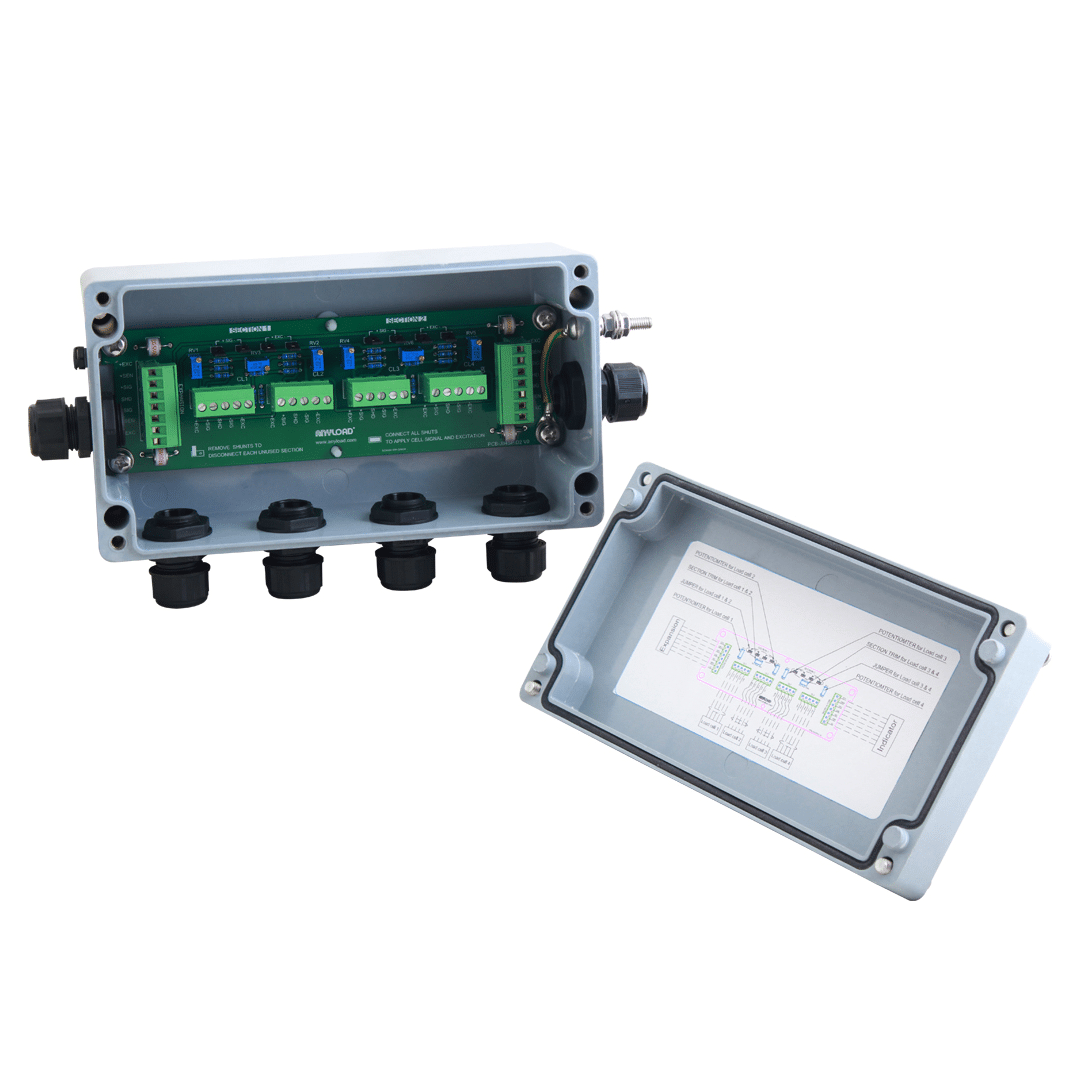

J04SP-E Junction Box

ANYLOAD J04SP-E junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment.  The J04SP-E is housed in a fiberglass reinforced polyester enclosure purpose-built to prevent condensation and saltwater damage. It is designed to accommodate two to eight parallel load cell connections with an expansion port for wiring additional junction boxes.  The J04SP-E load cell junction box is easy to install with quick removable load cell connectors and with our captive screw design securing the cover. This model equips with lightning/over voltage protection.

  • Enclosure Material: Fiberglass Reinforced Polyester
  • Number of cells: 2-4 single cells
  • Lightning/Over voltage protection
  • Preinstalled GORE breather vent
  • Conformal coated circuit board
  • Expansion port to/for additional J-Box
  • IP rating: IP67
Number of cells 2-4 single cells
Input Cable Fittings M20: 6mm-12mm diameter cable
Output Cable Fittings M20: 6mm-12mm diameter cable
Trimming Options Signal trim
Enclosure Material Fiberglass Reinforced Polyester
IP Rating IP67
Load Cell Resistance Signal Trim
350Ω 3.6% of output
700Ω 6.3% of output
1000Ω 8.0% of output
