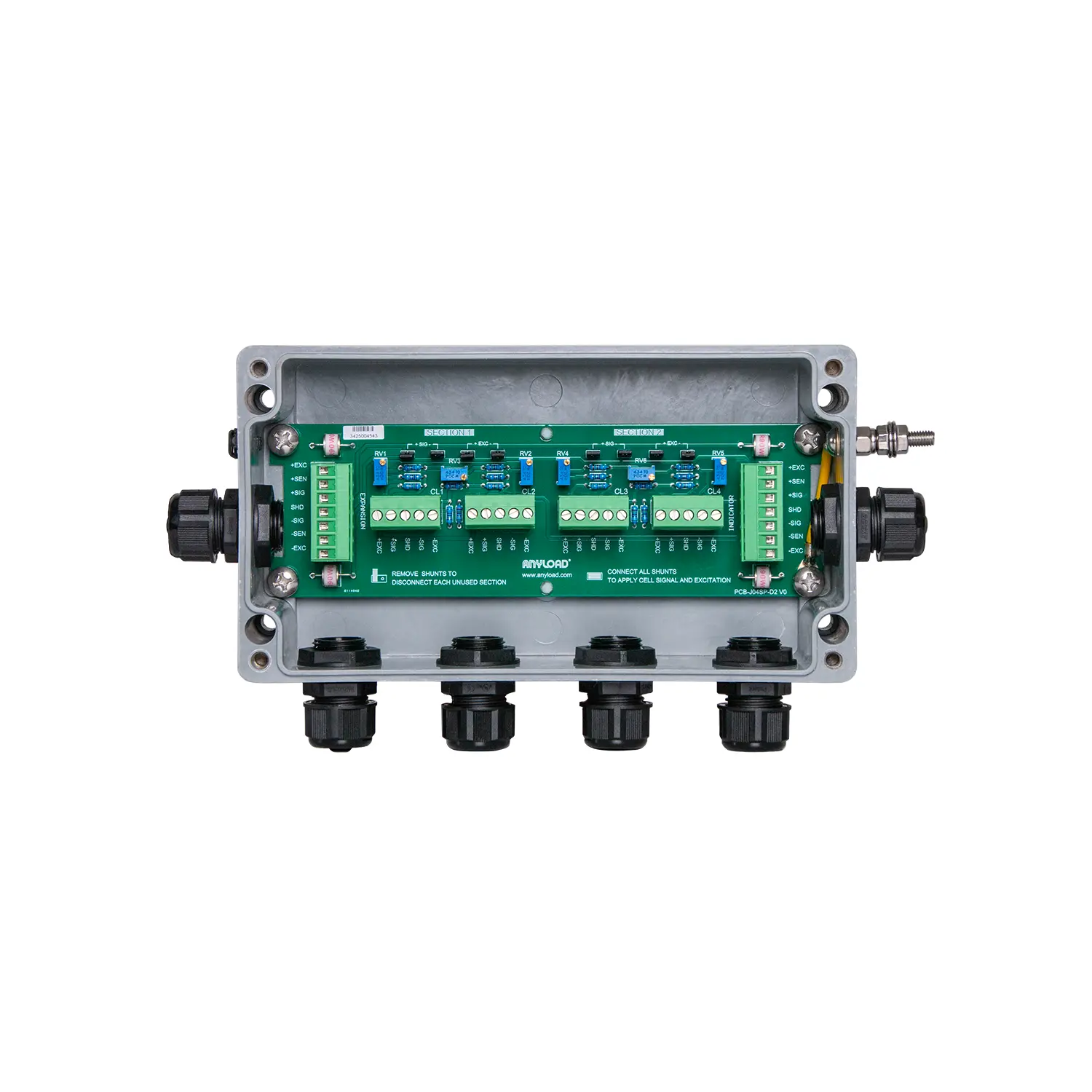

ANYLOAD J04EP-E, J04SP-E junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J04EP-E, J04SP-E is housed in a fiberglass reinforced polyester enclosure purpose-built to prevent condensation and saltwater damage. It is designed to accommodate two to four parallel load cell connections with an expansion port for wiring additional junction boxes. The J04EP-E, J04SP-E load cell junction box is easy to install with quick removable load cell connectors and with our captive screw design securing the cover. This model equips with lightning/over voltage protection.
Number of cells: 2-4 single cells, only an even number of load cells ( eg. 2, 4)
Lightning/Over voltage protection
Preinstalled GORE breather vent
Conformal coated circuit board
Expansion port to/for additional J-Box
IP rating: IP67
Junction Box Grounding: Connect the external Grounding Stud directly to earth ground for proper surge protection
Cable Shielding: Run load cell shield uninterrupted through the junction box. Ground only at the indicator (instrument power ground) to prevent ground loops
