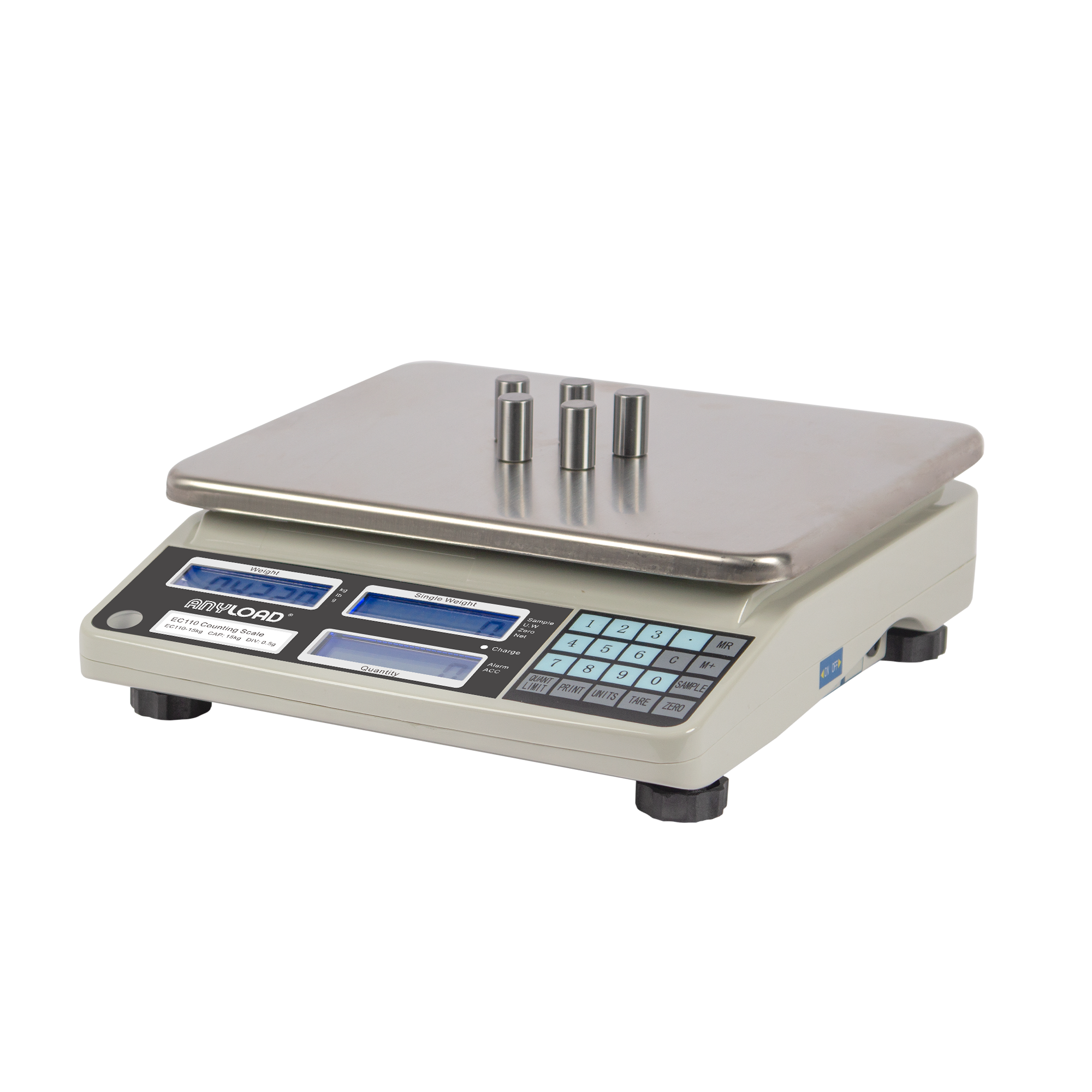

EC110 Counting Scale
The Anyload EC110 Counting Scale is a reliable, high-precision solution designed for fast and accurate part counting. It features a stainless steel weighing platform, three easy-to-read LCD displays with blue backlight, and a durable, dust- and moisture-resistant keyboard. With functions such as automatic weight correction, sampling, upper/lower limit alarms, and quantity accumulation, the EC110 is ideal for warehouses, factories, and inventory control applications. It operates on AC power or a long-lasting rechargeable battery, making it convenient for both stationary and portable use.
- Precision counting function
- Unit of measure: g/kg, lb
- Large, easy-to-read LCD display with blue backlight (options for backlight status)

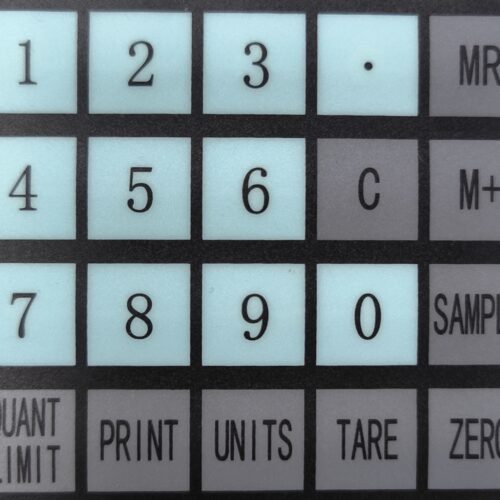

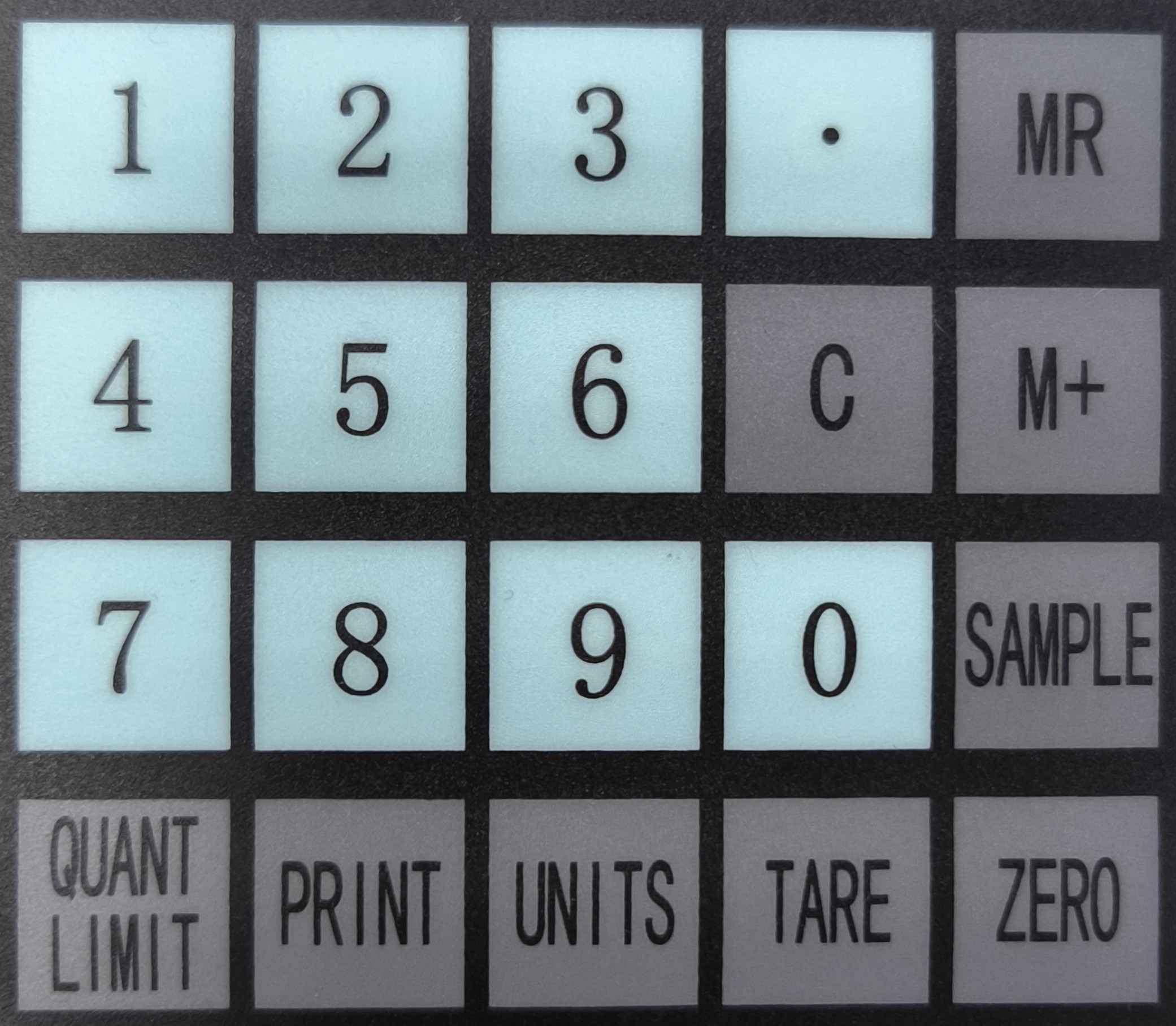

- Dust and damp proof keyboard
- AC/DC power source (large capacity battery ensures long-term use without A/C power
- Calibration functions: calibration locking (anti-tampering, avoids parameter modification), external calibration
- Single weight automatic correction, linearity correction
- Sampling functions: single weight setting, quantity setting
- Quantity functions: quantity warning, accumulating function
- Upper and lower limit alarm function
- Standard RS-232 interface
Features
- Precision counting function
- Unit of measure: g/kg, lb
- Large, easy-to-read LCD display with blue backlight (options for backlight status)
- Dust and damp proof keyboard
- AC/DC power source (large capacity battery ensures long-term use without A/C power
- Calibration functions: calibration locking (anti-tampering, avoids parameter modification), external calibration
- Single weight automatic correction, linearity correction
- Sampling functions: single weight setting, quantity setting
- Quantity functions: quantity warning, accumulating function
- Upper and lower limit alarm function
- Standard RS-232 interface
Specifications
| Part# | EC110-15kg | EC110-30kg |
|---|---|---|
| Capacity | 15kg | 30kg |
| Display Size | 3 separate 2.81″ 6-digit displays with high-contrast blue backlight | |
| Platform Size | 9.37 × 11.26 in / 238 × 286 mm | |
| Scale Dimensions | 12.20 × 11.22 × 3.94 in / 310 × 285 × 100 mm | |
| Platform Material | Stainless Steel | |
| Enclosure | ABS | |
| Self Weight | 8.82 lb / 4.0 kg | |
| Power Source | Built-in rechargeable battery / AC adaptor 12V 500 mA (included) | |
| Operating Temp. | 32°F to 104°F / 0°C to 40°C | |
| Shipping Weight (approx.) | 10.8 lb / 4.9 kg | |
