Custom Made Load Pins
ANYLOAD tailor-made load pins are designed for the measurement of tension or compression across a wide range of weighing applications. Most load pins are made using high tensile stainless steel suitable for applications in the exposure of chemicals, dust, lightning, or prolonged submersion in saltwater. The load pins are offered from capacity ratings of 10kg to 1,000t, however, the nature of this type of product means that most load pins are manufactured to meet each customerโs needs and requirements.
View our Standard 535TS Load Pin to check if the standard specifications meet your requirements, or submit a request for custom load pin.
To submit a Custom Load Pin Request, please click here to Download a fillable form then upload the completed form with any supplementing documents below.ย

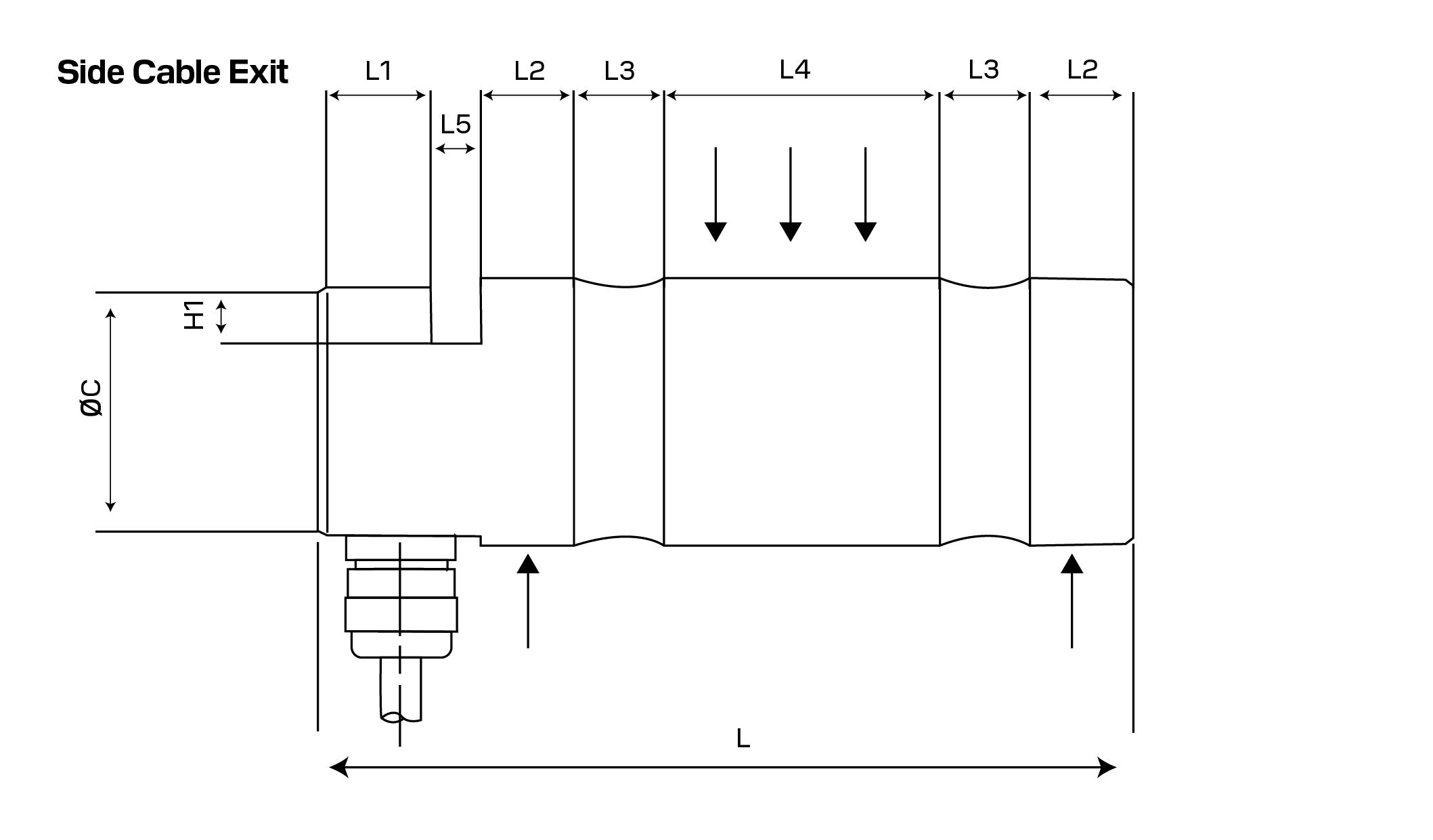

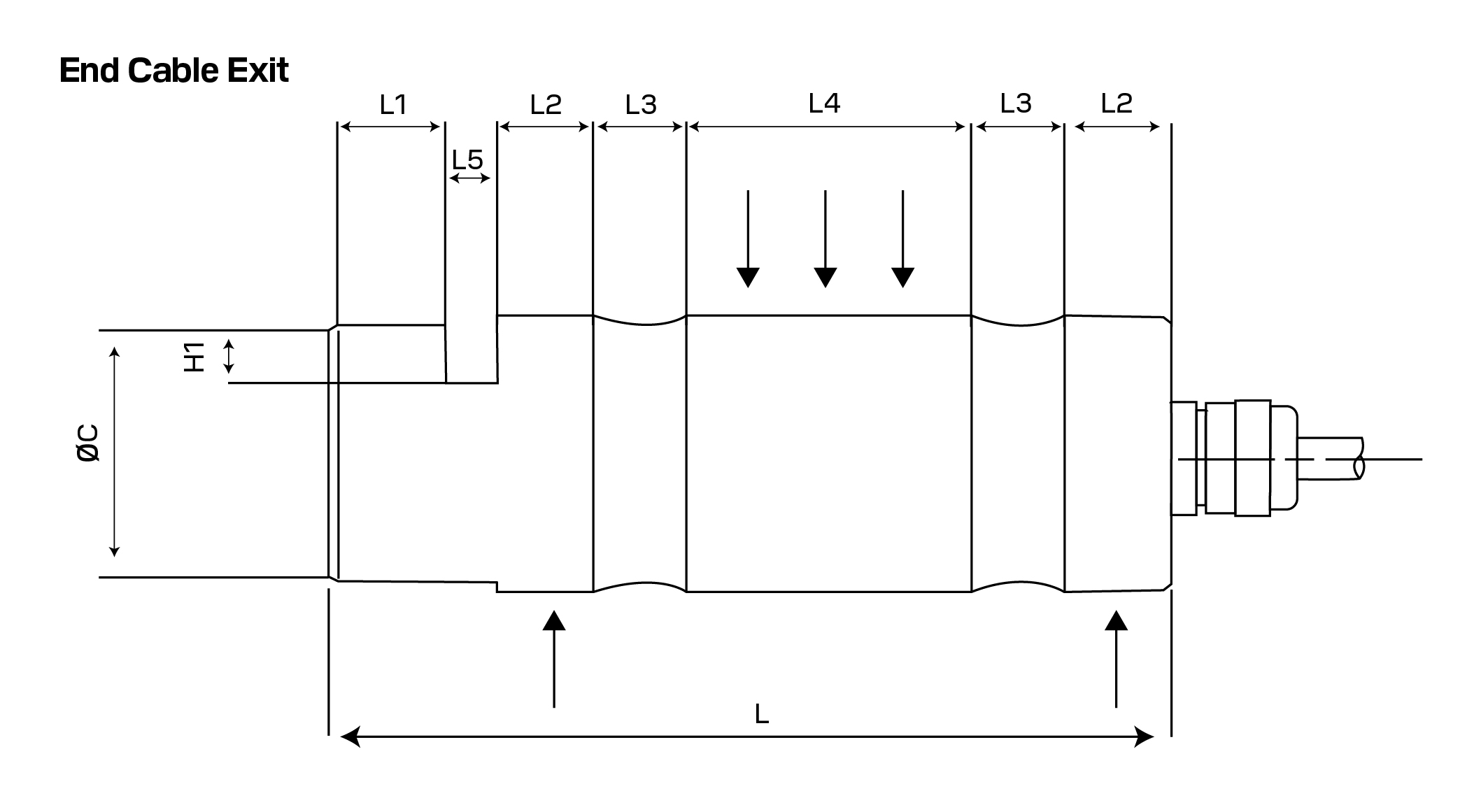

Use this form to specify your custom load pin requirements, including dimensions, load capacity, cable types, output signals, and environmental ratings. Complete the necessary fields to help us design a load pin tailored to your application. Submit the filled form and our team will follow up shortly.
| Full Scale Output | 1mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.50% |
| Repeatability | < ยฑ 0.30% |
| Hysteresis Error | < ยฑ 0.50% |
| Creep in 30 minutes | < ยฑ 0.20% |
| Input Resistance | 400ฮฉ ยฑ 20ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.020% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.020% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | -30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
