535TS Load Pin, Stainless Steel, Environmentally Sealed, IP67

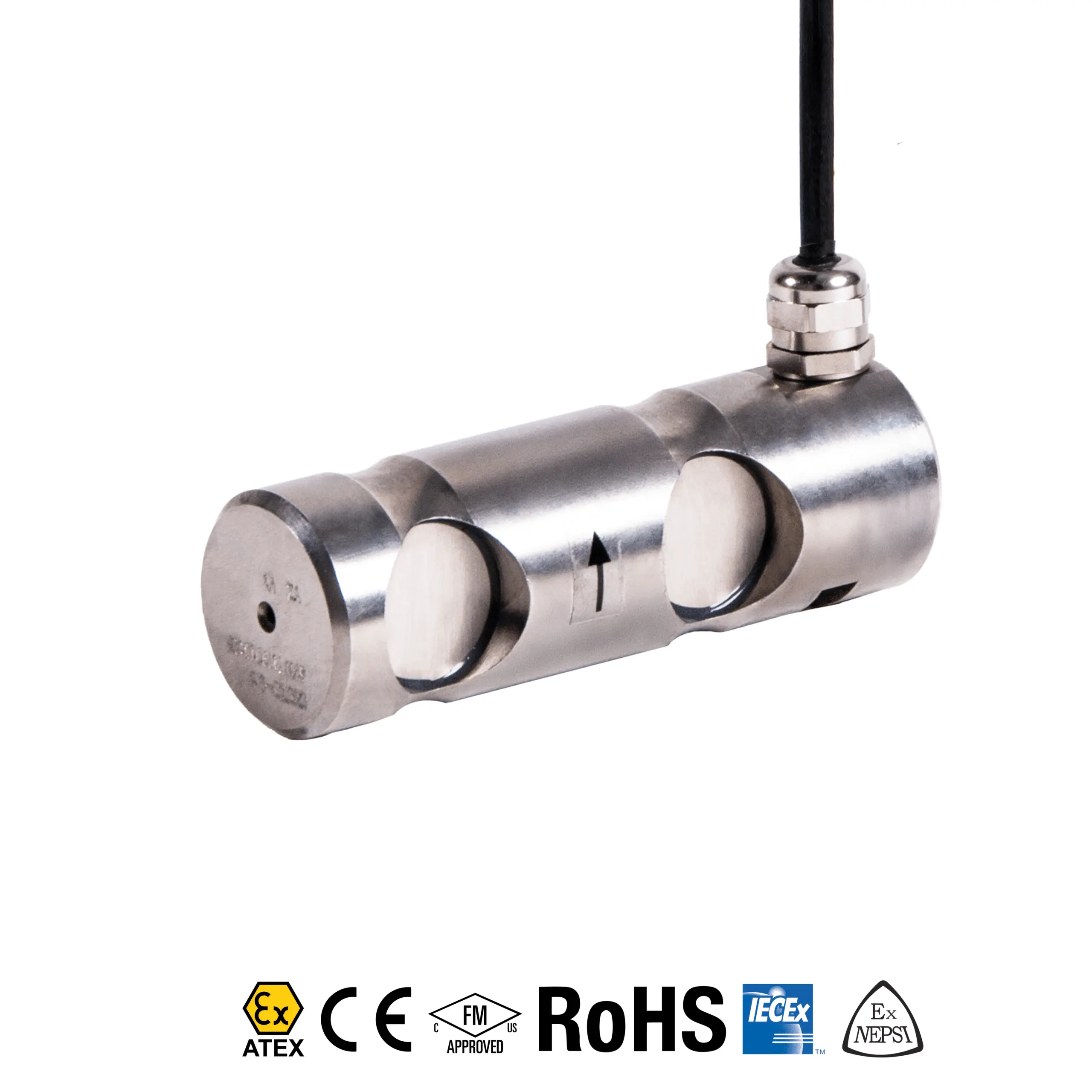

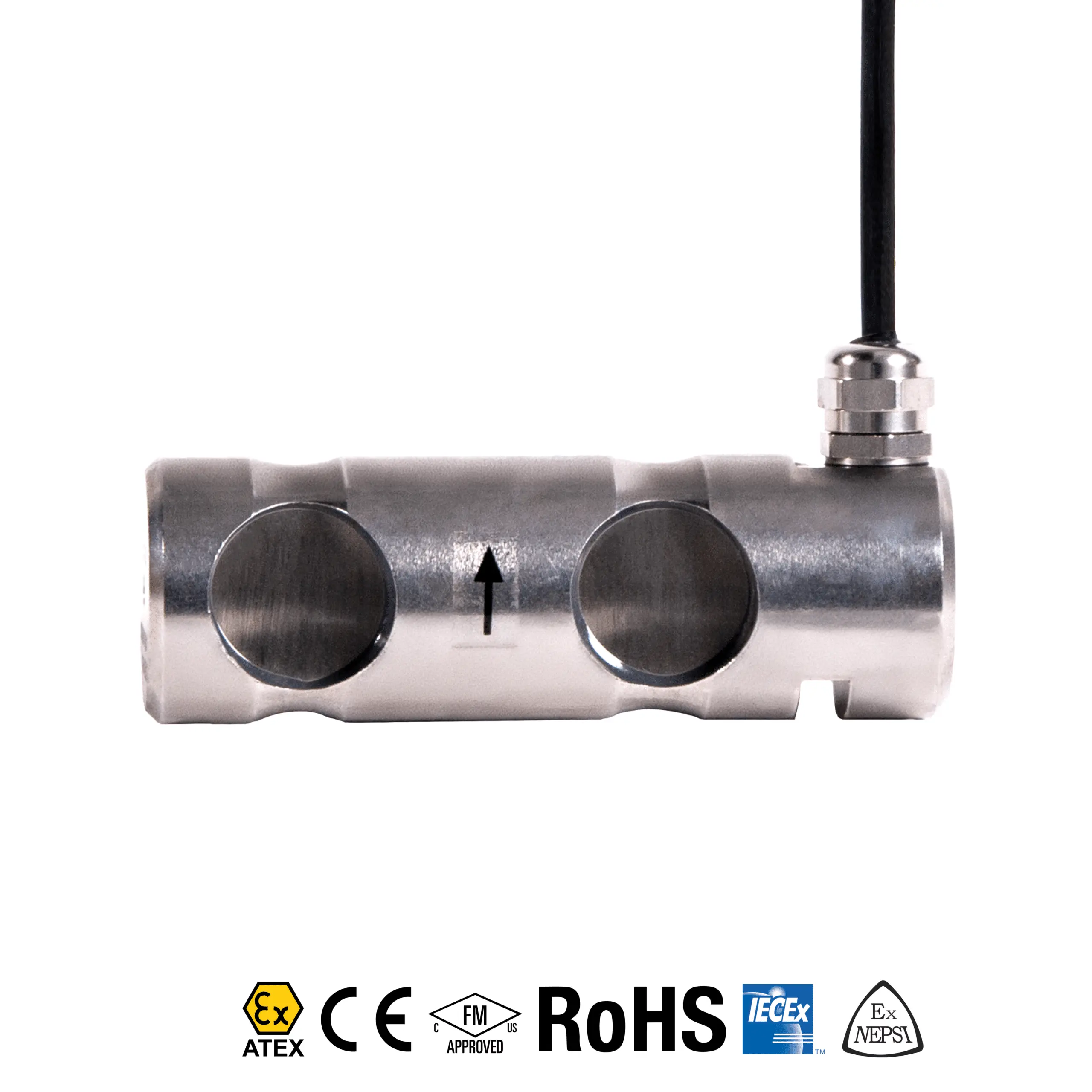

535TS Load Pin

  • Material: Stainless steel
  • Rated Capacities: 2t, 5t, 10t, 20t, 40t, 70t, 100t
  • Full Scale Output: 1mV/V ± 10%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 400% of full scale
  • IP Rating: IP67
  • CE, RoHS and Ex certified
Clear
Product Enquiry
SKU: N/A Categories: , ,
Rated Capacity 2t, 5t, 10t, 20t, 40t, 70t, 100t
Full Scale Output 1mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.50%
Repeatability < ± 0.30%
Hysteresis Error < ± 0.50%
Creep in 30 minutes < ± 0.20%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.020% of Cn/k
Temperature Effect on Zero Balance < ± 0.020% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 400% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- 535TS, (2-20)t

pdf- 535TS, (40-400)t

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity
