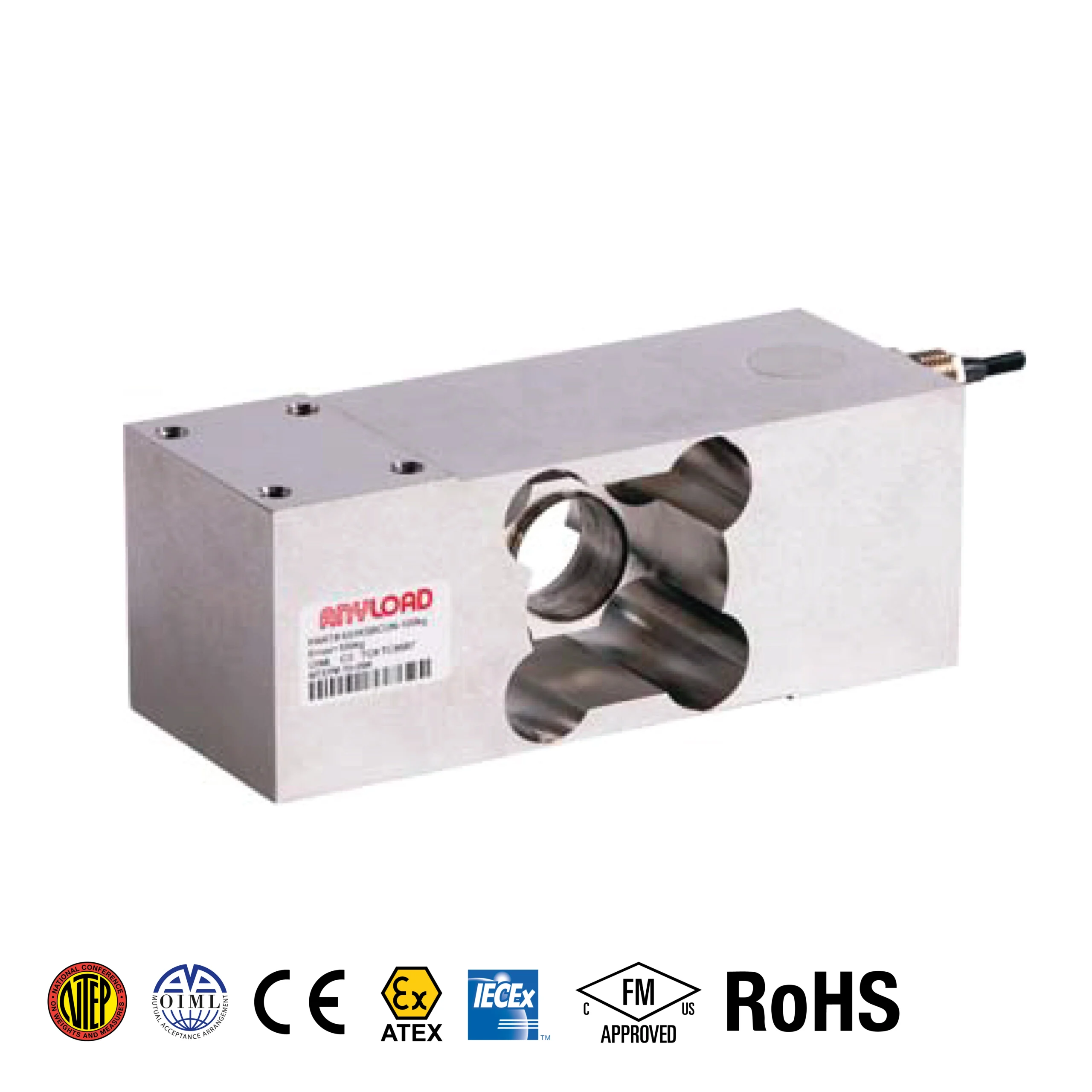

651KSBCUN-A Single Point Load Cell
High-precision single point load cells ideal for platform scales and bench scales. The ANYLOAD 651KSBCUN-A offers durable stainless steel material and IP68/IP69K welded seal protection for reliable performance in industrial environments.
Features:
- Material: 17-4PH Stainless Steel
- Rated Capacities: 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 750kg, 1t, 1.5t
- Full Scale Output: 2.0mV/V ± 5%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- Seal Type/IP Rating: Welded Seal/IP68/IP69K
| Rated Capacities | 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 750kg, 1t, 1.5t |
| Reference Max. Platform Size | 800mm x 800mm |
| Full Scale Output | 2.0mV/V ± 5% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 1100Ω ± 50 |
| Output Resistance | 960Ω ± 50 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 (50V DC) GΩ |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded sealed |
| IP Rating | IP68/IP69K |
| Manufacturer | Model 651KSBC-A (Metric Thread) |
| Anyload | 108UA* |
| Flintec | PCB |
| Vishay Tedea-Huntleigh | 1250* |
| Manufacturer | Model 651KSBCUN-A (Imperial Thread) |
| Anyload | 108UAUN* |
| Flintec | PCB |
| Vishay Tedea-Huntleigh | 1250* |
*108UA/108UAUN and 1250 are of Aluminum
