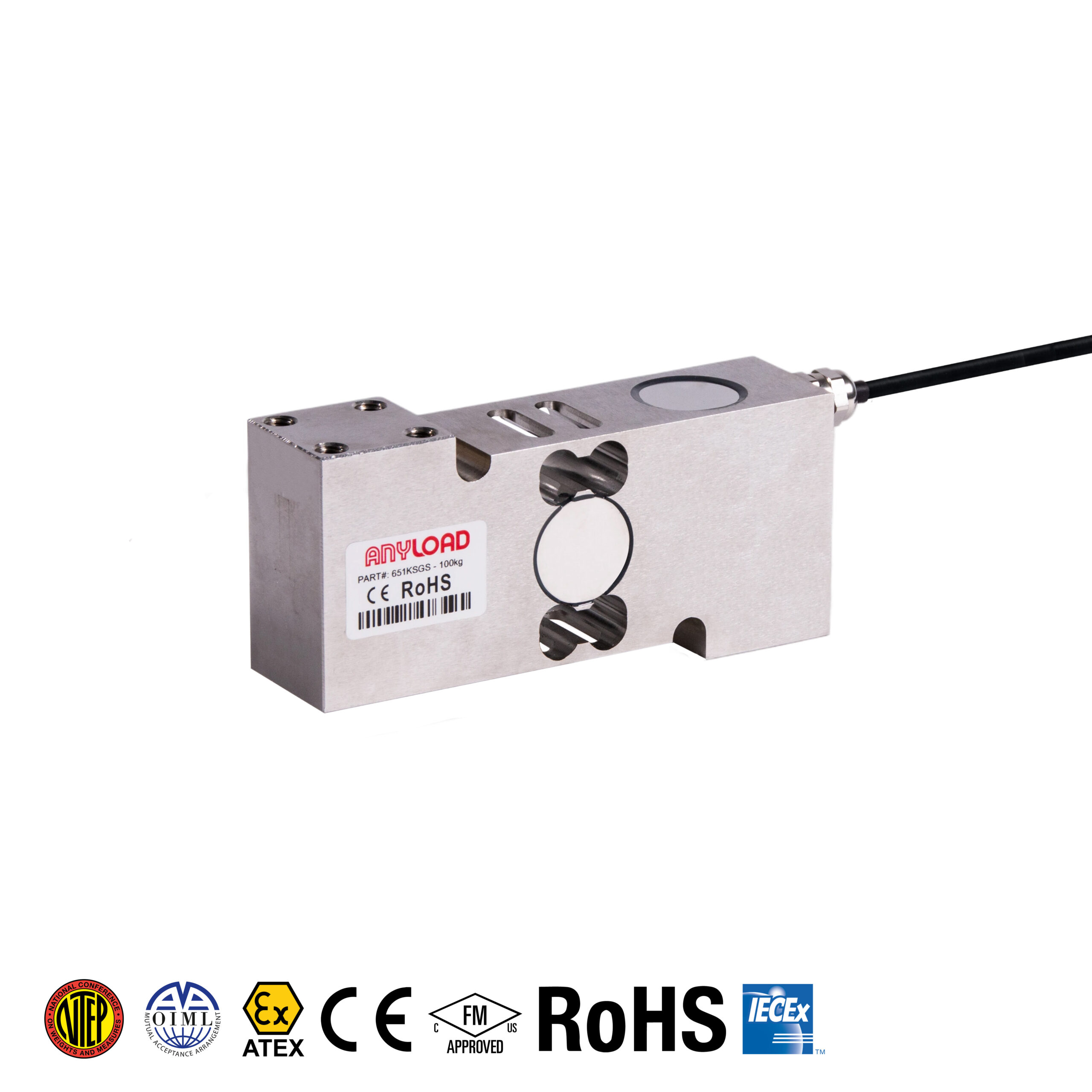

651KSGS Single Point Load Cell
The ANYLOAD 651KSGS is an environmentally sealed, IP66-rated single point load cell built from 17-4PH stainless steel for reliable performance in demanding industrial weighing applications. Available in capacities of 100kg, 250kg, and 500kg, it delivers a full scale output of 2.0 mV/V with non-linearity and hysteresis both within ±0.05%. With a compensated temperature range of -10°C to 50°C (14°F to 122°F), 150% safe overload protection, and 300% breaking overload, the 651KSGS is a robust solution for platform scales, checkweighers, and general industrial weighing systems. ATEX, FM, and IECEx approved versions are available for hazardous locations.
*The 651KSGS will be phased out and replaced by the 651KS22.
Features
- Material: 17-4PH Stainless Steel
- Rated Capacities: 100kg, 250kg, 500kg
- Full Scale Output: 2.0 mV/V ± 10%
- Environmentally Sealed / IP66
- Reference Maximum Platform Size: 600mm × 600mm
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- ATEX, FM, and IECEx approved versions available
- CE and RoHS certified
Specifications
| Rated Capacities | 100kg, 250kg, 500kg |
|---|---|
| Full Scale Output | 2.0 mV/V ± 10% |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | 651KS22: < ± 0.03%; 651KSGS: < ± 0.05% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | 651KS22: < ± 0.03%; 651KSGS: < ± 0.05% |
| Creep in 30 minutes | < ± 0.03% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Element Material | 17-4PH Stainless Steel |
| Recommended Excitation | 10V (15V Maximum) |
| Reference Max. Platform Size | 600mm × 600mm |
| Insulation Resistance | > 2GΩ [50V DC] |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | 651KS22: Welded Seal / IP68/IP69K; 651KSGS: Environmentally Sealed / IP66 |
| Cable Color Code | Exc+ Red, Exc- Black, Sig+ Green, Sig- White, Shield Bare |
