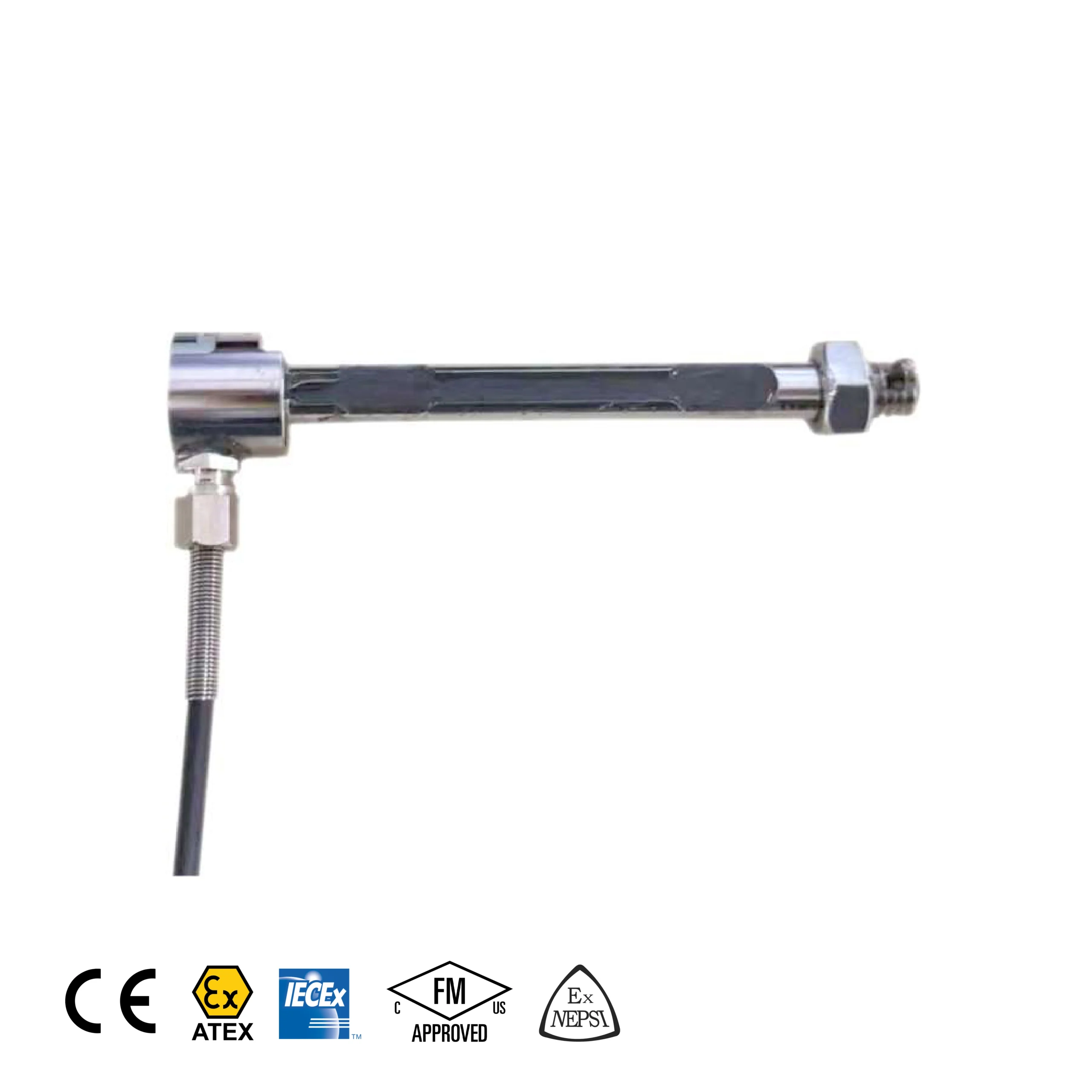

535TS42 Load Pin
The ANYLOAD 535TS42 is a high-precision tension load cell designed for dynamic force measurement in harsh industrial environments. With its compact stainless steel body, IP67-rated protection, and wide capacity range from 50โฏkg to 5,000โฏkg, itโs ideal for suspended weighing, crane scales, and mechanical scale conversions.
-
Rated capacities: 300lb
-
Stainless steel construction for enhanced durability
-
Environmentally sealed to IP64 for harsh environments
-
Safe overload: 150% of full scale
-
Ultimate overload: 300% of full scale
- FM/ ATEX/ IECEx certified optional
| Rated Capacity | 300lb |
| Full Scale Output | 1.0mV/V ยฑ 20% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | โค ยฑ 2.0% FS |
| Repeatability | โค ยฑ 2.0% FS |
| Hysteresis Error | โค ยฑ 2.0% FS |
| Creep (30 minutes) | โค ยฑ 2.0% FS |
| Input Resistance | 400ฮฉ ยฑ 50 |
| Output Resistance | 350ฮฉ ยฑ 3 |
| Recommended Excitation | 10V (15V Maximum) |
| Element Material | 17-4PH Stainless Steel |
| Insulation Resistance | โฅ2[50V DC] Gฮฉ |
| Compensated Temperature Range | -10ยฐC -50ยฐC / 14ยฐF to -122ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Protection | IP64 (environmentally sealed) |
| Material | Stainless Steel |
