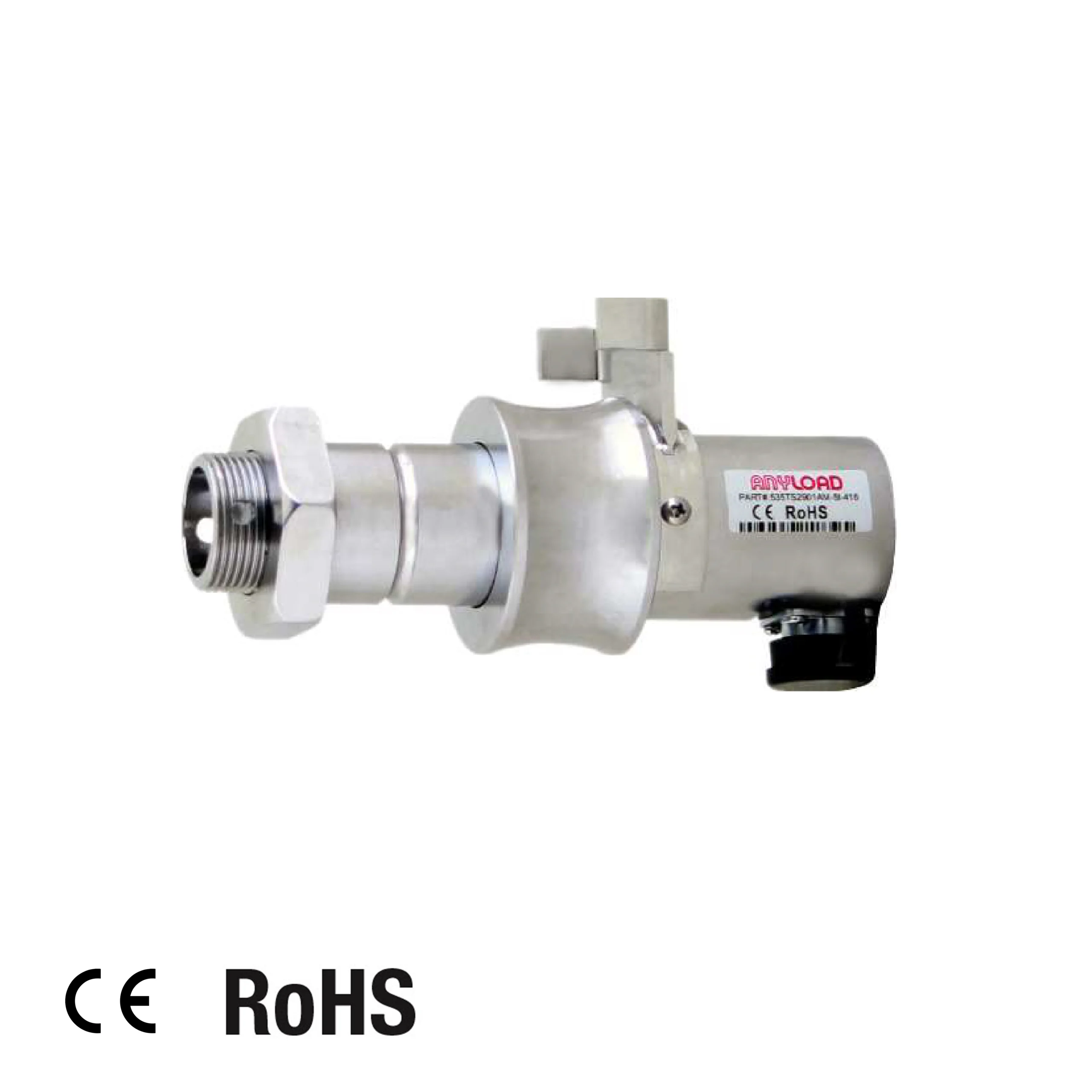

535TS2901AM Load Pin
The 535TS2901AM is a high-performance stainless steel tension load cell designed for robust and accurate force measurement in industrial weighing applications. With IP67 protection, it ensures durability in harsh environments and supports capacities from 50 kg to 5,000 kg. Ideal for suspended weighing, hoppers, and mechanical scale conversions.
-
Rated Capacity: 5t
-
Stainless steel construction for corrosion resistance
-
IP67-rated for water and dust protection
-
Integrated amplifier with digital outputs
-
Compatible with various mechanical scale conversions
-
Ideal for suspended weighing, hoppers, and force measurement
| Rated Capacity | 5t |
| Rated Output | 4-20mA* |
| Non-linearity | ≤ ± 2.0% FS |
| Repeatability | ≤ ± 0.3% FS |
| Hysteresis Error | ≤ ± 2.0% FS |
| Creep (30 minutes) | ≤ ± 1.0% FS |
| Element Material | 2Cr13 Stainless Steel |
| Recommended Excitation | 24V |
| Insulation Resistance | ≥2[50V DC] G Ω |
| Compensated Temperature Range | -40°C -40°C / -40°F – 104°F (Max 250°C) |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale (Max 500%) |
| Protection | IP67 (environmentally sealed) |
| Material | Stainless Steel |
