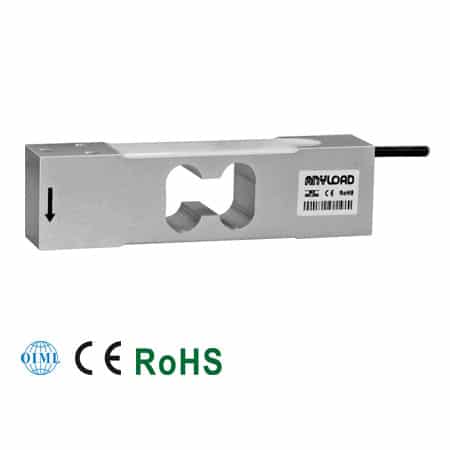

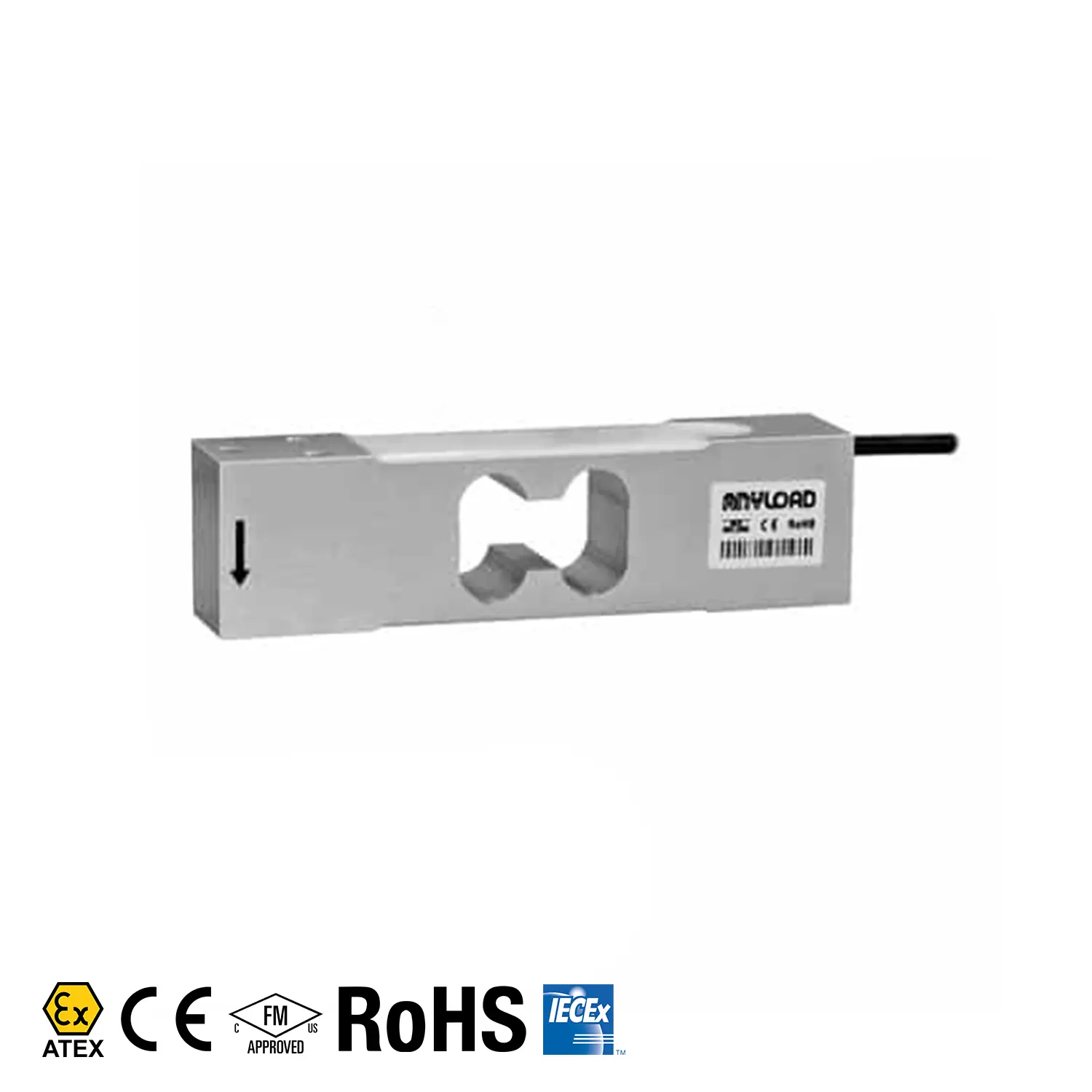

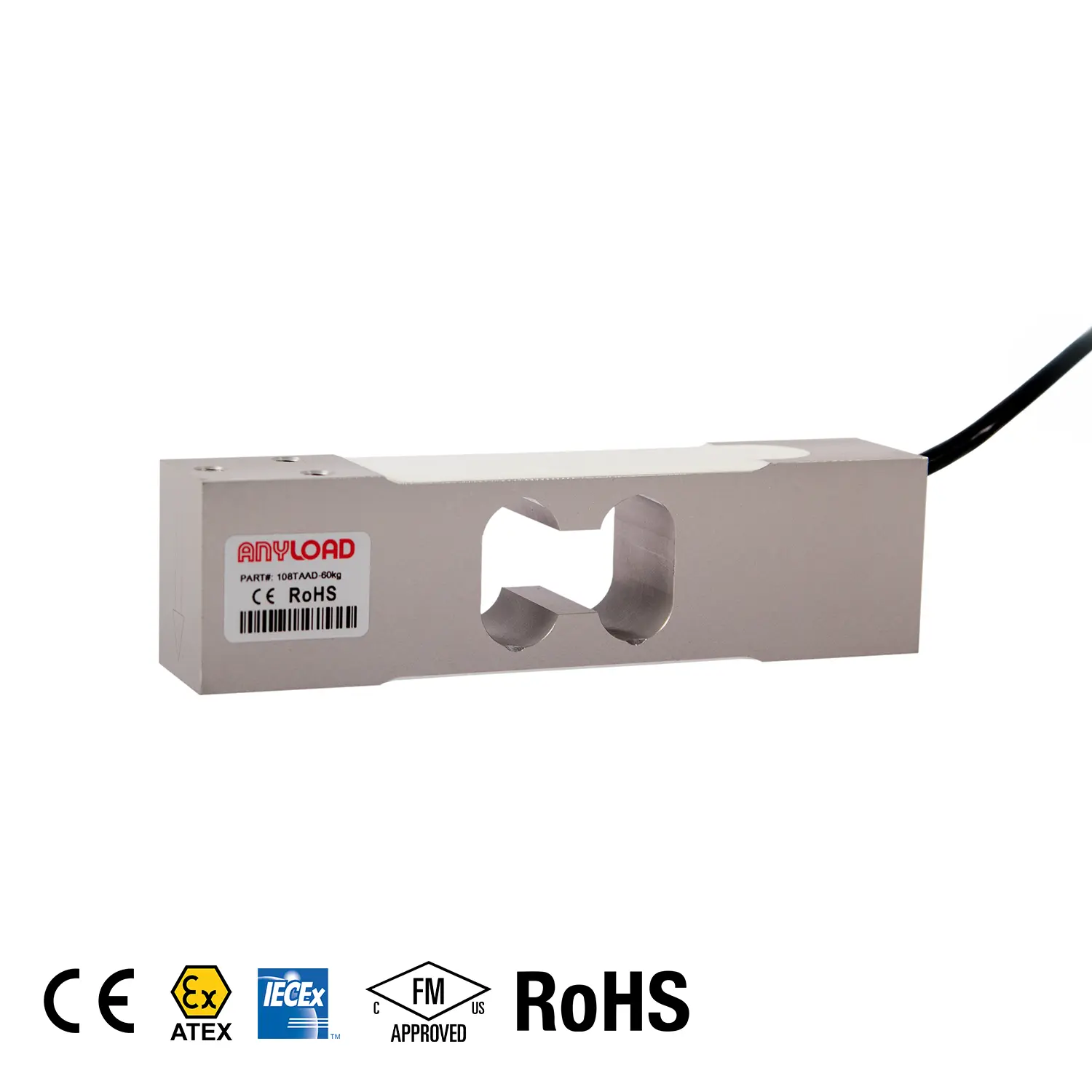

108TAAD Single Point Load Cell
Description:
The 108TAAD is an OIML-certified single-point that provides high-accuracy performance while maintaining affordability. This model is ideal for lower capacity applications, including platform scales, retail scales, process weighing, and more. The 108TAAD is interchangeable with A&D LC-4102.
Features:
- Material: Aluminum, Clear Anodized
- Rated Capacities: 30kg, 60kg, 150kg
- Full Scale Output: 1mV/V ยฑ 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3 certified from 1kg-200kg
- CE and RoHS certified
| Rated Capacities | 30kg, 60kg, 150kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 1mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 415ฮฉ ยฑ 15ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Nominal Temperature Range | –10ยฐC to 40ยฐC/14ยฐF to 104ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| A & D | LC-4102 |
