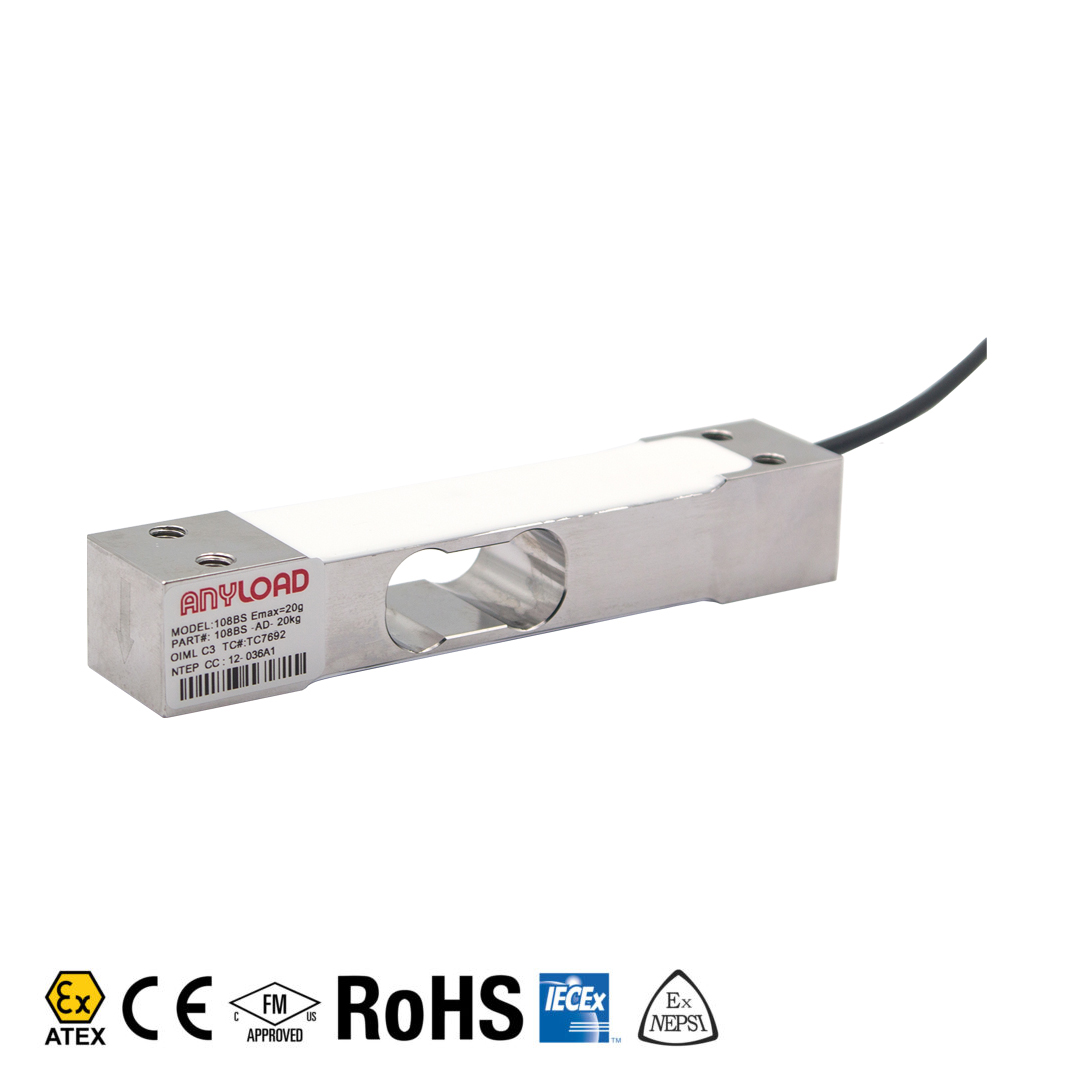

108BS-AD Single Point Load Cell
Description:
The ANYLOAD 108BS-AD is a stainless-steel single-point load cell designed for high-speed dynamic weighing. With high natural frequency and rigidity, it ensures rapid response and stable measurements in applications such as checkweighers, multi-head combination scales, and packaging systems. Rated capacities from 10 kg to 40 kg allow integration across a wide range of fast-moving industrial processes. The 108BS-AD provides excellent accuracy even under off-center loading and is environmentally sealed to IP66/IP68. It is fully interchangeable with the HBM PW6D for seamless system upgrades.
Features:
- Stainless steel, IP66/IP68 protection
- High natural frequency for fast response
- Excellent off-center and side-load accuracy
- Robust design for harsh environments
- Ideal for checkweighing and dynamic weighing
- Material: 17-4PH Stainless steel
- Rated Capacities: 10kg, 15kg, 20kg, 30kg, 40kg
- Full Scale Output: 1.5mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
| Rated Capacities | 10kg, 15kg, 20kg, 30kg, 40kg |
| Full Scale Output | 1.5mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | ± 0.017% |
| Repeatability | ± 0.017% |
| Hysteresis Error | ± 0.017% |
| Creep in 30 minutes | ± 0.023% |
| Input Resistance | 385Ω ± 15 |
| Output Resistance | 350Ω ± 3 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2(50V DC)GΩ |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
