110ES-WL Salt Waterproof Wireless Crane Scale


Field-tested with Canadian fishermen, the 110ES is the perfect scale for weighing fish at sea or really any other tension weighing need where accurate performance in difficult environments is the top priority. Far more compact than any other tension link of a similar capacity on the market, tougher with 200% safe overload and 400% breaking overload, and more resilient (saltwater corrosion resistant IP68/IP69K full submersion waterproof), this line of crane scale has few equals. This model may be paired with a moisture-resistant handheld wireless indicator. By every metric, from safety to size to reliability to accuracy, the 110ES blows the competition out of the water, no pun intended.

For more capacities, check 110ES-WL-HP


  • Enclosure Material: Stainless steel casting
  • Accuracy: 1:6,000 maximum divisions
  • Capacities: 2.5t, 5t, 10t;
  • For more capacities, please check 110ES-WL-HP
  • Safe Overload: 200% of full scale
  • Breaking Overload: 400% of full scale
  • IP Rating: IP68/IP69K
  • Frequencies:  915 Mhz
  • Transmission range is up to 30m without obstruction
  • Salt water proof power switch with indicating light
  • Salt water proof battery cap
  • Antenna protected by silicon enclosure

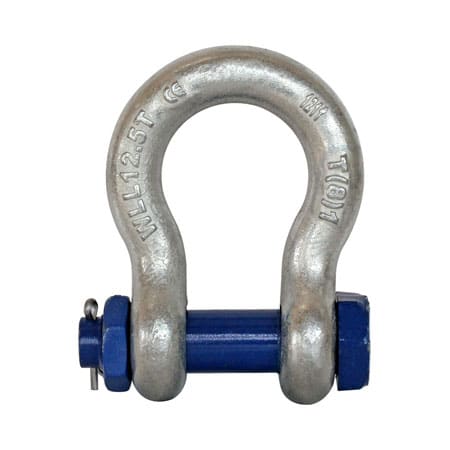

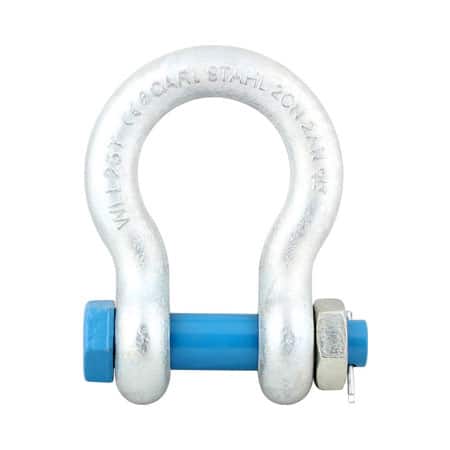

  • Indicator and Shackles are sold separately
Capacity 2.5t, 5t, 10t. For more capacities, check 110ES-WL-HP
Division 1t-10t 1:5000
Enclosure Material 304 Stainless steel
Working Temperature -10°C to 40°C/14°F to 104°F
Safe Overload 200% of full scale
Breaking Overload 400% of full scale
Power Supply 4 x 16340.3 7V (included)
Charger DC 4.2V/600mA (included)
Operation Time Up to 8 hours
IP Rating IP68/69K

pdf- Download data sheet

pdf- 110ES-WL-HP,(1000-2500)kg

pdf- 110ES-WL-HP,(5-10)t

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- Download manual for 110ES with P1
