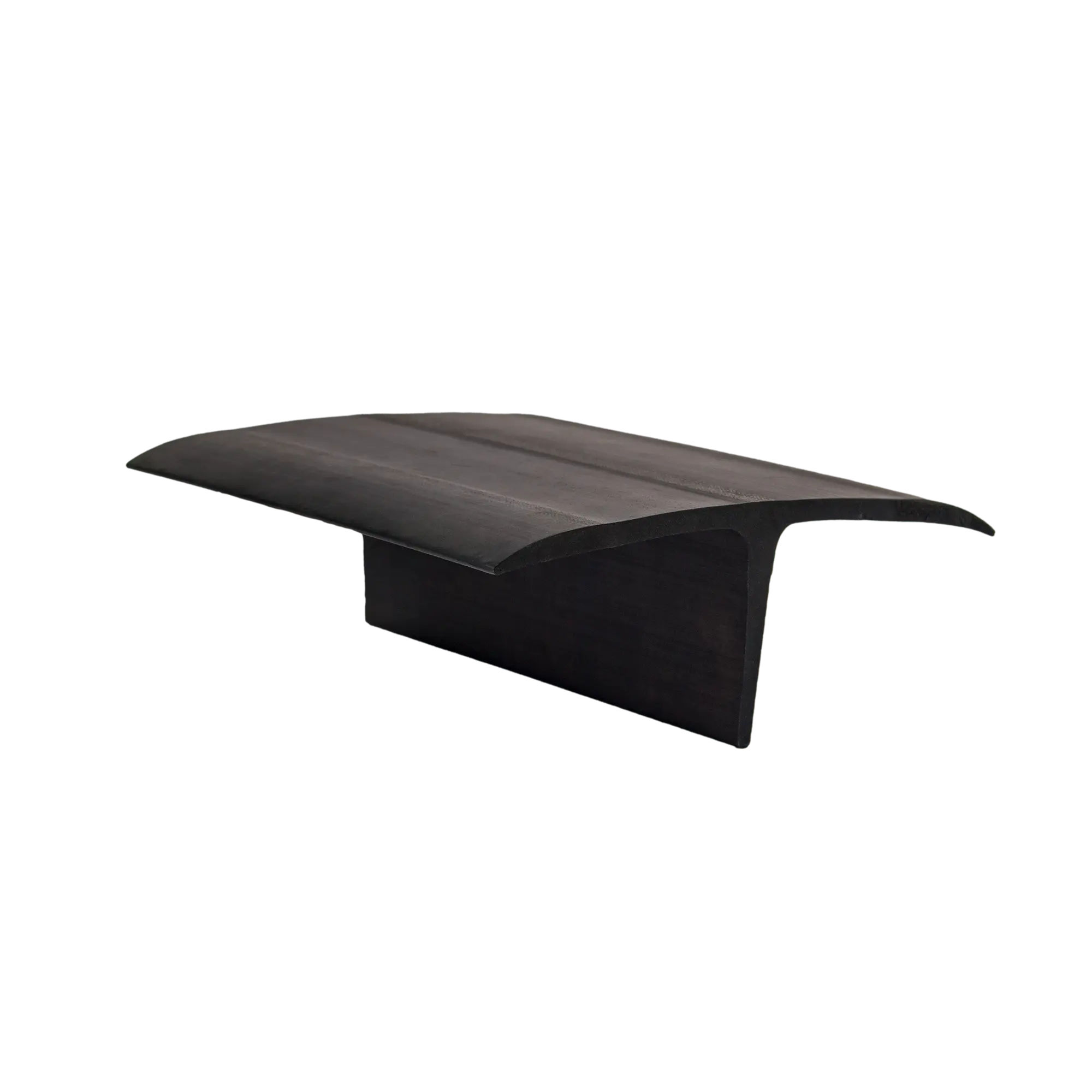

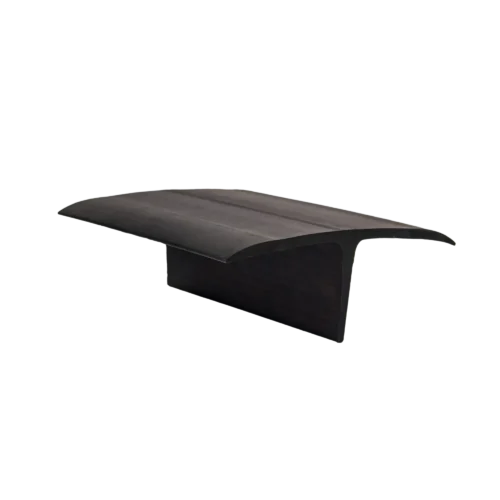

TGRIP-D Heavy Duty Molding
Rubber T-moulding strip for covering the openings around pit-type truck scales to prevent debris buildup underneath the weighbridge, which affects weighing performance and serviceability. The TGRIP-D is notched at every 1 ft for easy shipping and unrolling and has a wide, slightly downward curved, flange for improved coverage over gaps.
- All-weather vulcanized EPDM rubber
- Web thickness: 1/4 in
- Flange is 7 in wide, 1/4 in thick
- Prevents debris buildup under scales
- No bars on web to avoid scale binding
Features
- All-weather vulcanized EPDM rubber
- Web thickness: 1/4 in
- Flange is 7 in wide, 1/4 in thick
- Prevents debris buildup under scales
- No bars on web to avoid scale binding

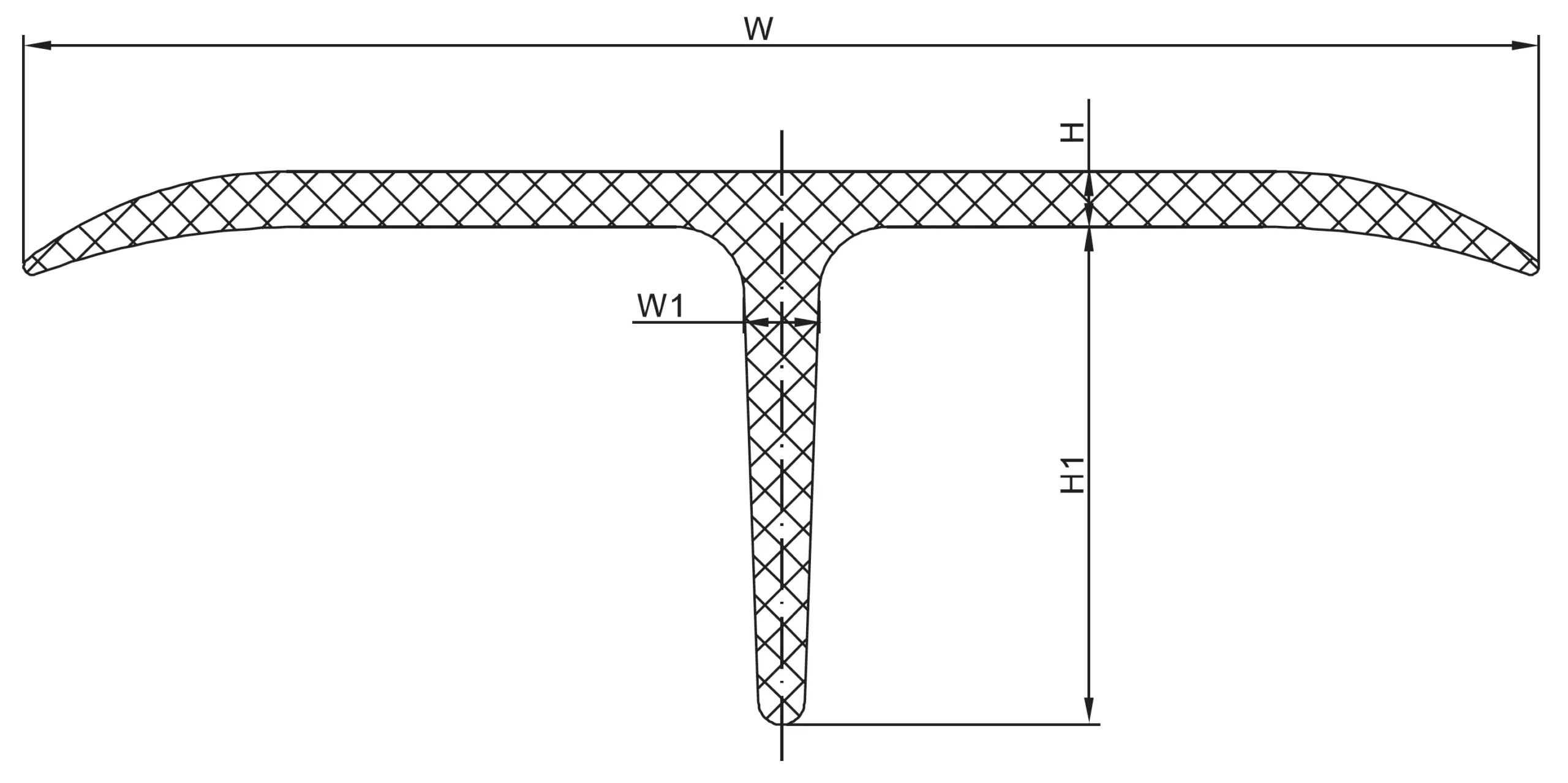

Dimensions
| HEIGHT | ||||
|---|---|---|---|---|
| H | H1 | |||
| 0.26 in (6.5 mm) | 2.30 in (58.5 mm) | |||
| WIDTH | ||||
| W | W1 | |||
| 7.00 in (177.8 mm) | 0.35 in (8.8 mm) | |||
