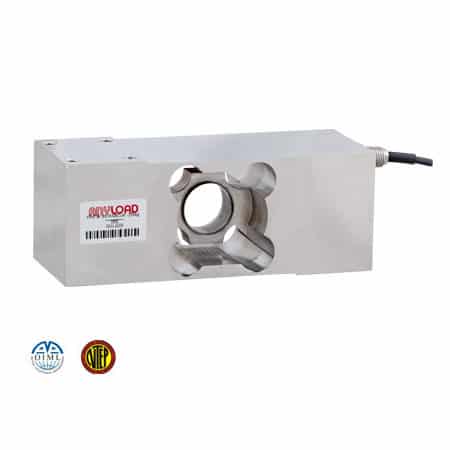

651KSBC Single Point Load Cell
- Material: Stainless steel
- Rated Capacities: 100kg, 250kg
- Full Scale Output: 2mV/V ยฑ 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
- NTEP 1:5 000 Class III, Single Cell
- OIML: 100kg: OIML MAA C9, Y=18 000; 250kg-500kg: OIML MAA C4, Y=26 000
- CE, RoHS, and Ex(NEPSI)
- ATEX, FM, IECEx available upon request
| Rated Capacities | 100kg, 250kg |
| Reference Max. Platform Size | 800mm x 800mm |
| Full Scale Output | 2mV/V ยฑ 0.25% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.03% |
| Repeatability | < ยฑ 0.02% |
| Hysteresis Error | < ยฑ 0.03% |
| Creep in 30 minutes | < ยฑ 0.03% |
| Input Resistance | 1100ฮฉ ยฑ 50ฮฉ |
| Output Resistance | 960ฮฉ ยฑ 50ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0030% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Flintec | PCB (PCBC with metric thread) |
