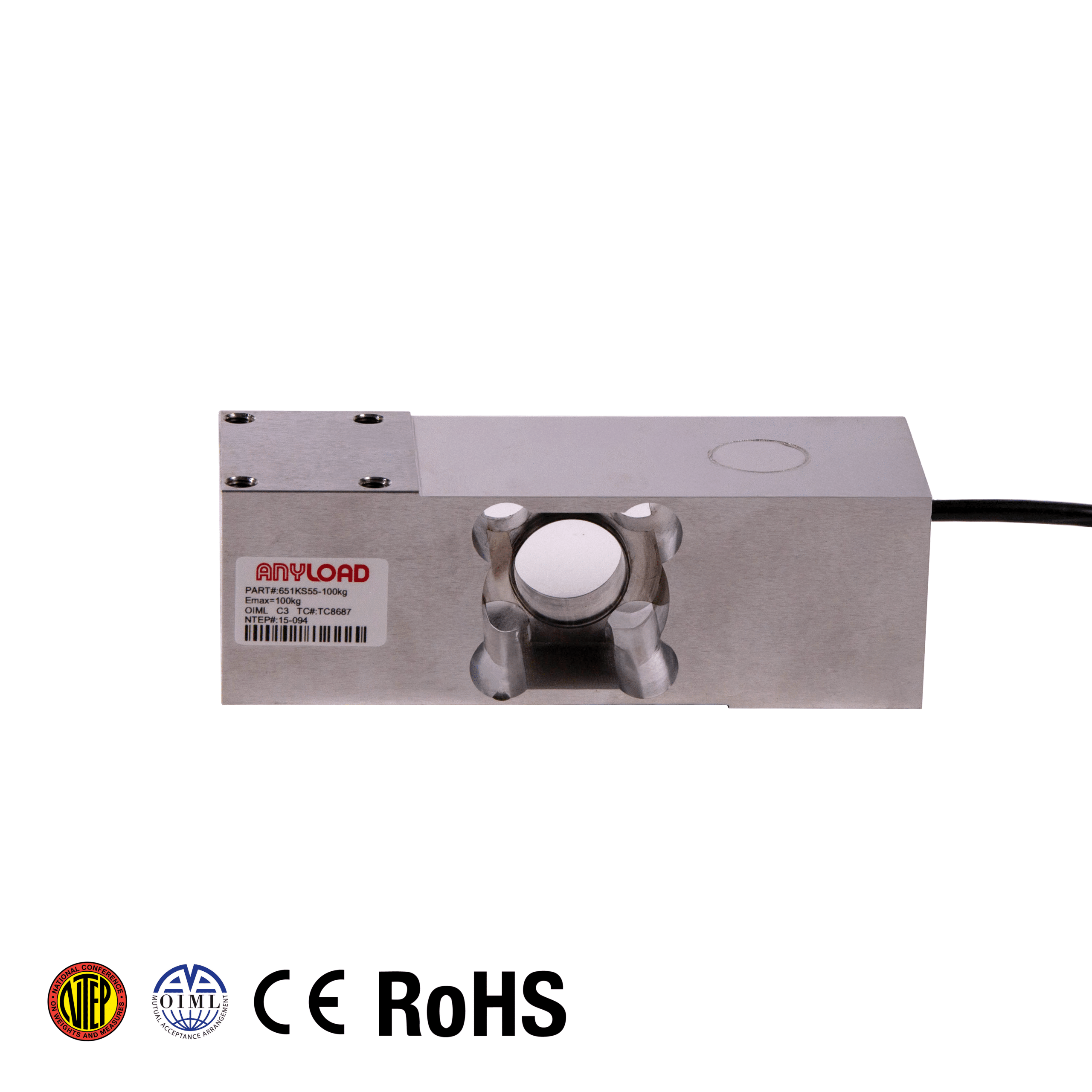

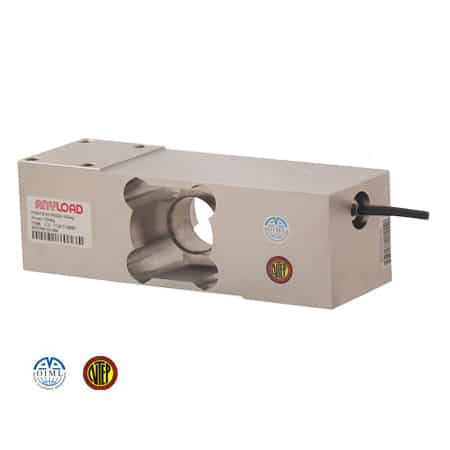

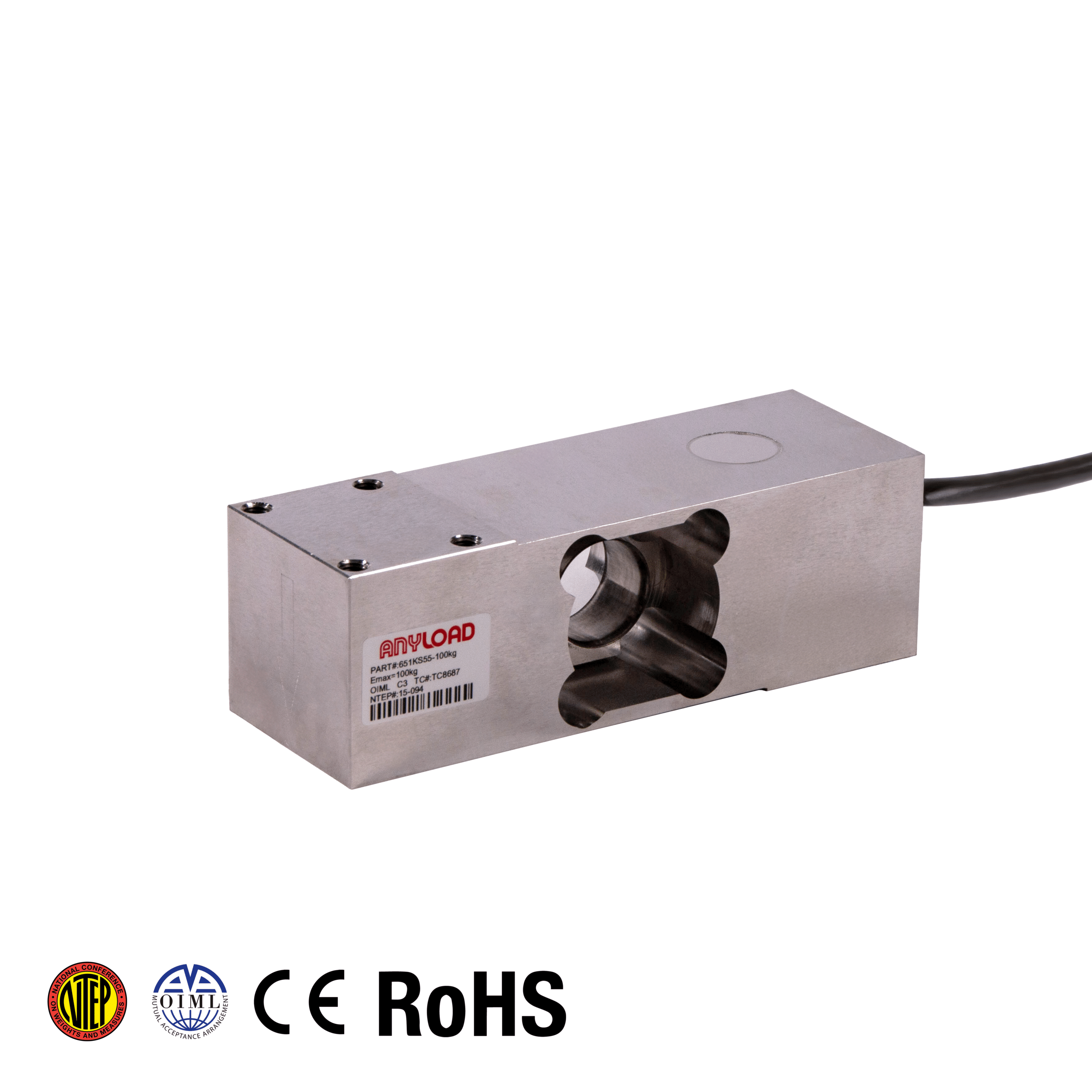

651KS55 Single Point Load Cell
The OIML C9-certified 651KS55 single-point load cell is an ideal weighing solution for applications including floor and hopper scales, providing excellent off-center compensation. The robust IP68 washdown waterproof stainless steel construction and 150% overload assures that it will perform reliably under challenging environments. The 651KS55 is a superior interchangeable for Mettler Toledo MT1260, Vishay Tedea-Huntleigh 1260, and HBM PW16.
Features
- Material: Stainless steel
- Rated Capacities: 100kg
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP68
- NTEP 1:10 000 Class III, Single Cell
- OIML MAA C9, Y=18 000
- CE, RoHS certified
Specifications
| Rated Capacities | 100kg |
|---|---|
| Reference Max. Platform Size | 610x700mm |
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 minutes | < ± 0.02% |
| Input Resistance | 1100Ω ± 50Ω |
| Output Resistance | 960Ω ± 50Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| HBM | PW16, metric thread version* |
|---|---|
| Mettler Toledo | MT1260 |
| Vishay Tedea-Huntleigh | 1260, metric thread version* |
*HBM PW16, Mettler Toledo MT1260, and Vishay Tedea-Huntleigh 1260 are made of aluminum.
