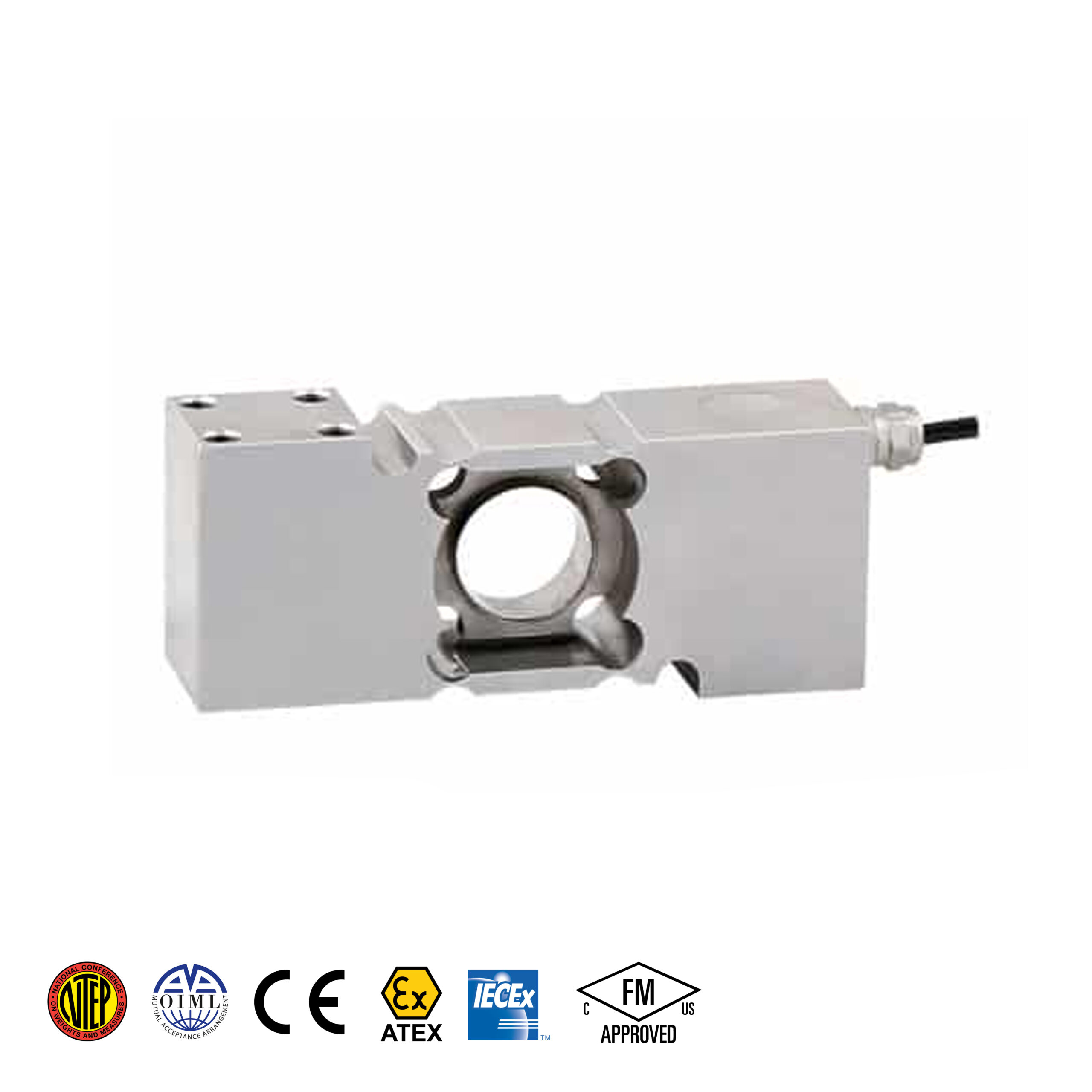

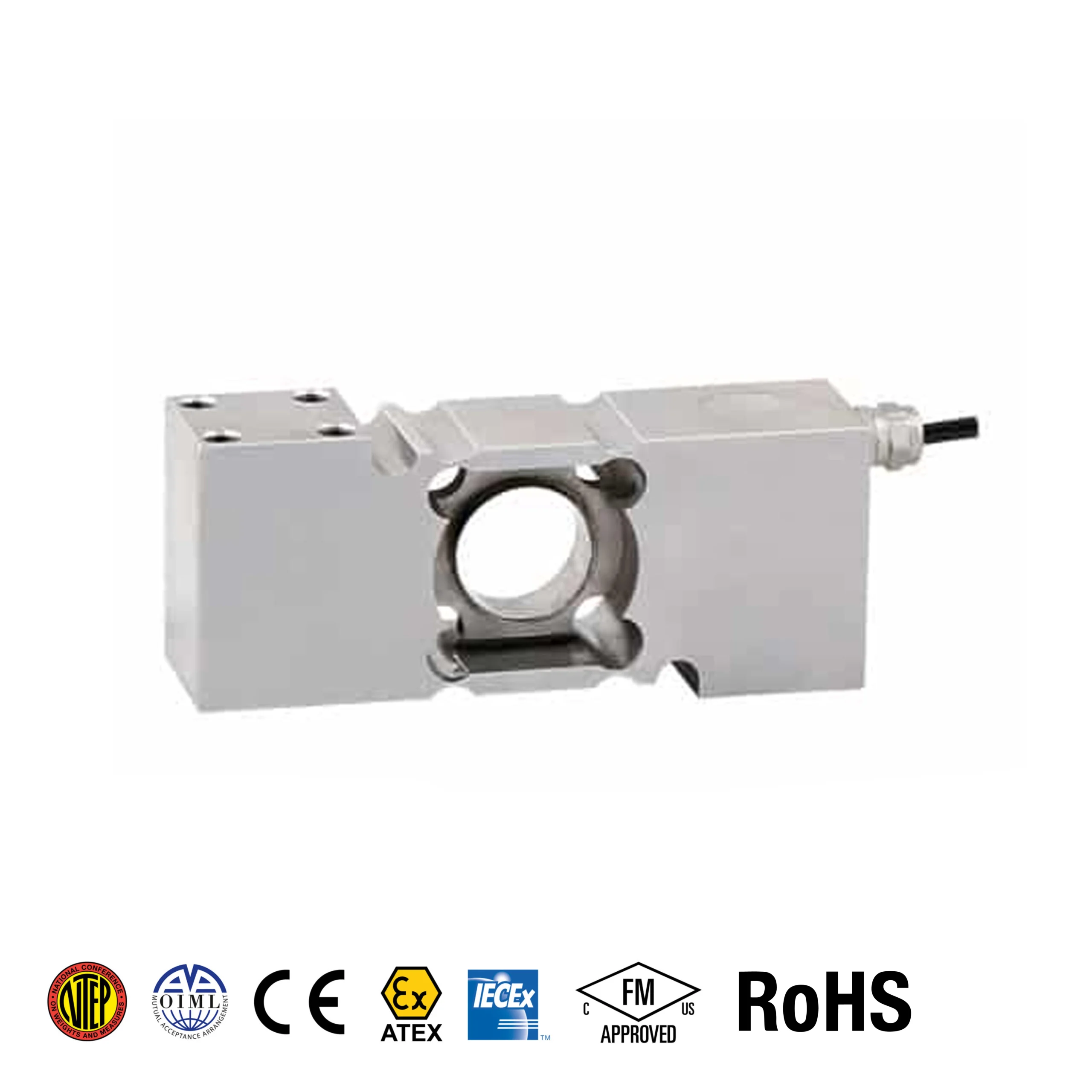

651KS22 Single Point Load Cell
Description:ย
OIML certified C9 from 10kg-100kg, this single point load cell is the highest accuracy legal-for-trade load cell available in the world. With IP68 stainless steel construction, 14ยฐF to 122ยฐF temperature compensation, and 150% safe overload, the 651KS22 is the ultimate weighing solution suited to an immense variety of lower-capacity applications such as hopper scales and process weighing. The innovative design delivers results in extreme conditions, including in the chemical, pharmaceutical, food processing, farming, and fishing industries.
Features:ย
- Material: Stainless steel
- Rated Capacities: 50kg, 100kg, 250kg, 500kg
- Full Scale Output: 2mV/V ยฑ 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68/69K
- NTEP: 651KS22-50kg: NTEP 1:10000 Class III, Single Cell; 651KS22-100kg, 250kg & 500kg: NTEP 1:5000 Class III, Single Cellย
- OIML: 651KS22-50kg & 100kg: OIML MAA C9, Y=18000; 651KS22-250kg & 500kg: OIML MAA C4, Y=26000
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, and IECEx available upon request
| Rated Capacities | 50kg, 100kg, 250kg, 500kg |
| Reference Max. Platform Size | 600mm x 600mm |
| Full Scale Output | 2mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.03% |
| Repeatability | < ยฑ 0.02% |
| Hysteresis Error | < ยฑ 0.03% |
| Creep in 30 minutes | < ยฑ 0.03% |
| Input Resistance | 385ฮฉ ยฑ 15ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | –30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Flintec | PC7* |
| Vishay Tedea-Huntleigh | 1510* |
| Mettler-Toledo | SSH |
* H of Flintec PC7 & Tedea 1510 are of 73mm
