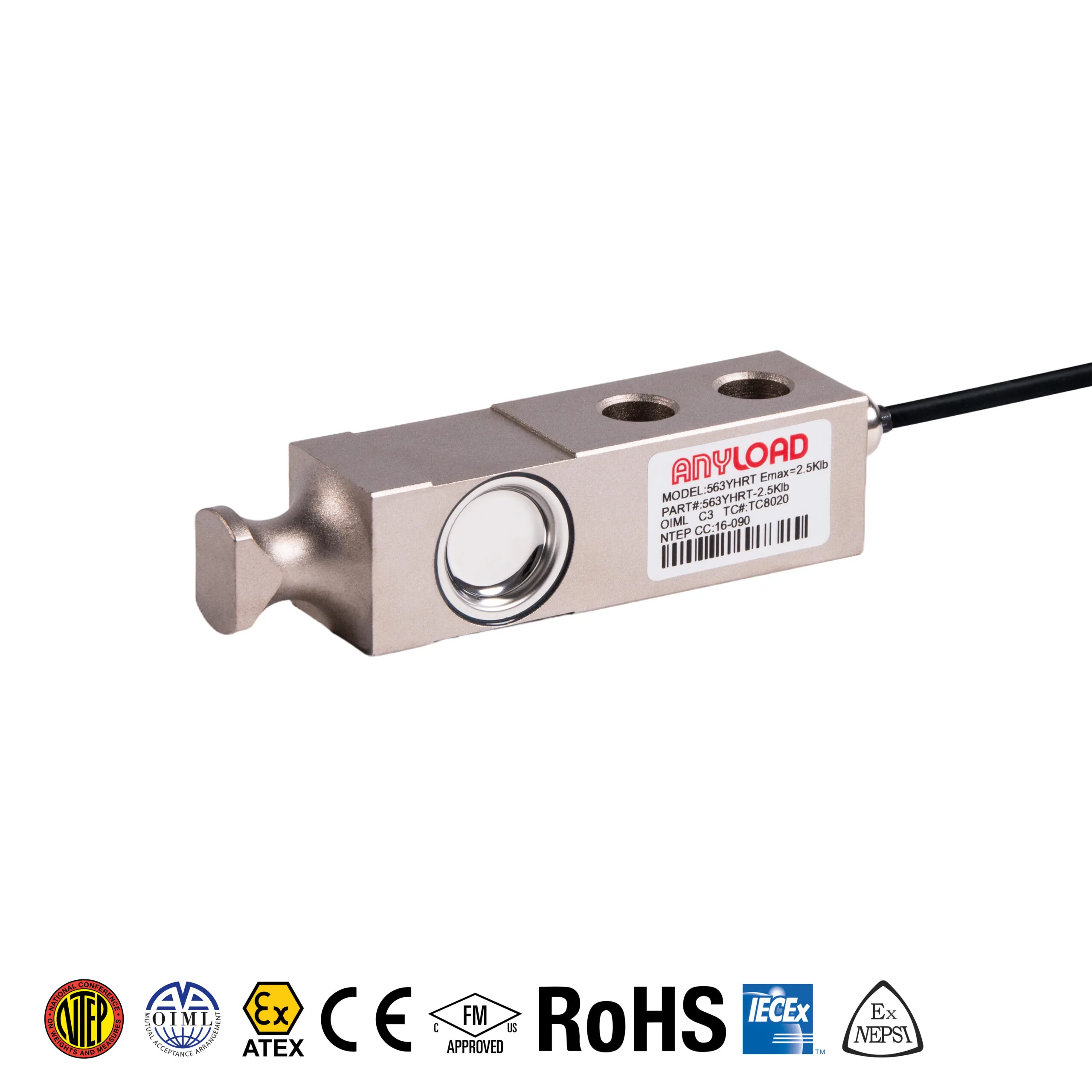

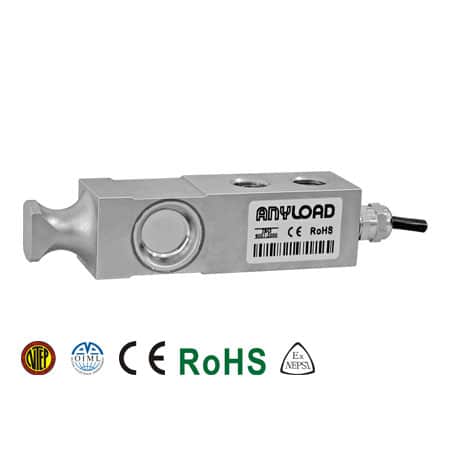

563YHRT Single Ended Beam Load Cell

The 563YHRT is a heavy-duty IP67 water-resistant weighing solution with superior accuracy and cost-effectiveness. It is interchangeable with Vishay Revere 5723. Common applications include platform weighing, hopper weighing, and more.

Material: Alloy steel, Nickel Plated
Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
Full Scale Output: 3mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
1Klb-2.5Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
4Klb-10Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
1Klb -5Klb: up to OIML MAA C4, Y=15 000;
10Klb: up to OIML MAA C6, Y=8 500
CE, RoHS and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Datasheet

Part Number

Clear

Features

Material: Alloy steel, Nickel Plated
Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
Full Scale Output: 3mV/V ± 0.25%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
1Klb-2.5Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
4Klb-10Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
1Klb -5Klb: up to OIML MAA C4, Y=15 000;
10Klb: up to OIML MAA C6, Y=8 500
CE, RoHS and Ex(NEPSI) certified
ATEX, FM, IECEx available upon request

Specifications

Rated Capacities	1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb
Full Scale Output	3mV/V ± 0.25%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.017%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.017%
Creep in 30 minutes	< ± 0.023%
Input Resistance	350Ω ± 7Ω
Output Resistance	350Ω ± 3Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Temperature Effect on Sensitivity	< ±0.0012% of Cn/k
Temperature Effect on Zero Balance	< ± 0.0040% of Cn/k
Compensated Temperature Range	–10°C to 50°C/14°F to 122°F
Service Temperature Range	–30°C to 70°C/-20°F to 160°F
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Environmentally sealed
IP Rating	IP67
