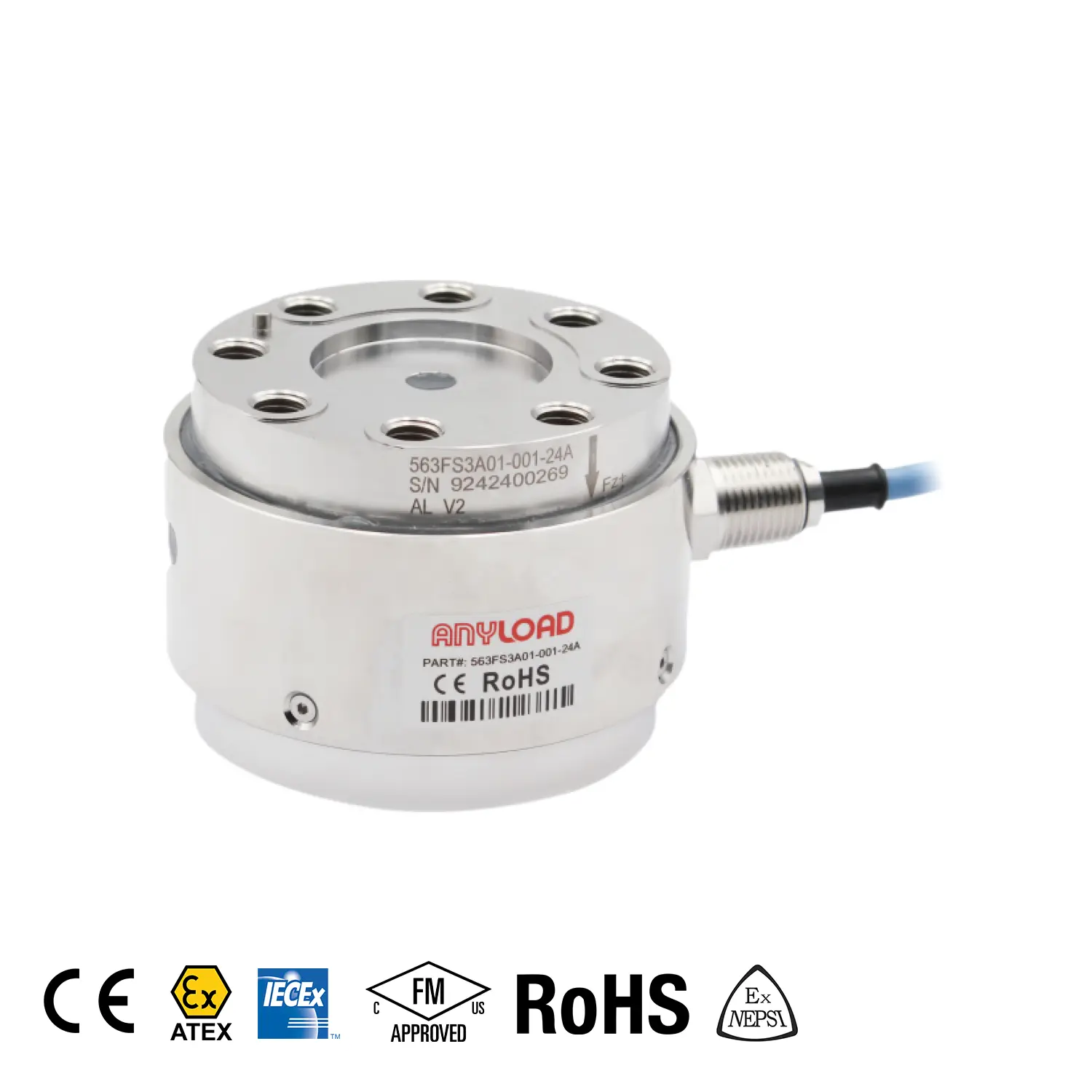

563FS3A Multi-Axis Sensor

The ANYLOAD 563FS3A is a compact stainless steel tri-axial force sensor designed to simultaneously measure forces in three orthogonal directions — Fx, Fy, and Fz — within a single low-profile load button housing. Constructed from 17-4PH stainless steel, the 563FS3A is built for demanding industrial force measurement applications where multi-axis load data is required in a confined installation envelope. The sensor carries a rated capacity of 40kN and delivers reliable, repeatable performance with less than ±1.0% non-linearity, hysteresis, and repeatability across all three axes.

The 563FS3A features an environmentally sealed IP67 housing suitable for use in wet or washdown environments, with excitation of 10V recommended and a maximum of 15V. The sensor operates across a nominal temperature range of -10°C to 50°C (14°F to 122°F) and provides a safe overload capacity of 150% and a breaking overload of 300% of full scale. Its 1/2-14 NPT port and standard M12 threaded mounting interface simplify integration into test fixtures, structural monitoring systems, and machine frames. A 5-meter cable with color-coded conductors for each axis is included as standard.

Approved for use in hazardous locations, the 563FS3A is available in ATEX, FM, and IECEx certified versions (designated with the “-Ex” suffix), making it suitable for deployment in oil and gas, chemical processing, and other classified environments. The sensor is also CE and RoHS compliant, supporting use across a broad range of regulated industries and international markets.

The 563FS3A is well suited for applications requiring simultaneous multi-axis force analysis, including structural load testing, robotics and automation, materials testing, aerospace ground support equipment, and precision industrial machinery. ANYLOAD supports system integrators and engineers in selecting and configuring the right force measurement solution for their application. Contact us to discuss your specific requirements.

See more

- +

Features

  • Rated capacities: 40kN
  • Stainless steel construction for enhanced durability
  • Three-axis force measurement (Fx, Fy, Fz)
  • Environmentally sealed to IP67 for harsh environments
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • FM/ ATEX/ IECEx certified optional

Specifications

Rated Capacities 40kN
Full Scale Output Fx/y: 1.5 ± 10% mV/V
Fz: 0.5 ± 10% mV/V
Zero Balance ± 0.05 mV/V
Non-linearity < ± 1.0%
Repeatability < ± 1.0%
Hysteresis Error < ± 1.0%
Creep in 30 min. < ± 1.0%
Input Resistance 175Ω ± 20
Output Resistance Fx/y: 700Ω ± 5   Fz: 350Ω ± 5
Element Material 17-4PH Stainless Steel
Recommended Excitation 10V (15V Maximum)
Insulation Resistance >2 [50V DC] GΩ
Nominal Temperature Range -10°C to 50°C / 14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type / IP Rating Environmentally Sealed / IP67
Multi-Axial Force Sensor for Robotic Automation

Multi-Axial Force Sensor for Robotic Automation

Manufacturing Industry

Robotic arms are programmable automated devices widely used in industrial production, medical surgeries, agriculture, and other fields. In industrial production, robotic arms perform repetitive tasks such as welding, painting, assembly, and material handling with precision, improving efficiency and reducing labor costs. In agriculture, robotic arms are used in precision farming for tasks like seeding, fertilizing, and harvesting, executing operations efficiently as per pre-set programs.

Multi-Axis Hitch Force Sensing for Off Road Trailers

Multi-Axis Hitch Force Sensing for Off Road Trailers

Agriculture Industry

Off-road trailers are designed to navigate uneven terrain, steep inclines, dips, and cross-axle articulation while being towed by passenger vehicles and light-duty trucks. These conditions introduce constantly changing forces at the hitch, making accurate measurement essential for understanding towing dynamics and evaluating structural performance.
