ANYLOAD | 247ASLHUN Load Button

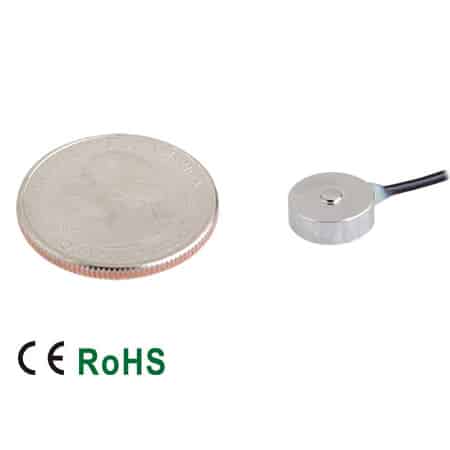

247ASLHUN Load Button

Description:

The 247ASLHUN is a resilient stainless steel load button, providing versatile and reliable performance for applications where space and weight may be limiting factors. The compact design is ideal for compression weighing and force measurement applications wherever space and weight are limited.

Features:

  • Material: Stainless steel
  • Rated Capacities: 250kg, 500kg, 1t, 2t, 5t, 10t
  • Full Scale Output: 2.0mV/V ± 20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
Clear
Product Enquiry
Rated Capacity 250kg, 500kg, 1t, 2t, 5t, 10t
Thread Imperial thread
Full Scale Output 2.0mV/V ± 20%
Zero Balance ±0.04mV/V
Non-linearity < ± 0.5%
Repeatability < ± 0.5%
Hysteresis Error < ± 0.5%
Creep in 30 minutes < ± 0.5%
Input Resistance Cap. ≤ 500kg: 375Ω ±25Ω; Cap. > 500kg: 700Ω ±25Ω
Output Resistance Cap. ≤ 500kg: 350Ω ±3Ω; Cap. > 500kg: 700Ω ±3Ω
Recommended Excitation Cap. ≤ 10kg: 5V (7V Maximum); Cap. > 10kg: 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
