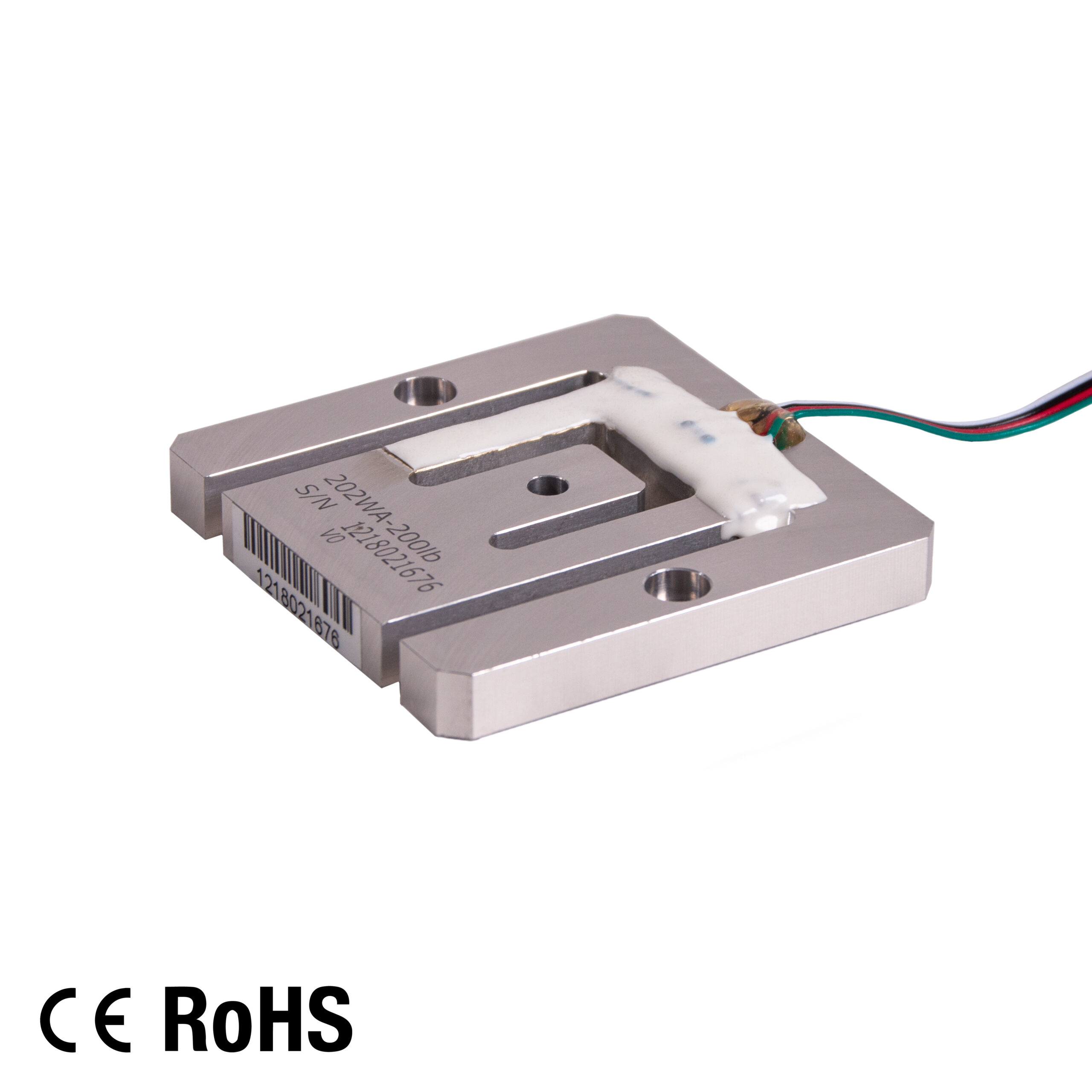

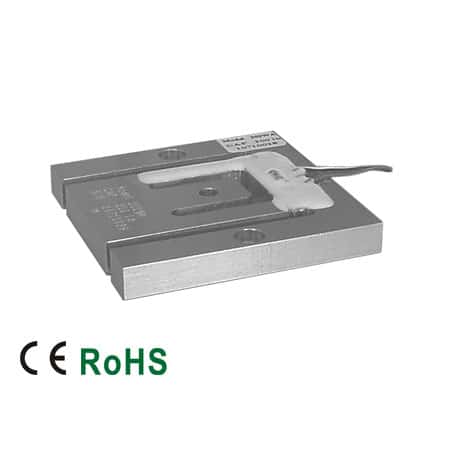

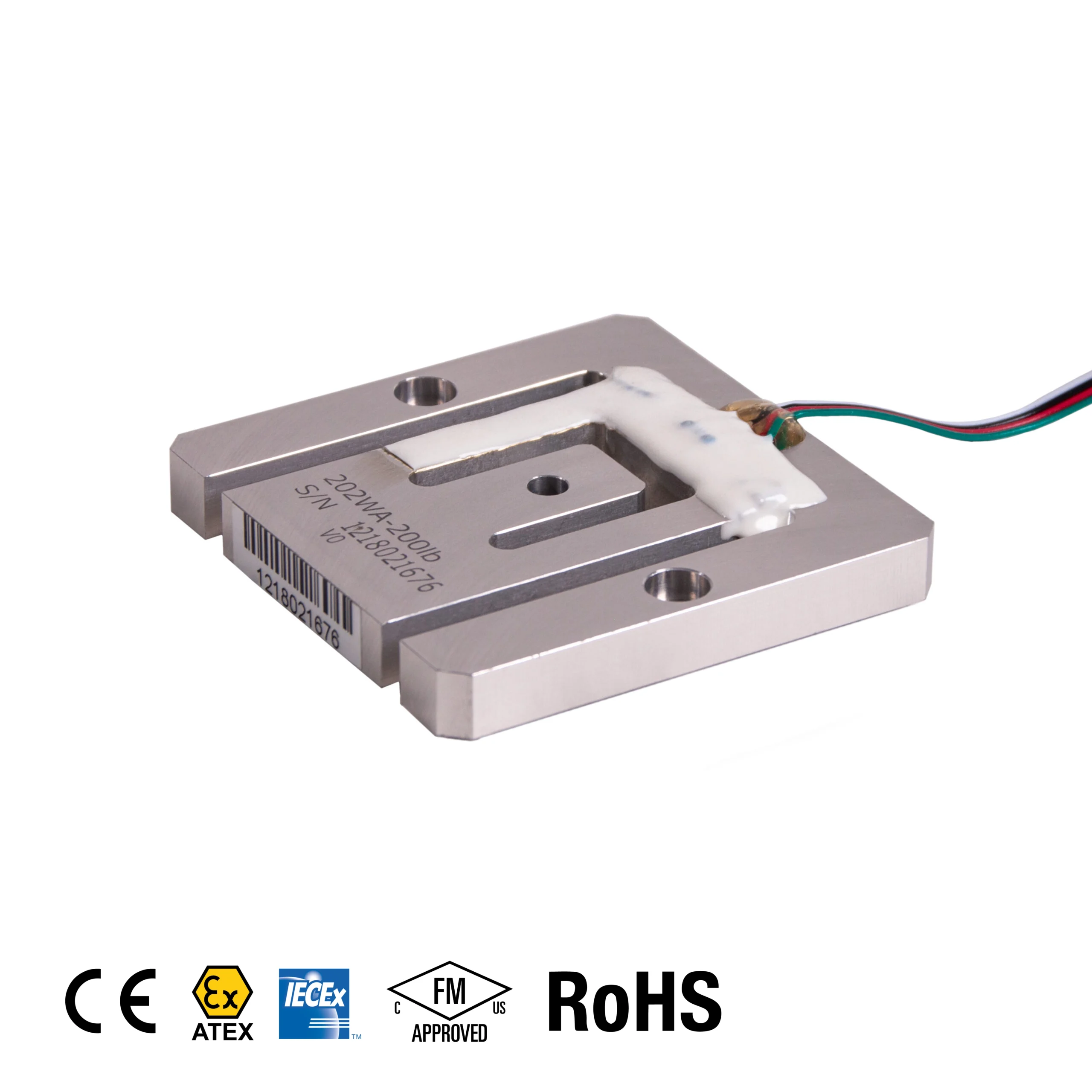

202WA Planar Load Cell
The ANYLOAD 202WA is a high-accuracy planar load cell built from clear anodized aluminum, designed for compression force measurement and platform weighing applications. Available in both imperial and metric capacities — from 12.5lb up to 200lb and 100kg to 300kg — the 202WA offers exceptional versatility for a wide range of industrial and OEM weighing systems.
Delivering a tightly controlled full scale output of 0.9mV/V ± 0.1% with ± 0.05% mV/V/Ω calibration accuracy, the 202WA ensures consistent, reliable measurements. Its IP65-rated environmental seal provides effective protection against dust and water ingress, and it carries CE and RoHS certifications for international compliance.
Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, 300kg
- Full Scale Output: 0.9mV/V ± 0.1%
- Calibration in mV/V/Ω: ± 0.05%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS certified
Specifications
| Rated Capacities | 12.5lb, 18.75lb, 25lb, 37.5lb, 50lb, 100lb, 200lb, 100kg, 200kg, 300kg |
|---|---|
| Full Scale Output | 0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω | ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 1204Ω ± 5Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP65 |
