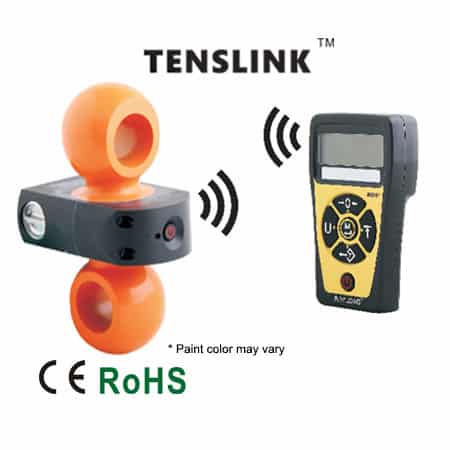

110RH-WL, 805HP-WLTENSLINK Wireless Tension Link or Dynamometer
Description:
Anyload’s Tenslinkโข is a heavy-duty tension link load cell that provides unparalleled reliability and convenience in a variety of needs. Complete with a moisture-resistant handheld indicator, the Tenslinkโข is a dependable solution for many dynamometers, crane scales, and other tension weighing applications. The sleek design, IP67 class water resistance, high overload tolerance, and general ease of use make this model a favorite in the food processing, agriculture, fishing, and construction industries.
Feature:ย
- Material: Alloy Steel, Powder Coating
- Rated Capacities: 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t
- Breaking Overload: 500% of full scale
- Safe Overload: 200% of full scale
- Wireless Distance (adjustible): Up to 30m(Power 1.26mW), Up to 40m(Power 1.56mW), Up to 55m(Power 3.13mW),Up to 75m(Power 6.25mW) – All distances stated are if no obstruction
- Operation Time: Up to 100 hrs. on 20ยฐC at the lowest power set up
- IP Rating: IP67
- Tare Range : 100% Full Scale
- Indicator Enclosure Material : ABS
- Units of Measurement : kg, g, t, lb,Klb, N, kN, oz,
user-defined unit - Display Type:LCD with backlight
- Indicator IP Rating: IP65
- Specifications-Load Cell
- Specifications-Indicator
- Functions
- Data Sheet
- 3D Drawing
- Approvals
- Manuals
- Tutorial
| Rated Capacity | 500kg, 1t, 2t, 3t, 5t, 10t, 20t, 30t, 50t, 100t |
| Enclosure | Alloy Steel, Powder Coating |
| Safe Overload | 200% of full scale |
| Breaking Overload | 500% of full scale |
| Wireless Distance (adjustable) |
Up to 30m (Power 1.26mW), Up to 40m (Power 1.56mW), Up to 55m (Power 3.13mW), Up to 75m (Power 6.25mW)- All distances stated are if no obstruction |
| Operation Time | Up to 100 hours |
| Battery Type | 3รAA Alkaline batteries |
| Operating Temperature | -10ยฐC to 50ยฐC / 14ยฐF to 122ยฐF |
| IP Rating | IP67 |
| Tare range | 100% Full Scale |
| Enclosure Material | ABS |
| Units of Measurement | kg, g, t, lb,Klb, N, kN, oz, user-defined unit |
| Working Temperature | -10ยฐC to 50ยฐC / 14ยฐF to 122ยฐF |
| Dimensions | 170mmร98mmร34mm (6.7inร3.9inร1.34in) |
| Display Type | LCD with backlight |
| Display Digits | 6 digits |
| Digit Height | 16.8mm / 0.66in |
| Display Dimensions | 72mmร27mm / 2.8inร1.1in |
| Max. Power Consumption | 6.25mW |
| Power Supply | 3รAA Alkaline batteries |
| Operation Time | Up to 100 hours at 20ยฐC at the lowest power set up |
| IP Rating | IP65 |
| Auto Zero Tracking | Yes |
| Auto Zero / Manual Zero | Yes |
| Hold / Peak Hold | Yes |
| Tare | Yes |
| Gross/Net | Yes |
| Overload warning and alarm | Yes |
| Single and multi-point calibration | Yes |
| Weight and Digit calibration | Yes |
| Resolution Switch ( 0.001 to 50 ) | Yes |
| Available units can be enabled/disabled: kg/g/t/oz/N/kN/lb/klb/User’s unit | Yes |
| Backlight-off set ( Power Saving ) | Yes |
| Auto-off set | Yes |
| Idle set | Yes |
| Battery Saving set | Yes |
| Wireless distance set | Yes |
| Accumulate weighing values | Yes |
Note: You may need a software that can open/view STEP files.
