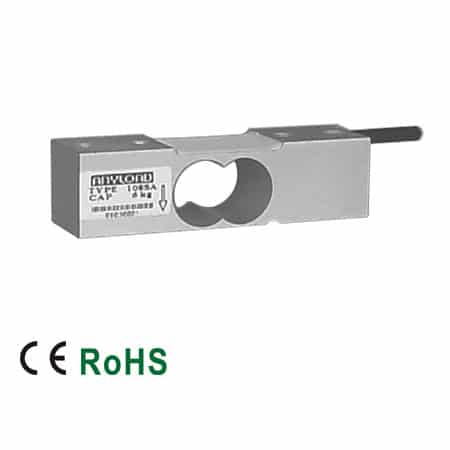

108SA Single Point Load Cell
The ANYLOAD 108SA is a compact, low-capacity single point load cell constructed from clear anodized aluminum, designed for small platform scales, kitchen scales, and light-duty OEM weighing applications. Available in capacities from 6kg to 30kg, it offers reliable and consistent performance in a space-efficient form factor supporting platform sizes up to 250mm x 250mm.
With an IP66-rated environmental seal, the 108SA is protected against dust and water ingress, making it suitable for both indoor and light industrial environments. CE and RoHS certified for compliance with international safety and environmental standards.
Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 6kg, 10kg, 15kg, 20kg, 30kg
- Full Scale Output: 1.5mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
Specifications
| Rated Capacities | 6kg, 10kg, 15kg, 20kg, 30kg |
|---|---|
| Reference Max. Platform Size | 250mm x 250mm |
| Full Scale Output | 1.5mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.050% |
| Creep in 30 minutes | < ± 0.020% |
| Input Resistance | 1000Ω ± 3Ω |
| Output Resistance | 1000Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
