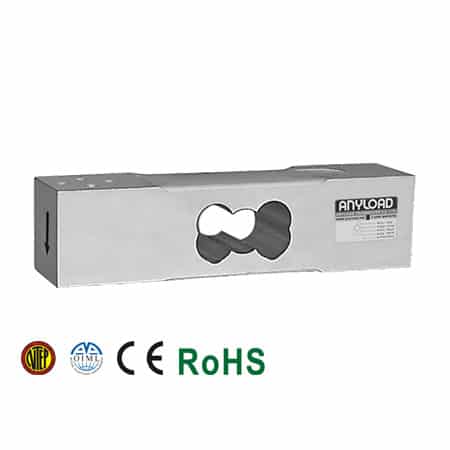

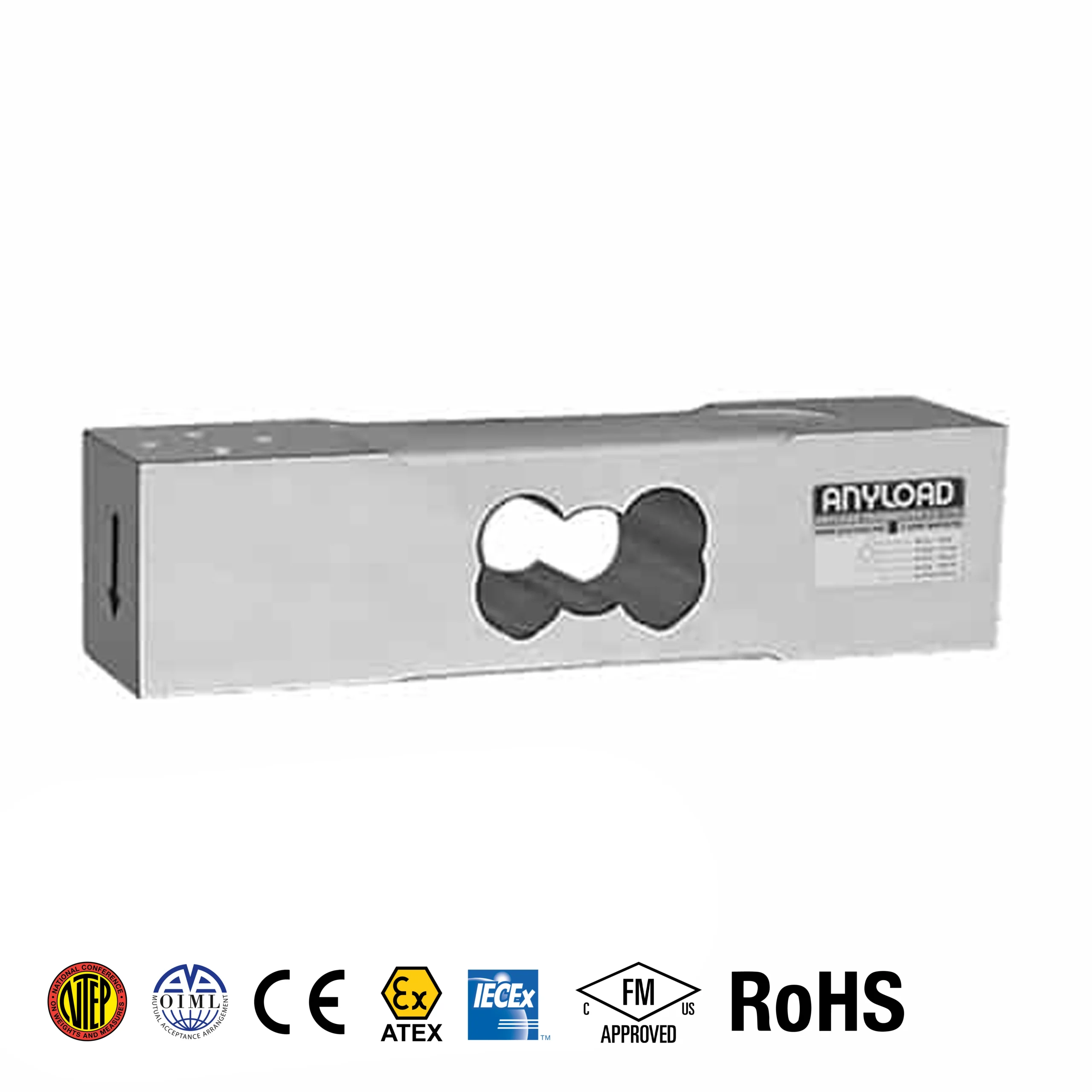

108EA Single Point Load Cell
The ANYLOAD 108EA is a high-accuracy single point load cell built from clear anodized aluminum, designed for platform scales, bench scales, and checkweighing applications. Available in capacities from 30kg to 300kg, it delivers precise and repeatable measurements with a full scale output of 2mV/V and non-linearity under ±0.017%.
With an IP66-rated environmental seal, the 108EA withstands dust and water exposure in demanding conditions. It supports platform sizes up to 450mm x 450mm and carries NTEP Class III (1:5,000), OIML, CE, RoHS, and NMI Australia certifications — making it suitable for legal-for-trade weighing applications worldwide.
Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 30kg, 60kg, 100kg, 150kg, 200kg, 300kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- Up to NTEP 1:5 000 Class III, Single Cell
- 30kg: up to OIML MAA C7.5, Y=20 000;
60kg-300kg: up to OIML MAA C6, Y=29 000 - CE and RoHS certified
Specifications
| Rated Capacities | 30kg, 60kg, 100kg, 150kg, 200kg, 300kg |
|---|---|
| Reference Max. Platform Size | 450mm x 450mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
