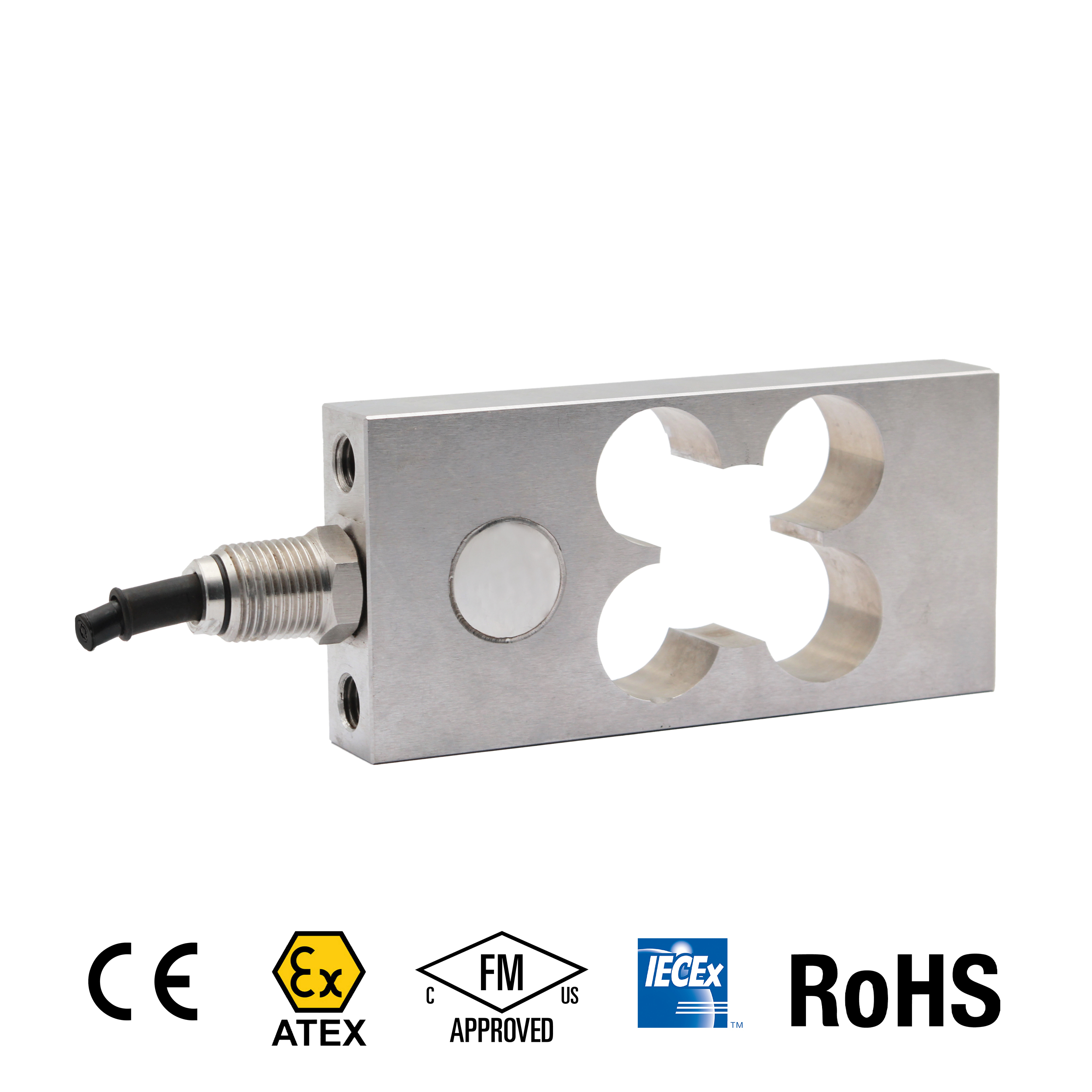

108DSTP Single Point Load Cell
The 108DSTP is a compact, stainless steel single point load cell designed for reliable and accurate weighing applications. Available in 500 lb and 1,000 lb capacities, it delivers a full scale output of 2.0 mV/V with excellent linearity, repeatability, and hysteresis all within ±0.05%. Built from 17-4PH stainless steel and rated IP68, it’s fully sealed for use in harsh or wet environments. With a compensated temperature range of -10°C to 50°C and a safe overload capacity of 150%, it’s a robust and dependable choice for industrial weighing systems. ATEX, FM, and IECEx approved versions are available for hazardous locations.
Features
- Material: 17-4PH Stainless Steel
- Rated Capacities: 500lb, 1000lb
- Full Scale Output: 2.0 mV/V ± 0.25%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP68
- CE and RoHS certified
Specifications
| Rated Capacities | 500lb, 1000lb |
|---|---|
| Full Scale Output | 2.0 mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.05% |
| Repeatability | < ± 0.05% |
| Hysteresis Error | < ± 0.05% |
| Creep in 30 minutes | < ± 0.05% |
| Input Resistance | 400Ω ± 30 |
| Output Resistance | 350Ω ± 3 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP68 |
