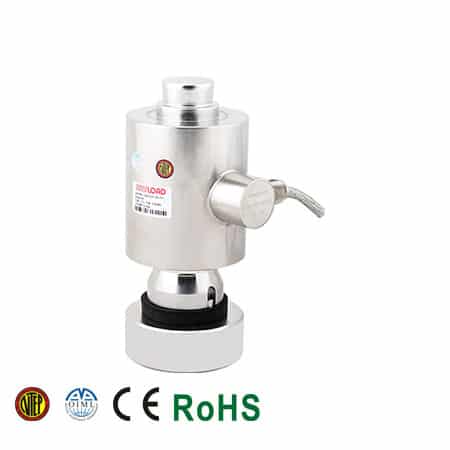

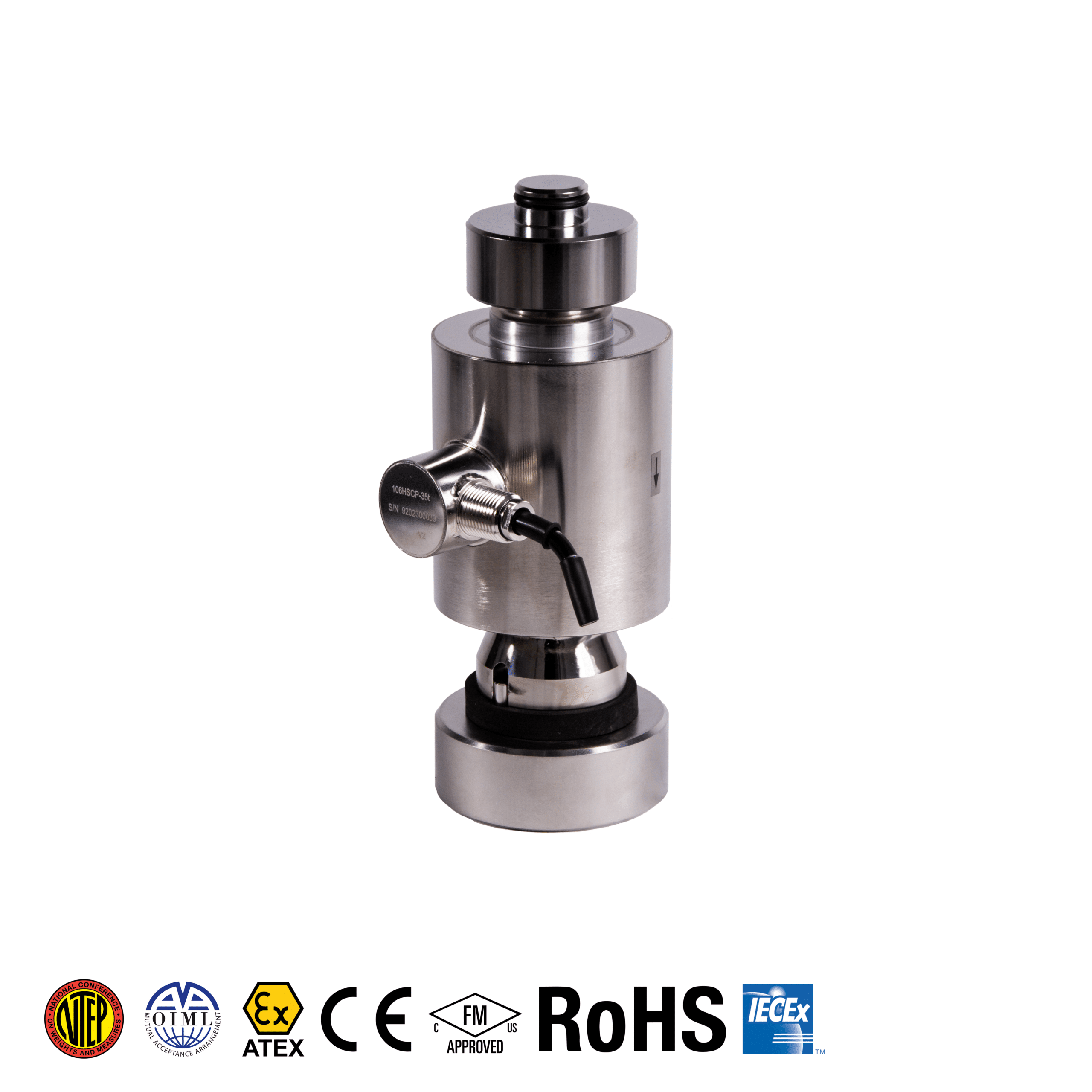

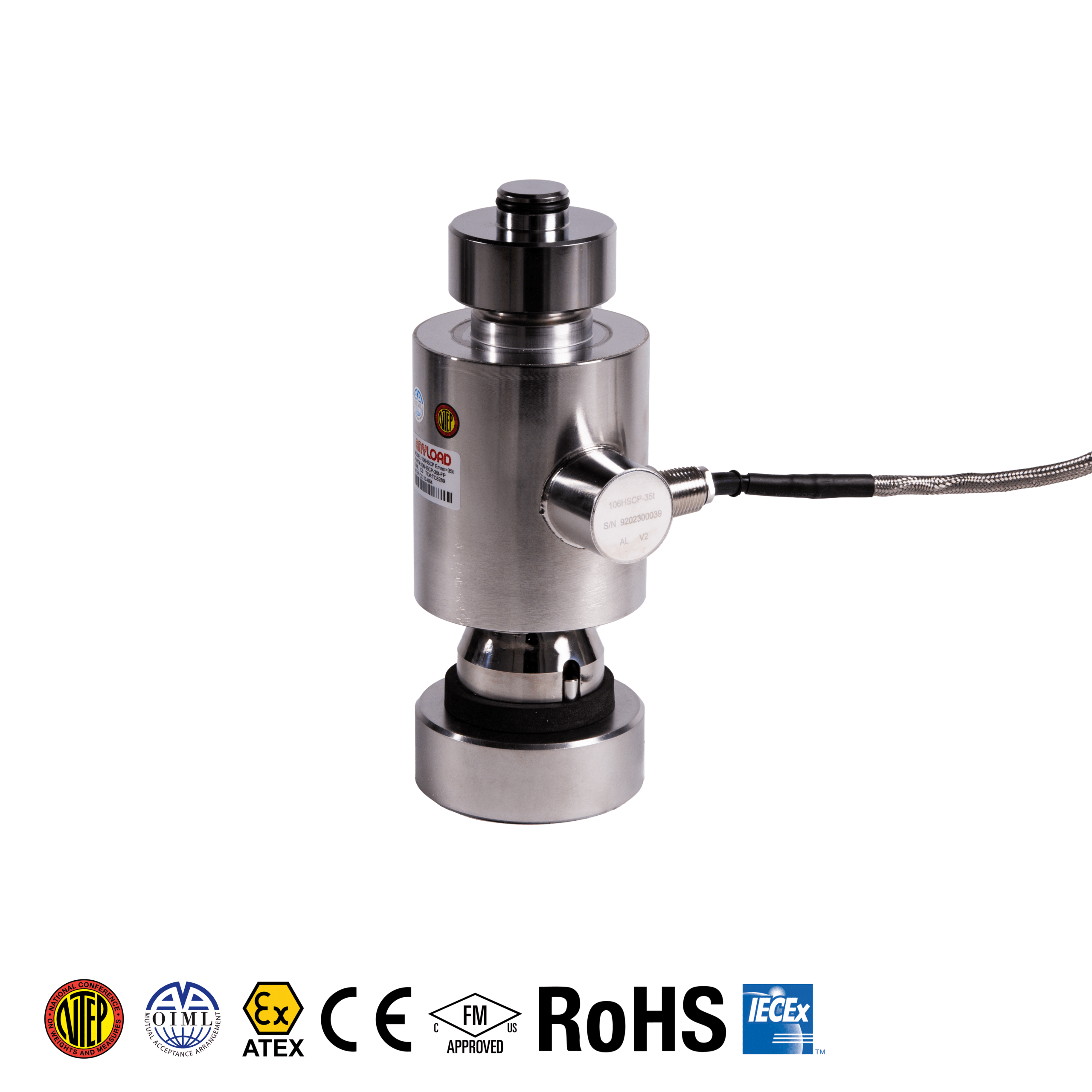

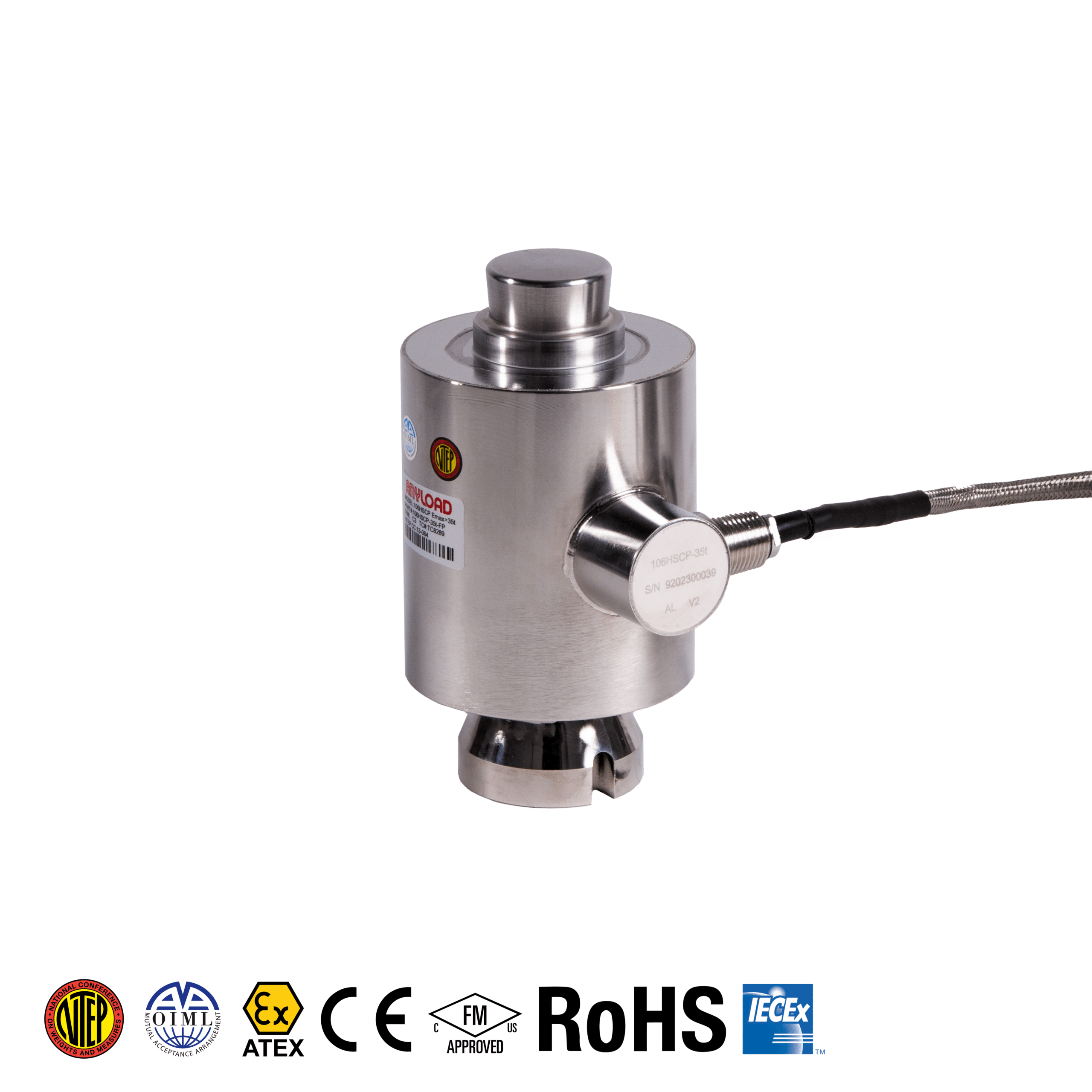

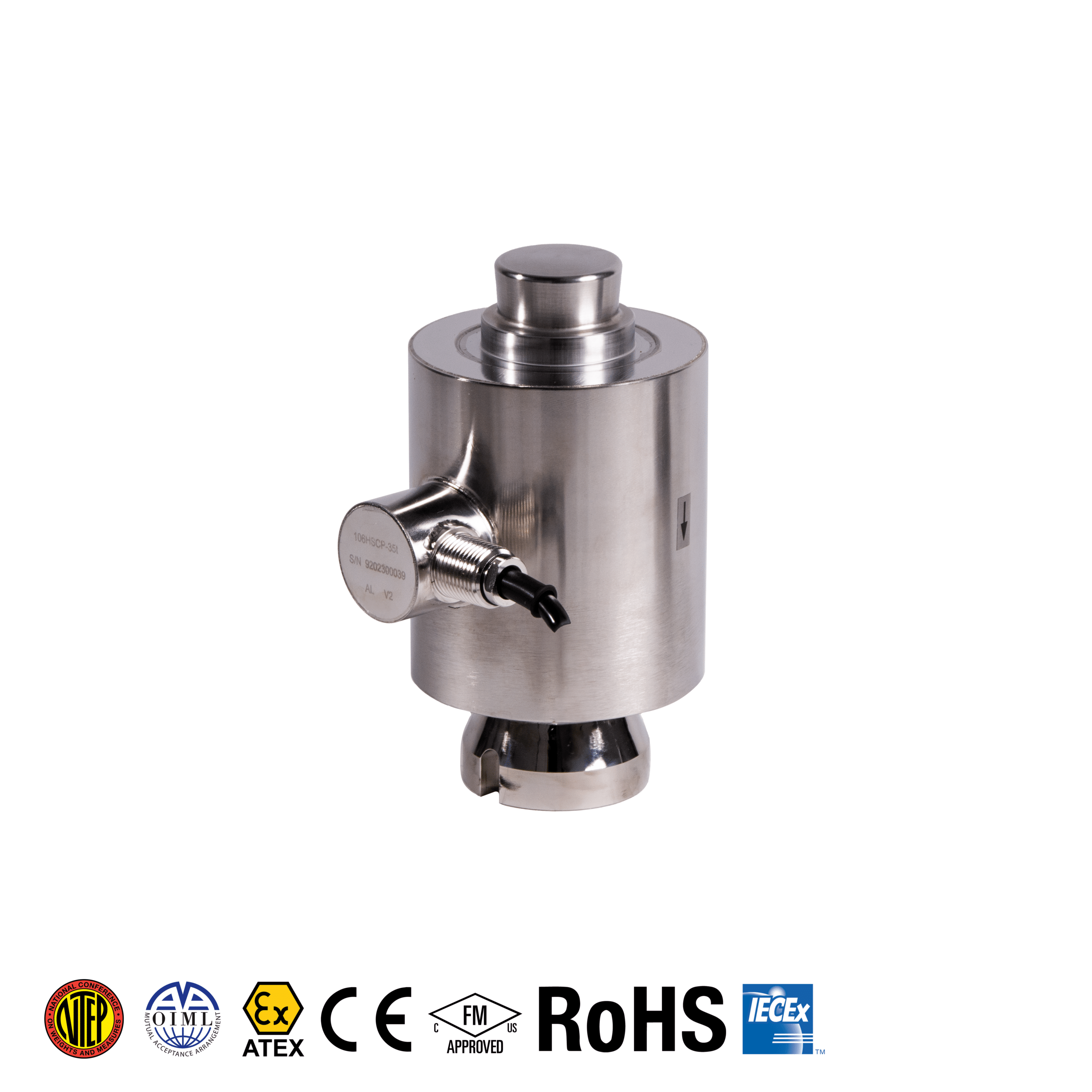

106HSCP Canister Load Cell
The 106HSCP canister load cell is a hermetically sealed stainless steel sensor designed for high-capacity industrial weighing. With IP68 protection, high overload tolerance, and certified accuracy, it delivers reliable and stable performance in demanding applications such as truck scales, tanks, and heavy-duty weighing systems.
- Material: Stainless steel
- Rated Capacities: 35t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell
- OIML MAA C3, Y=16 000
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Features
- Material: Stainless steel
- Rated Capacities: 35t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- NTEP 1:10 000 Class IIIL, Multiple Cell
- OIML MAA C3, Y=16 000
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 35t |
|---|---|
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.02% |
| Creep in 30 minutes | < ± 0.02% |
| Input Resistance | 700Ω ± 10Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0023% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-60°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| Bilanciai | CPR-M |
|---|
