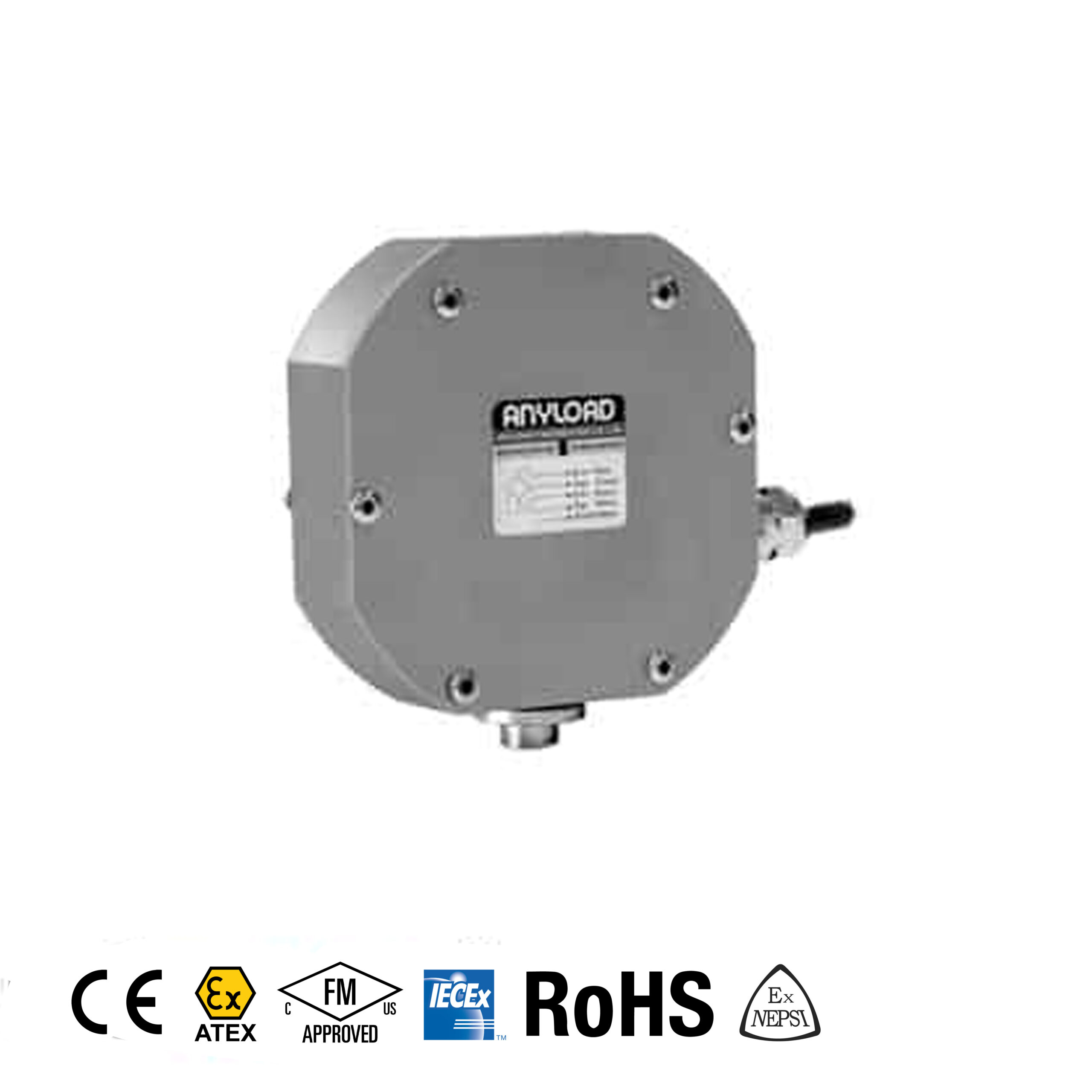

101AH S-Beam Load Cell

The ANYLOAD 101AH is a nickel-plated alloy steel S-beam load cell designed for accurate tension and compression force measurement. It is offered in seven capacities from 1 kg to 30 kg, with a rated output of 2.0 mV/V and a tightly controlled zero balance. Nonlinearity, repeatability, and hysteresis error are all held very low, and creep over 30 minutes is minimal. This makes the 101AH a dependable choice for engineers and OEM designers building precision low-capacity weighing and force measurement into their equipment. The load cell is environmentally sealed to IP65 and withstands a safe overload of 150% and a breaking overload of 300% of full scale.

Installation is straightforward. The 101AH uses M6 threaded mounting holes, and the dimensional drawing and table give every critical measurement in both millimeters and inches. The standard cable is 5.1 mm in diameter and 3 meters long, with a clear color code: red for excitation positive, black for excitation negative, green for signal positive, white for signal negative, and a bare shield wire. The datasheet also documents input and output resistance, recommended excitation of 10 V (15 V maximum), insulation resistance, and the compensated temperature range of -10°C to 50°C (14°F to 122°F). The part number table lists deflection and approximate weight for each capacity, so you can specify and wire the 101AH without guesswork.

The 101AH is RoHS compliant, and ATEX, FM, and IECEx approved versions are available under the “-Ex” suffix for hazardous-area requirements. Seven clearly defined part numbers, from 101AH-1kg through 101AH-30kg, let dealers, service technicians, and procurement teams identify and order the exact capacity they need quickly.

See more

- +

Features

  • Material: Alloy steel
  • Rated Capacities: 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP65
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request

Specifications

Rated Capacities 1kg, 2kg, 3kg, 5kg, 10kg, 20kg, 30kg
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally Sealed
IP Rating IP65
CRRT Fluid Bag Weighing

CRRT Fluid Bag Weighing

Medical Industry

Continuous renal replacement therapy, also known as CRRT or CKRT, removes fluid and waste products from critically ill patients over an extended treatment period, typically in intensive care settings where patients are hemodynamically unstable and cannot tolerate intermittent dialysis. Fresh dialysate or replacement solution is supplied from hanging bags, while filtrate or effluent is collected in separate bags, allowing the system to maintain a controlled and continuous exchange of fluids and solutes.
