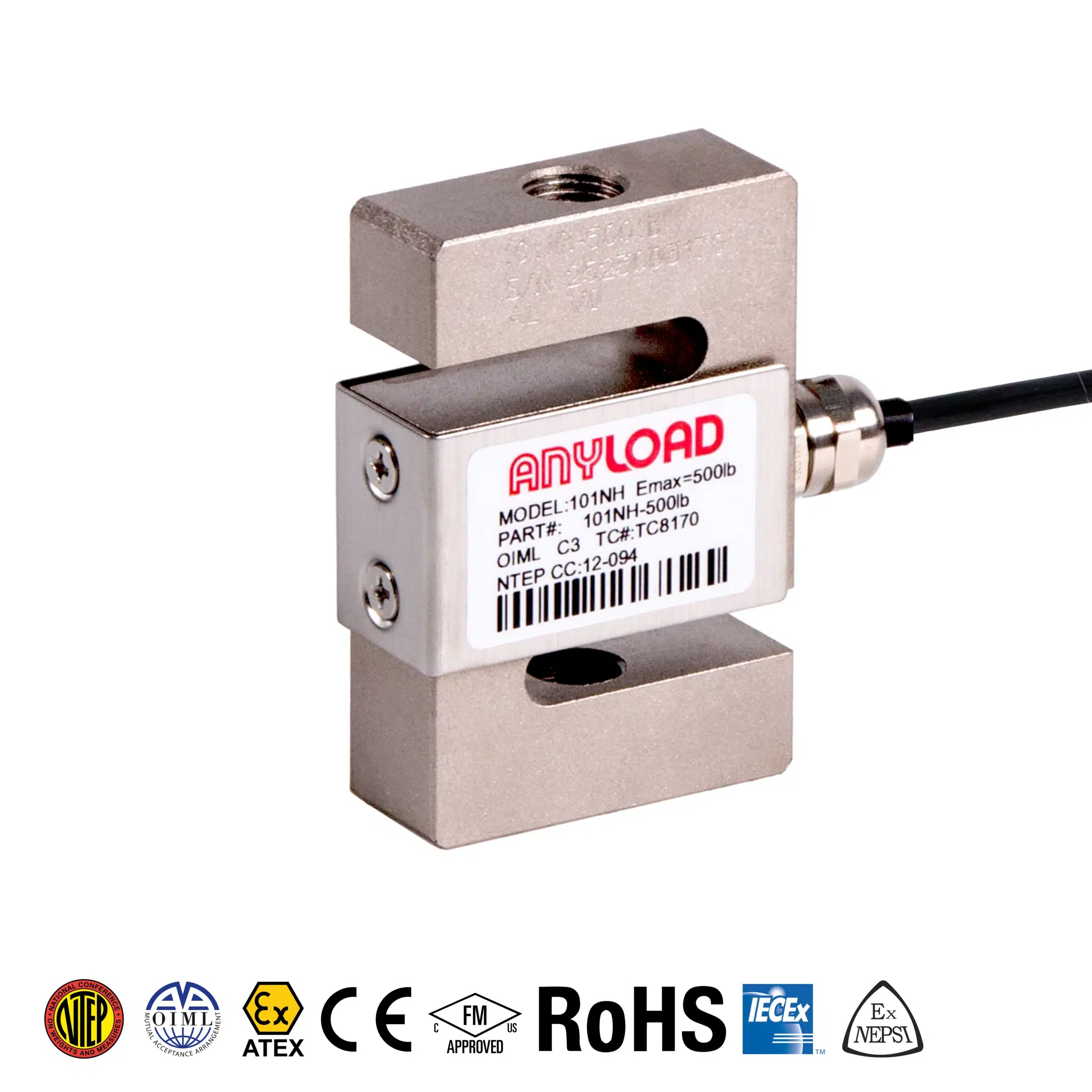

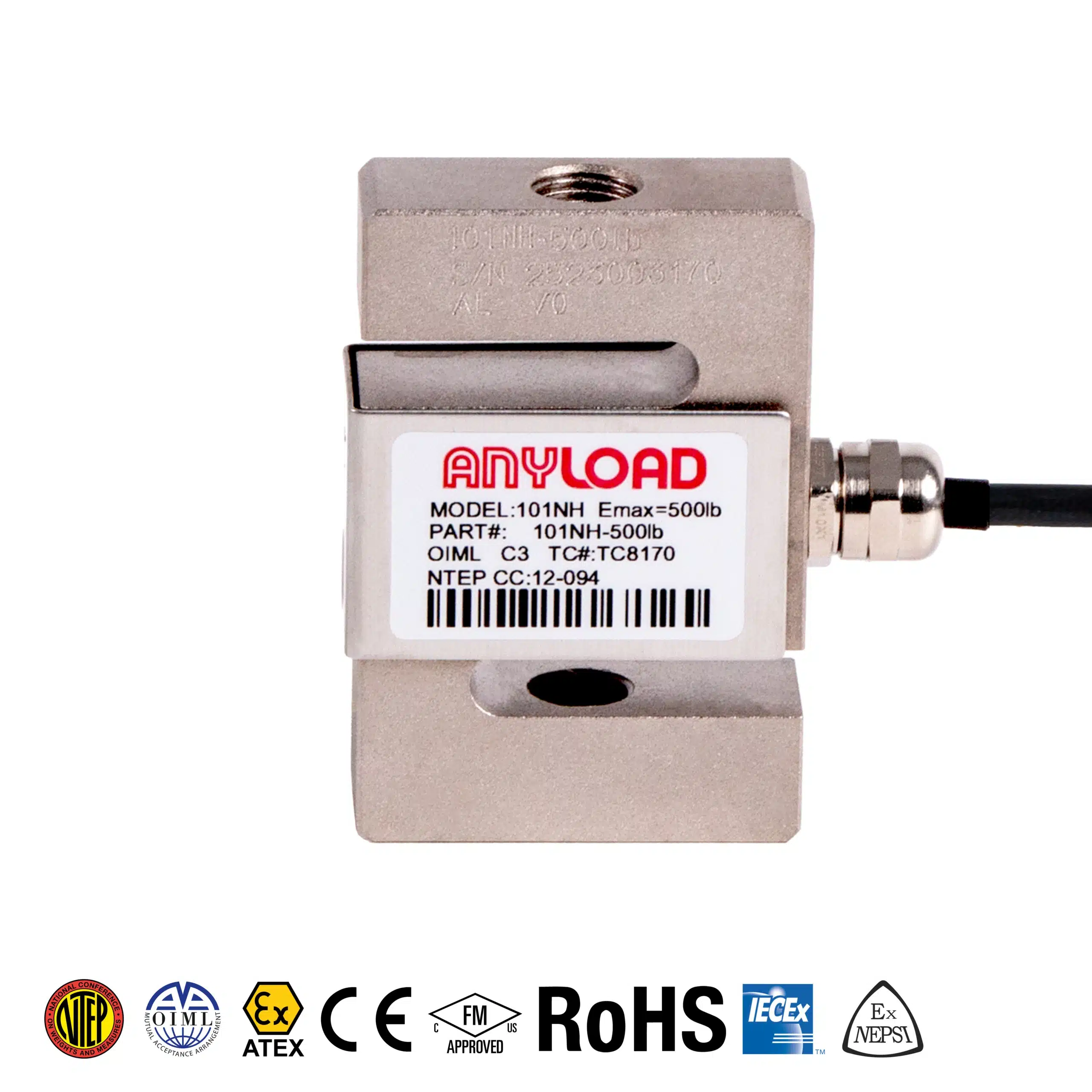

101NH S-Beam Load Cell, Alloy Steel, Environmentally Sealed, IP67

101NH S-Beam Load Cell

Description:

The 101NH S-beam is an OIML C3/C4.5 and NTEP-approved S-beam suited to a wide variety of applications due to its simplicity, ease of installation, and overall reliability. Threaded mounting holes allow easy mounting to most fixtures. This IP67 water-resistant S-beam is also interchangeable with Rice Lake RL20000, Revere 363, Coti Global CGSB / CSGB-1, and more (see: INTERCHANGEABLE tab). This versatile design is popular in a wide range of applications, including tank, process weighing, hoppers, and countless other force measurement and tension weighing needs.

Features:

  • Material: Alloy steel
  • Rated Capacities: 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
  • Full Scale Output: 3mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
  • NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
  • OIML MAA C3, Y=17 000 certified from 200kg-1.5t
  • OIML MAA C4.5, Y=14 000 certified from 2t-10t
  • CE, RoHS and Ex certified
Clear
Product Enquiry
SKU: N/A Categories: , Tag:
Rated Capacities 50lb, 100lb, 200lb, 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
Full Scale Output 3.0mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 350Ω ± 7Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- 101NH-(50-500)lb

pdf- 101NH-(750-10000)lb

pdf- 101NH-(15-20)klb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Coti Global CGSB / CSGB-1
Rice Lake RL20000
Rice Lake RL20001
Vishay Celtron STC
Vishay Revere Transducers 363
Vishay Sensortronics 60001

Please refer to load cell's data sheet for the complete details.
