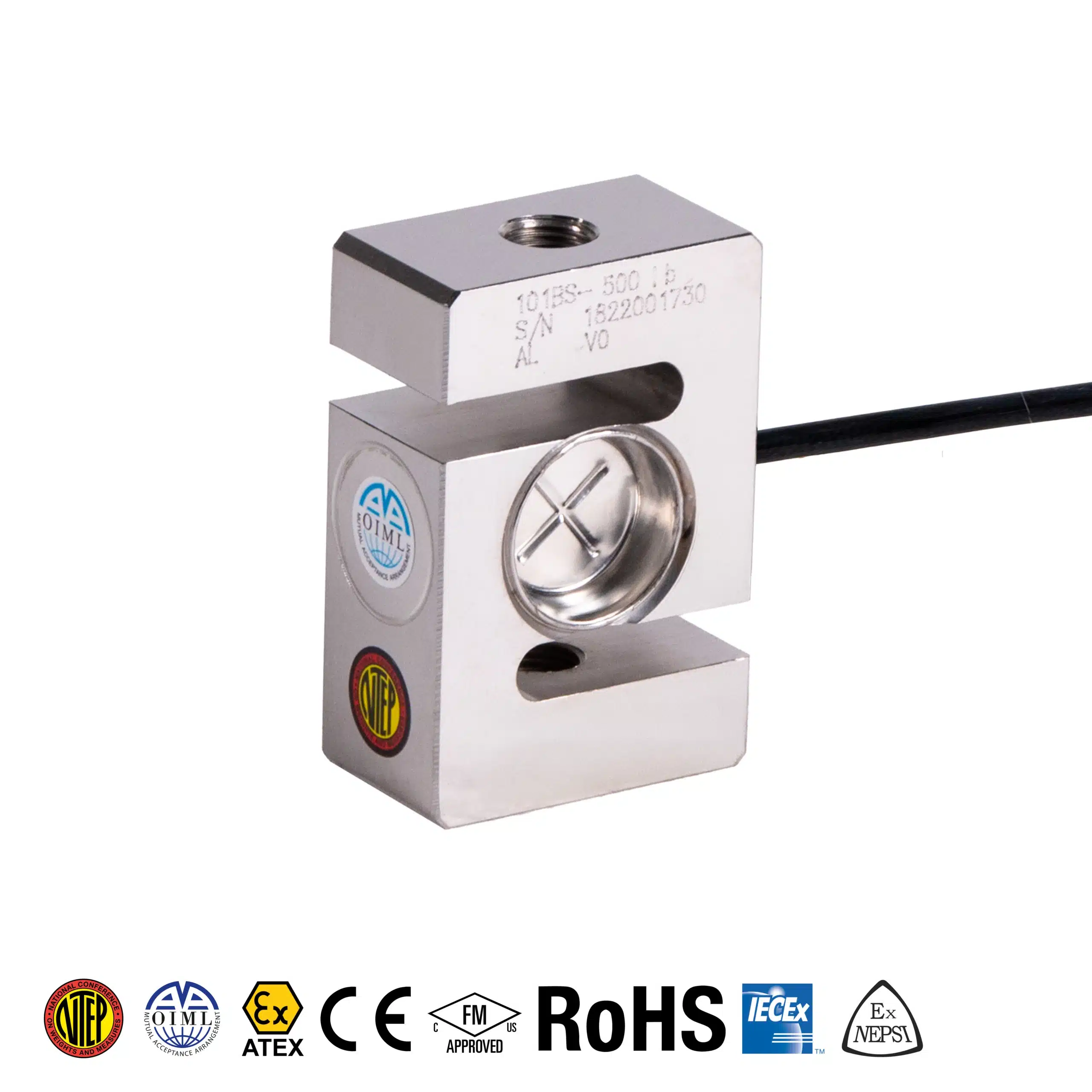

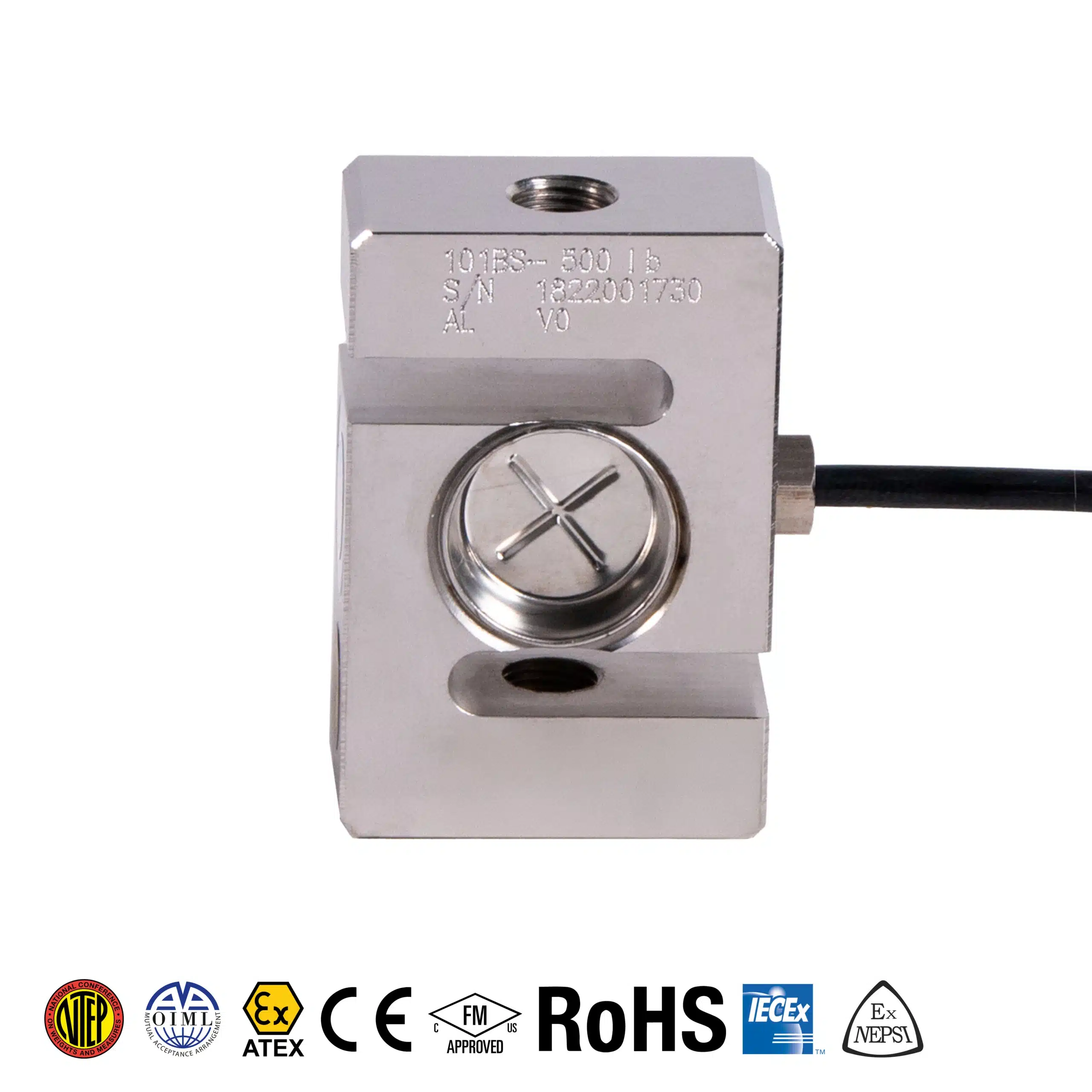

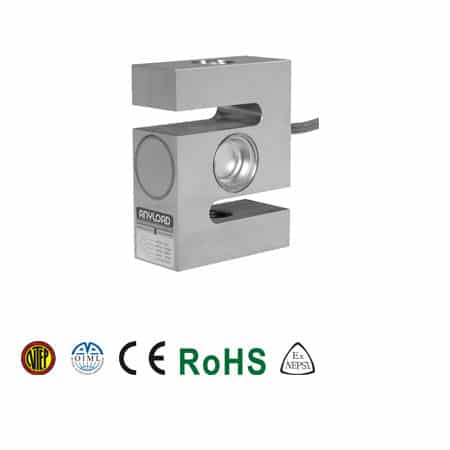

101BS S-Beam Load Cell

Description:

The 101BS is a tough S-beam with OIML C3/C4.5 and NTEP approvals. The heavy-duty stainless steel IP68 corrosion and water-resistant construction make this S-beam ideal for washdown applications with hostile environments such as in the chemical, food processing, and pharmaceutical industries. Common applications include hopper weighing, level checking, process weighing, etc. The 101BS is interchangeable with Vishay Sensortronics 60063, Rice Lake RL20001HE, Coti Global CGSB-SS, and more (see: INTERCHANGEABLE tab).

Features:

  • Material: Stainless steel
  • Rated Capacities: 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
  • NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
  • OIML MAA C3, Y=17 000 certified from 200kg-1.5t
  • MAA C4.5, Y=14 000 certified from 2t-10t
  • CE, RoHS and Ex certified
Rated Capacities 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb, 300kg, 500kg, 1t, 2t, 3t, 5t, 10t
Full Scale Output 2mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.030%
Hysteresis Error < ± 0.030%
Creep in 30 minutes < ± 0.030%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 101BS-(300-3000)kg

pdf- 101BS-(500-5000)lb

pdf- 101BS-(5-10)t

pdf- 101BS-(10-20)klb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity



Manufacturer Model
Coti Global CGSB-SSW
Flintec ULB
HBM RSC*
Rice Lake RL20001HE
Vishay Celtron STC HSS
Vishay Sensortronics 60063
Vishay Tedea-Huntleigh 616**
Vishay Tedea-Huntleigh 620



* Glue sealed
**Vishay Tedea-Huntleigh 616 is interchangeable with ANYLOAD 101BSGS
